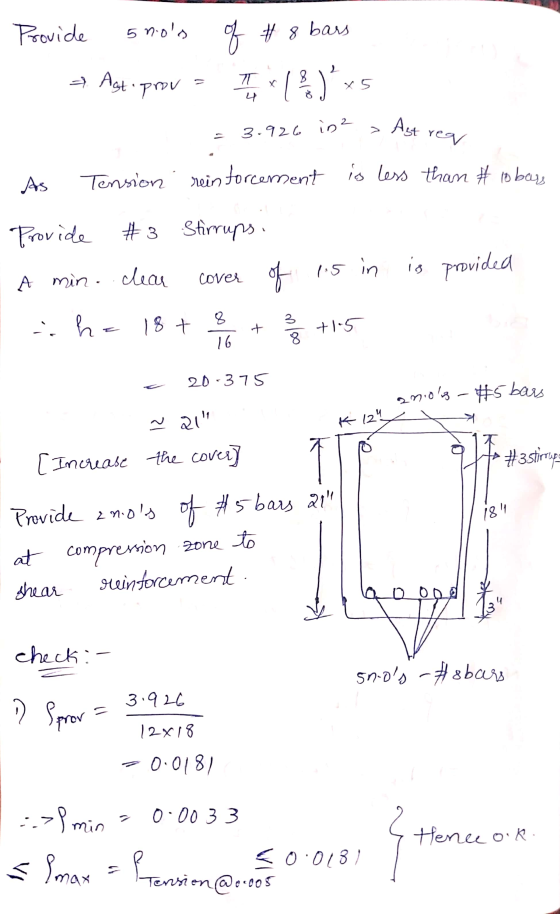

design a 20 ft long simply supported beam to resist dead load ( including self load)...

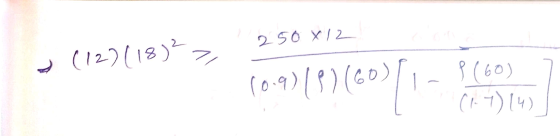

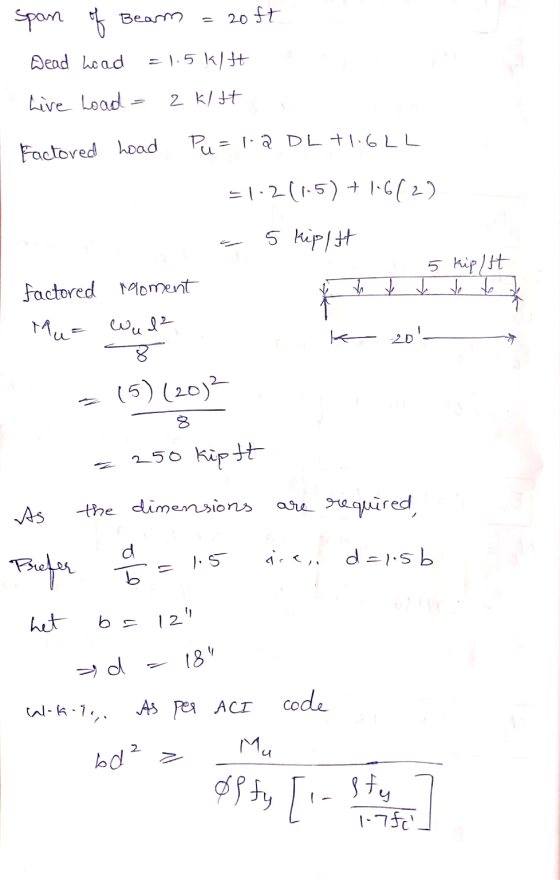

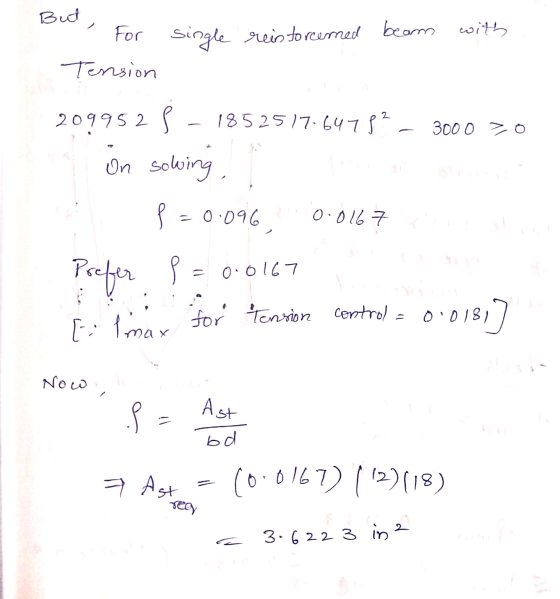

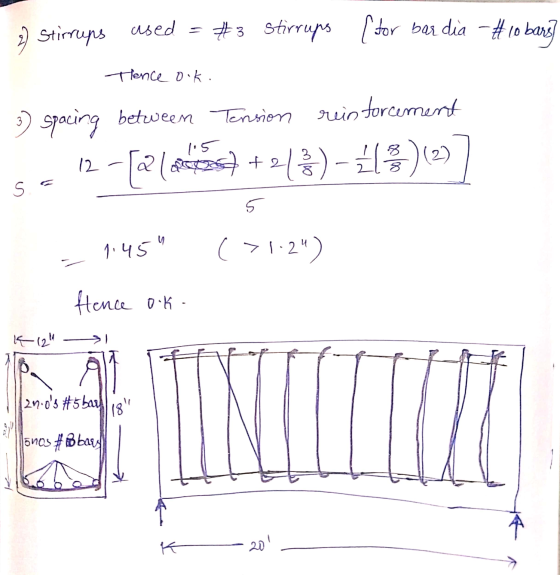

design a 20 ft long simply supported beam to resist dead load ( including self load) of 1.5 k/ft and live load of 2k/ft take fc' = 4 ksi, and fy= 60ksi using ACI code plz.
Homework Answers
Add Answer to:
design a 20 ft long simply supported beam to resist
dead load ( including self load)...
For the simply supported beam shown, the span is 40 ft, dead load including own weight...
For the simply supported beam shown, the span is 40 ft, dead load including own weight is 5 k/ft and live load is 4 k/ft. Assume fy-60,000 psi and fc 4000 psi, find: Size of the longitudinal reinforcement at the critical section (5 points) Spacing of U stirrups # 4 at the critical section (support width is 12 in.) (5 points) a. b. 48" 26.5" As 16
Find the design shear load for the following simply supported beam if the dead loads (include...
Find the design shear load for the following simply supported beam if the dead loads (include beam weights) is 1 k/ft and live load 2 k/ft., span length 35 ft. your answer should be in kips. span
Design a rectangular simple supported beam to carry service loads of 1.05 kips/ft of dead load...
Design a rectangular simple supported beam to carry service loads of 1.05 kips/ft of dead load (DL) (self-weight included) and 2.47kip/ft live load (LL) on a span length of 18 ft. The beam is limited to be (due to architectural reasons) 10” wide with an overall depth of 20”. Use f’c= 3,000 psi and fy= 40,000psi. Design the longitudinal reinforcement (flexure design) and the web reinforcement (Stirrups).
Design a rectangular simple supported beam to carry service loads of 1.05 kips/ft of dead load...
Design a rectangular simple supported beam to carry service loads of 1.05 kips/ft of dead load (DL) (self-weight included) and 2.47kip/ft live load (LL) on a span length of 18 ft. The beam is limited to be (due to architectural reasons) 10” wide with an overall depth of 20”. Use f’c= 3,000 psi and fy=40,000psi. Design the longitudinal reinforcement (flexure design) and the web reinforcement (Stirrups).
A rectangular, tension-reinforced beam is to be designed for dead load of 500 Ib/ft plus self...
A rectangular, tension-reinforced beam is to be designed for dead load of 500 Ib/ft plus self weight and service live load of 1200 Ib/ft, with a 22 ft simple span. Material strengths will be fy 60 ksi and J 16 in. Calculate the required beam width and tensile steel requirement, using a reinforcement ratio of 0.60po.o0s. Use ACI load factors and strength reduction factors. The effective depth may be assumed to be 2.5 in. less than the total depth steel...
The T-beam shown in Figure 1 supports the un-factored dead load of 1.4 kips/ft and live...
The T-beam shown in Figure 1 supports the un-factored dead load
of 1.4 kips/ft and live load of 1.5 kips/ft. The dead load does not
include the self-weight of the beam. The material properties are as
follows: fc’=3000 psi; fy=60,000 psi. Design the shear
reinforcement (stirrups). Plot the stirrups distribution along the
span of the beam.
DL= 1.4 kips/ft ; L2=1.5 kips/Ft * 75 Sz=7 X * b=3616. hr-6in k ) انا امه hw-lain + * bw=12 in
Select reinforcement for the T-beams in the simply-supported floor system shown below. The system is 26-foot-long...
Select reinforcement for the T-beams in the simply-supported floor system shown below. The system is 26-foot-long and subjected to its own self-weight and a service live load of 200 psf. Take the compressive strength of the concrete to be fe' = 3 ksi and the yield stress of the rebar to be fy = 60 ksi. Show a sketch of the designed cross-section, including beam dimensions and reinforcement selection. Limit your reinforcement selection to one that incorporates a single layer...
For the simply supported beam that follows. Size and space the stirrups according to the ACI code...
For the simply supported beam that follows. Size and space the stirrups according to the ACI code using the simplified method. Assume a constant Vc method with f'c 4,000 Psi. and Fy 60,000 psi. the beam has a 20-foot span that has a 6 inch length resting on each pier. Let b= 18 inches, d= 22 inches. The live load is 2 KLF and the dead load is 1.6 KLF which includes the beam weight.
For the simply supported beam...
An elevation of a concrete frame is shown below. A superimposed dead load of 200 lb/ft and a live load of 600 lb/ft are to be supported in addition to the beam self-weight. The beam's cross-...
An elevation of a concrete frame is shown below. A superimposed dead load of 200 lb/ft and a live load of 600 lb/ft are to be supported in addition to the beam self-weight. The beam's cross- section is shown as well. The weight density of reinforced concrete is 150 lbs/eu. ft. Use 1.2D+1.6L as your load combination. Use ACI moment coefficients and statics, as appropriate, to provide the Mu values for points A, B, C, and D. 48 5" 15"...
Q3) A simply supported beam is subjected to a uniform service dead load of 2.3 kips/ft...
Q3) A simply supported beam is subjected to a uniform service dead load of 2.3 kips/ft (excluding the weight of the beam), a uniform service live load of 3.0 kips/ft. The beam is 30 feet long, and deflection not to exceed L/360. The beam has continuous lateral support, and A992 steel is used. Is a W27 x 84 adequate?
For the simply supported beam shown, the span is 40 ft, dead load including own weight is 5 k/ft and live load is 4 k/ft. Assume fy-60,000 psi and fc 4000 psi, find: Size of the longitudinal reinforcement at the critical section (5 points) Spacing of U stirrups # 4 at the critical section (support width is 12 in.) (5 points) a. b. 48" 26.5" As 16
Find the design shear load for the following simply supported beam if the dead loads (include beam weights) is 1 k/ft and live load 2 k/ft., span length 35 ft. your answer should be in kips. span
Design a rectangular simple supported beam to carry service loads of 1.05 kips/ft of dead load (DL) (self-weight included) and 2.47kip/ft live load (LL) on a span length of 18 ft. The beam is limited to be (due to architectural reasons) 10” wide with an overall depth of 20”. Use f’c= 3,000 psi and fy=40,000psi. Design the longitudinal reinforcement (flexure design) and the web reinforcement (Stirrups).
A rectangular, tension-reinforced beam is to be designed for dead load of 500 Ib/ft plus self weight and service live load of 1200 Ib/ft, with a 22 ft simple span. Material strengths will be fy 60 ksi and J 16 in. Calculate the required beam width and tensile steel requirement, using a reinforcement ratio of 0.60po.o0s. Use ACI load factors and strength reduction factors. The effective depth may be assumed to be 2.5 in. less than the total depth steel...
The T-beam shown in Figure 1 supports the un-factored dead load
of 1.4 kips/ft and live load of 1.5 kips/ft. The dead load does not
include the self-weight of the beam. The material properties are as
follows: fc’=3000 psi; fy=60,000 psi. Design the shear
reinforcement (stirrups). Plot the stirrups distribution along the
span of the beam.
DL= 1.4 kips/ft ; L2=1.5 kips/Ft * 75 Sz=7 X * b=3616. hr-6in k ) انا امه hw-lain + * bw=12 in
Select reinforcement for the T-beams in the simply-supported floor system shown below. The system is 26-foot-long and subjected to its own self-weight and a service live load of 200 psf. Take the compressive strength of the concrete to be fe' = 3 ksi and the yield stress of the rebar to be fy = 60 ksi. Show a sketch of the designed cross-section, including beam dimensions and reinforcement selection. Limit your reinforcement selection to one that incorporates a single layer...
For the simply supported beam that follows. Size and space the stirrups according to the ACI code using the simplified method. Assume a constant Vc method with f'c 4,000 Psi. and Fy 60,000 psi. the beam has a 20-foot span that has a 6 inch length resting on each pier. Let b= 18 inches, d= 22 inches. The live load is 2 KLF and the dead load is 1.6 KLF which includes the beam weight.
For the simply supported beam...
An elevation of a concrete frame is shown below. A superimposed dead load of 200 lb/ft and a live load of 600 lb/ft are to be supported in addition to the beam self-weight. The beam's cross- section is shown as well. The weight density of reinforced concrete is 150 lbs/eu. ft. Use 1.2D+1.6L as your load combination. Use ACI moment coefficients and statics, as appropriate, to provide the Mu values for points A, B, C, and D. 48 5" 15"...
Q3) A simply supported beam is subjected to a uniform service dead load of 2.3 kips/ft (excluding the weight of the beam), a uniform service live load of 3.0 kips/ft. The beam is 30 feet long, and deflection not to exceed L/360. The beam has continuous lateral support, and A992 steel is used. Is a W27 x 84 adequate?
