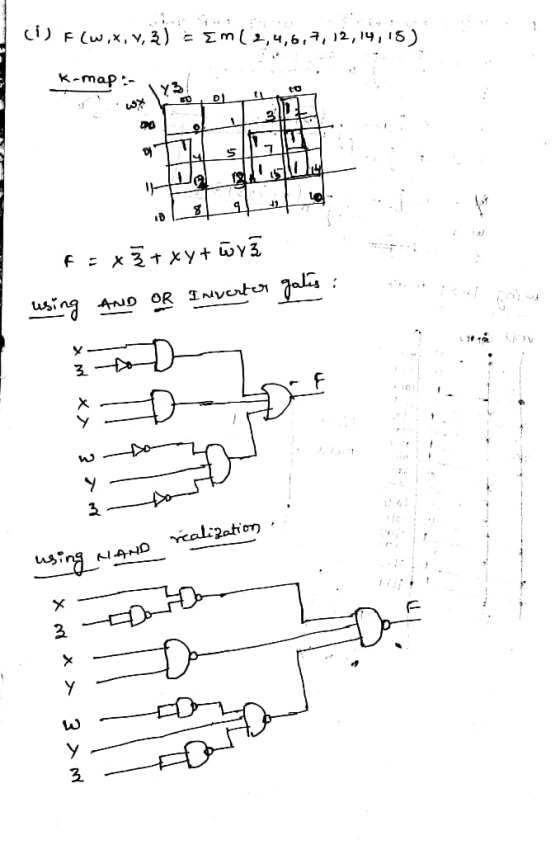

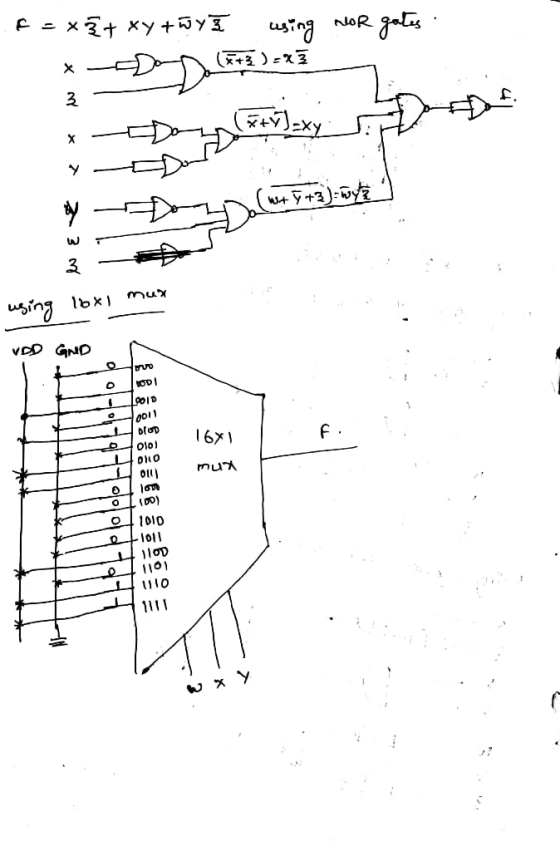

Find 8 different 2-level minimized circuits to realize each of the following functions. 1. F(W,X,Y,Z) = ∑m (2,4,6,7,12,14,15)

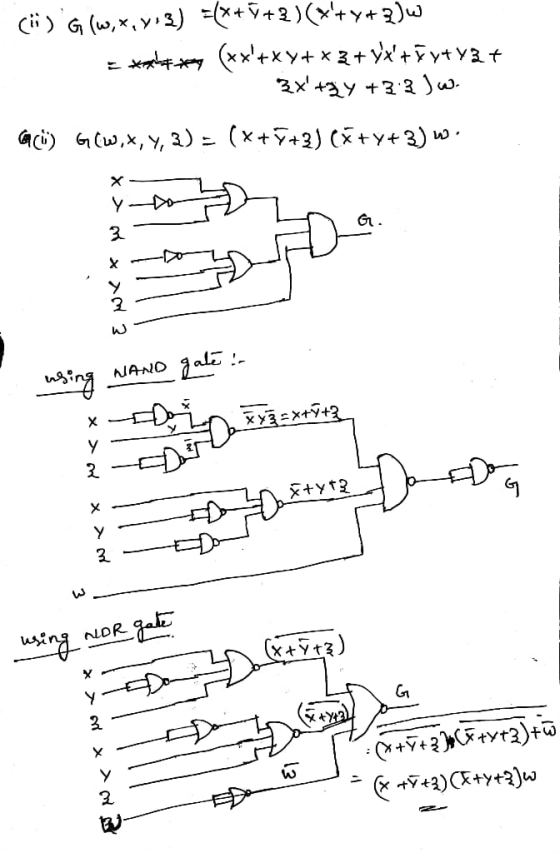

2. G(W,X,Y,Z) = (X + Y’ + Z) (X’ + Y + Z) W

• Using algebraic techniques

• Using network conversion

engineering Electrical-Engineering

Answer 1

Answer #1

Answer 2
