Hi, can somebody please explain me how to determine rotation axis Cn and how to find...

Question

Question

Hi, can somebody please explain me how to determine rotation axis Cn and how to find mirror plane Sigma h, Sigma V , Sigma D, for any molecule?

science chemistry

Answer 1

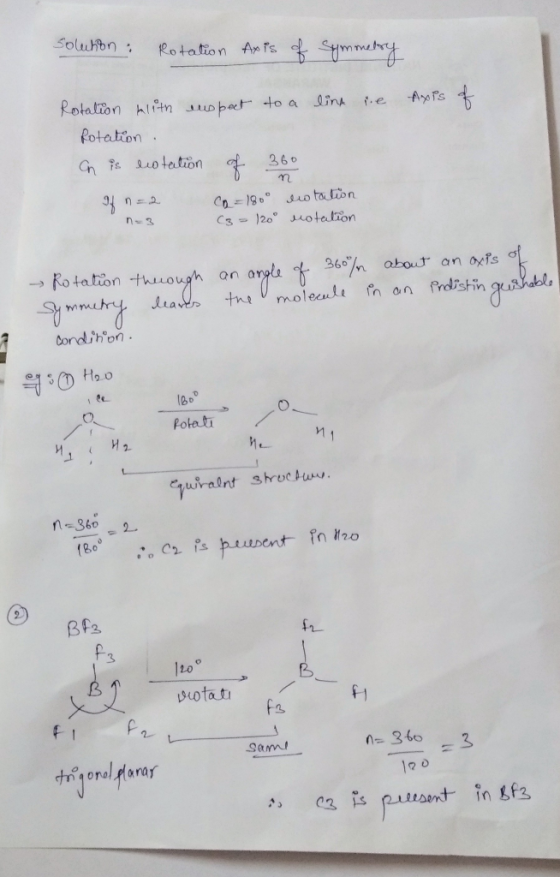

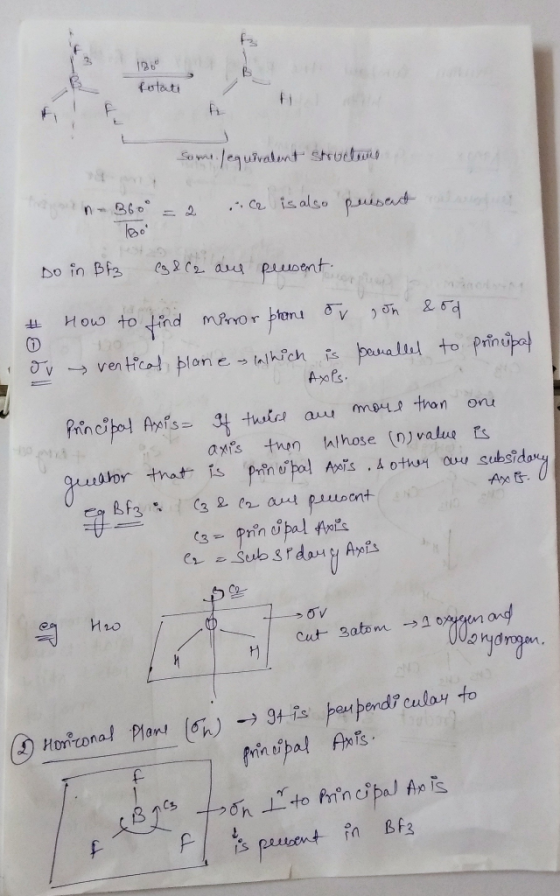

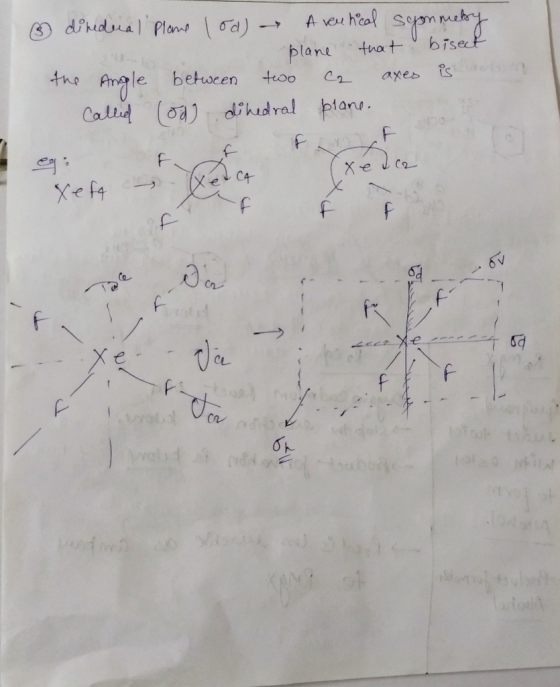

Answer #1

Answer 2
