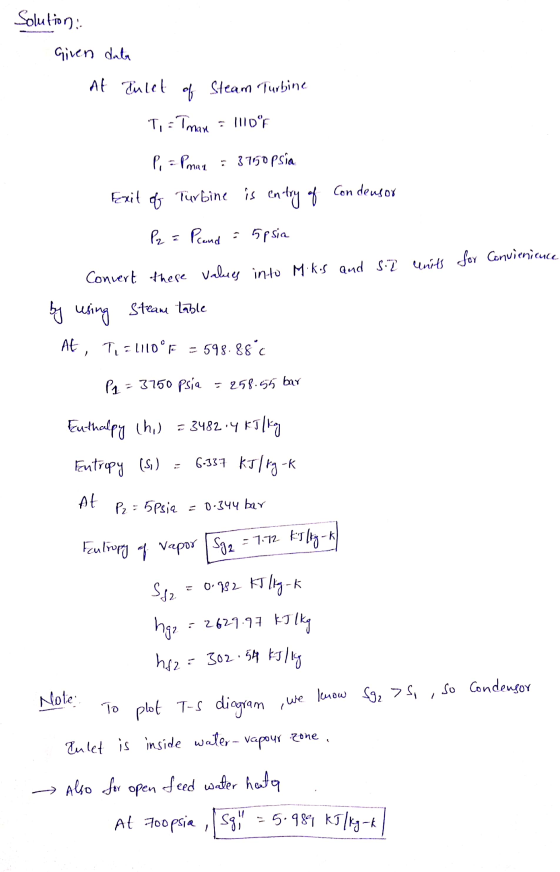

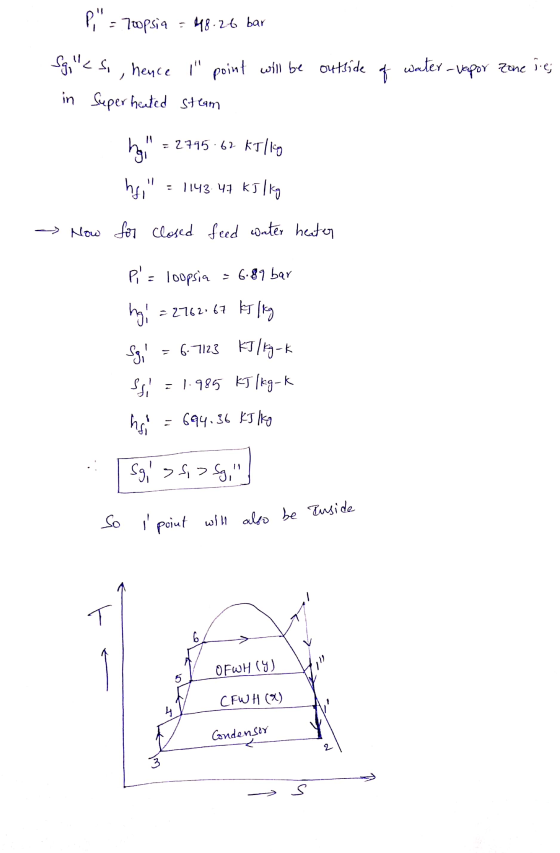

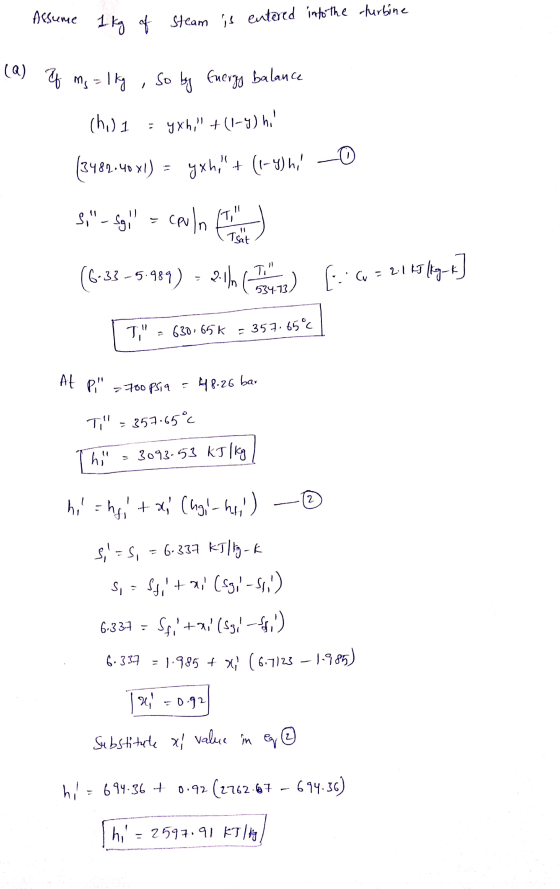

A steam power plant operates with a maximum pressure of 3750 psia, maximum temperature of 1110...
- A steam power plant operates with a maximum pressure of 3750 psia, maximum temperature of 1110 oF, and condenser pressure of 5 psia. There is a closed feedwater heater with stream extraction pressure of 100 psia with throttled condensate, and an open feedwater heater at a pressure of 700 psia. Assume isentropic turbomachinery.
Determine

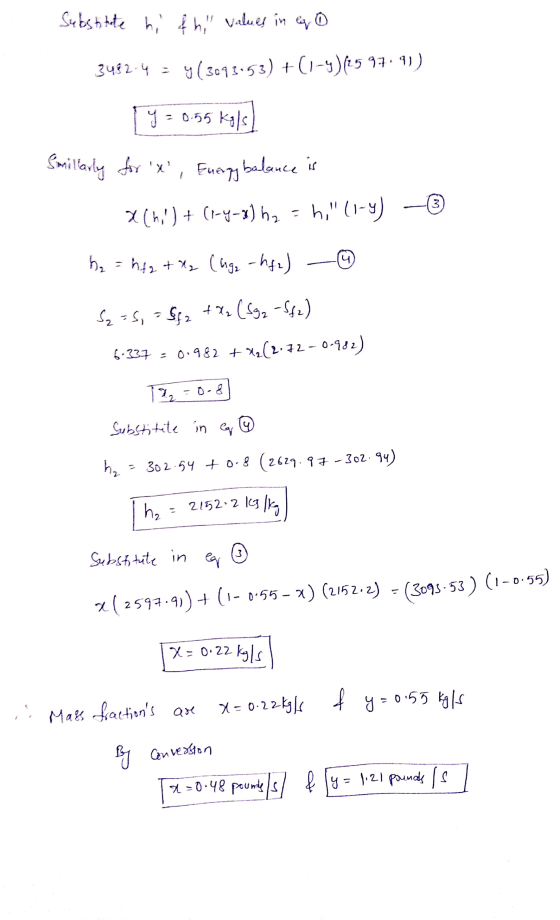

- Determine the mass fraction of steam extracted for each feedwater heater.

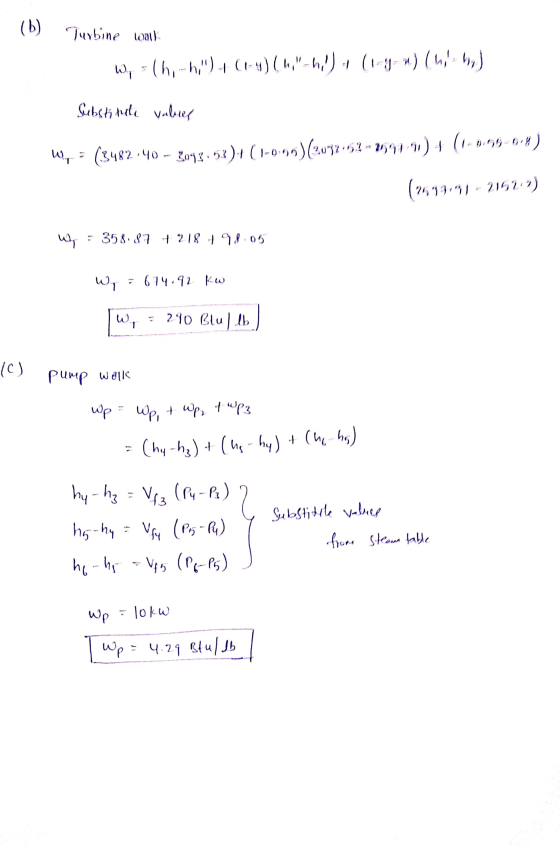

- Turbine work in Btu/lb
- Pump work in Btu/lb

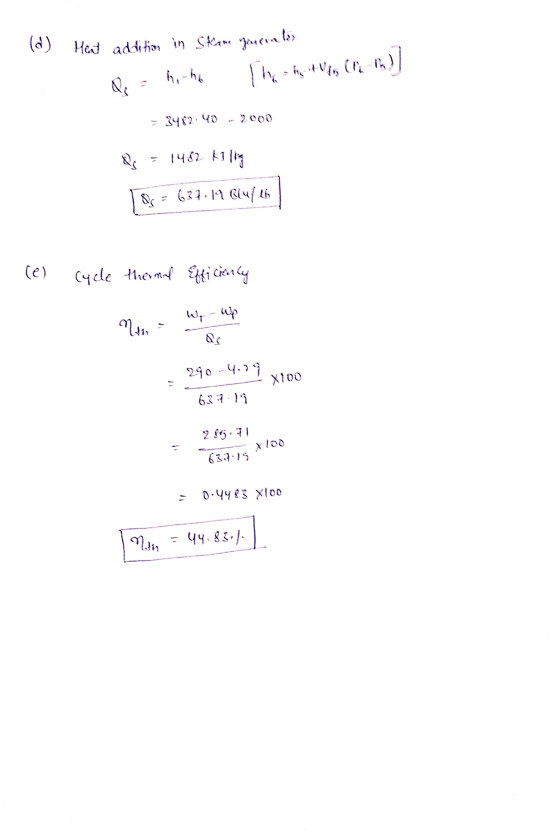

- Heat addition in steam generator in Btu/lb
- Cycle thermal efficiency
