A 1500 kg truck 6.0 m long has the center of mass 0.75 m from the...

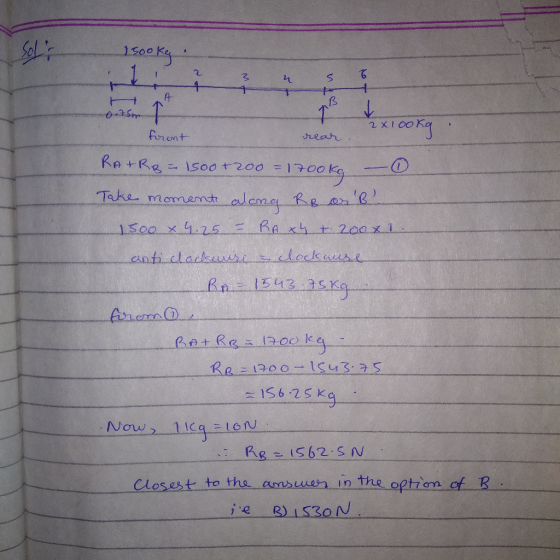

A 1500 kg truck 6.0 m long has the center of mass 0.75 m from the front. If two 100 kg men stand on the rear bumper, what is the weight on the rear wheels? (wheels 1.0 m from each end) A) 1370 N B) 1530 N C) 1720 N D) 1840 N
Homework Answers
Add Answer to:
A 1500 kg truck 6.0 m long has the center of mass 0.75 m from
the...
Please give the reasoning for this. ajoOgg men Mg o 0,5 V 3.5 6. A 1500...
Please give the reasoning for this.
ajoOgg men Mg o 0,5 V 3.5 6. A 1500 kg truck 4.0 m long has the center of mass 1.0 m from the front. If two 100 kg men stand on the rear bumper, what is the weight on the rear wheels? (wheels 0.5 m from each end) a) 2688 N b) 3976 N c) 4297 N. 4 _t Rear wheels Front d) 4737 N e) 5192 N. wheels
The sports car has a mass of 1500 kg and a center of mass at G. Determine the shortest time it ta...
The sports car has a mass of 1500 kg and a center of mass at G. Determine the shortest time it takes for it to reach a speed of 20 m/s, starting from rest, if the engine only drives the rear wheels, whereas the front wheels are free rolling. The coefficient of friction between the wheels and road is μ 0.2. Neglect the mass of the wheels for the calculation 0.35m 0,33m ZTUrt22.27 g-ru, al. iat 4 k's /ldi suk....
a) A uniform plank 8.00 m in length with mass 50.0 kg is supported at two...
a) A uniform plank 8.00 m in length with mass 50.0 kg is supported at two points located 1.00 m and 5.00 m, respectively, from the left-hand end. What is the maximum additional mass you could place on the right-hand end of the plank and have the plank still be at rest? b) The rear wheels of a truck support 57.0 % of the weight of the truck, while the front wheels support 43.0 % of the weight. The center...
QUESTION 3 The 1500-kg rear driving truck reaches a speed of 50 km/h from rest in...
QUESTION 3 The 1500-kg rear driving truck reaches a speed of 50 km/h from rest in a distance of 60 m up the 10-percent incline with constant acceleration. Calculate the normal force under each pair of wheels and the effective coefficient of friction between the tires and the road during this motion (Hints: the driving force from the friction of the rear wheels, not from front wheels). (20 marks) 600 mm 1500 mm 1500 mm 10
QUESTION 3 The 1500-kg...
1769 1.65m A 19600 N pickup truck has a wheelbase of 3 m and a center...
1769 1.65m A 19600 N pickup truck has a wheelbase of 3 m and a center of mass 1.65 m from the rear axle. A box weighing 3600 N is placed in the truck bed, its c.g. 0.9 m behind the rear axle. NOTES IMAGES DISCUSS UNITS STATS HELP Part Description Answer Chk History The force on the front wheels is: 1. 7740 N 2. 9700 N 3. 11600N 4. 11900 N 5. 18500 N 6. 29100 N A. 6.67...
17-87. The tractor has a mass of 900 kg, excluding the rear wheels. The mass center is located at G. Each of the rear wheels has a mass of 50 kg and a radius of gyration A-0.7 m. If the tractor c...
17-87. The tractor has a mass of 900 kg, excluding the rear wheels. The mass center is located at G. Each of the rear wheels has a mass of 50 kg and a radius of gyration A-0.7 m. If the tractor coasts freely down the 10° slope, determine its velocity when -5s starting from rest. For the calculation, neglect the mass of the front wheels B and the effects of friction at these wheels. The rear wheels roll without slipping...
4.2 A 2800-kg forkdift truck is used to lift a 1500-kg crate. Determine the reaction at...
4.2 A 2800-kg forkdift truck is used to lift a 1500-kg crate. Determine the reaction at each of the two (a) front wheels A, (b) rear wheels B. -0.4m0 .6 m Fig. P4.2 il bam U rted hy
Planar Kinetics of a rigid body- Translation Q5: The dragster has a mass of 1500 kg...
Planar Kinetics of a rigid body- Translation Q5: The dragster has a mass of 1500 kg and a centre of mass at G. If no slipping occurs. Neglect the mass of the wheels and assume that the front wheels are free to roll. a. Determine the frictional force Fa which must be developed at each of the rear drive wheels B in order to create an acceleration of a m/s. 6 b. What are the normal reactions of each wheel...
Question B3 The rear drive sports car shown in Fig. B3 has a mass of 1500...
Question B3 The rear drive sports car shown in Fig. B3 has a mass of 1500 kg and a centre of mass at G. The coefficient of static friction between the wheels and the road is s0.2 a) Draw a free body diagram for the car. [6 marks b) Determine the shortest time it takes for it to reach a speed of 80 km/h, starting from rest, assuming the front wheels are free rolling. Neglect the mass of the wheels...
An automobile with a mass of 1380.00 kg has 3.29 m between the front and rear...
An automobile with a mass of 1380.00 kg has 3.29 m between the front and rear axles. Its center of gravity is located 0.546 m behind the front axle. With the automobile on level ground, determine the magnitude of the force from the ground on (a) each front wheel (assuming equal forces on the front wheels) and (b) each rear wheel (assuming equal forces on the rear wheels). (a) Number Units (b) Number Units
Please give the reasoning for this.
ajoOgg men Mg o 0,5 V 3.5 6. A 1500 kg truck 4.0 m long has the center of mass 1.0 m from the front. If two 100 kg men stand on the rear bumper, what is the weight on the rear wheels? (wheels 0.5 m from each end) a) 2688 N b) 3976 N c) 4297 N. 4 _t Rear wheels Front d) 4737 N e) 5192 N. wheels
The sports car has a mass of 1500 kg and a center of mass at G. Determine the shortest time it takes for it to reach a speed of 20 m/s, starting from rest, if the engine only drives the rear wheels, whereas the front wheels are free rolling. The coefficient of friction between the wheels and road is μ 0.2. Neglect the mass of the wheels for the calculation 0.35m 0,33m ZTUrt22.27 g-ru, al. iat 4 k's /ldi suk....
QUESTION 3 The 1500-kg rear driving truck reaches a speed of 50 km/h from rest in a distance of 60 m up the 10-percent incline with constant acceleration. Calculate the normal force under each pair of wheels and the effective coefficient of friction between the tires and the road during this motion (Hints: the driving force from the friction of the rear wheels, not from front wheels). (20 marks) 600 mm 1500 mm 1500 mm 10
QUESTION 3 The 1500-kg...
1769 1.65m A 19600 N pickup truck has a wheelbase of 3 m and a center of mass 1.65 m from the rear axle. A box weighing 3600 N is placed in the truck bed, its c.g. 0.9 m behind the rear axle. NOTES IMAGES DISCUSS UNITS STATS HELP Part Description Answer Chk History The force on the front wheels is: 1. 7740 N 2. 9700 N 3. 11600N 4. 11900 N 5. 18500 N 6. 29100 N A. 6.67...
17-87. The tractor has a mass of 900 kg, excluding the rear wheels. The mass center is located at G. Each of the rear wheels has a mass of 50 kg and a radius of gyration A-0.7 m. If the tractor coasts freely down the 10° slope, determine its velocity when -5s starting from rest. For the calculation, neglect the mass of the front wheels B and the effects of friction at these wheels. The rear wheels roll without slipping...
4.2 A 2800-kg forkdift truck is used to lift a 1500-kg crate. Determine the reaction at each of the two (a) front wheels A, (b) rear wheels B. -0.4m0 .6 m Fig. P4.2 il bam U rted hy
Planar Kinetics of a rigid body- Translation Q5: The dragster has a mass of 1500 kg and a centre of mass at G. If no slipping occurs. Neglect the mass of the wheels and assume that the front wheels are free to roll. a. Determine the frictional force Fa which must be developed at each of the rear drive wheels B in order to create an acceleration of a m/s. 6 b. What are the normal reactions of each wheel...
Question B3 The rear drive sports car shown in Fig. B3 has a mass of 1500 kg and a centre of mass at G. The coefficient of static friction between the wheels and the road is s0.2 a) Draw a free body diagram for the car. [6 marks b) Determine the shortest time it takes for it to reach a speed of 80 km/h, starting from rest, assuming the front wheels are free rolling. Neglect the mass of the wheels...
An automobile with a mass of 1380.00 kg has 3.29 m between the front and rear axles. Its center of gravity is located 0.546 m behind the front axle. With the automobile on level ground, determine the magnitude of the force from the ground on (a) each front wheel (assuming equal forces on the front wheels) and (b) each rear wheel (assuming equal forces on the rear wheels). (a) Number Units (b) Number Units
