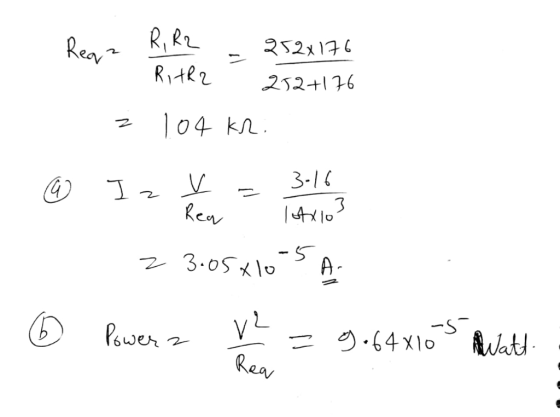

Draw a circuit diagram that has two resistors in parallel with a DC voltage source. If resistor one (R1) is 252 kohms and resistor two (R2) is 176 kohms, then what is the current flowing through the circuit if the voltage is 3.16 V? What is the power flowing through the circuit?
Draw a circuit diagram that has two resistors in parallel with a DC voltage source. If...
Review A circuit contains a source of constant voltage V and two resistors connected in parallel, as shown in (Figure 1). Resistor 1 has resistance R1, and resistor 2 has resistance R2. Part A Which two of the following statements are true? 1. The voltage source provides a constant voltage, a part of which, Vi, drops off across resistor 1, and the remainder, V2, across resistor 2. Hence V = V1 + V2. 2. The voltage drops V1 across resistor...
help
You are given a battery (DC power), two resistors (R1 and R2), one DC voltmeter and one DC ammeter. Draw a diagram for the two cases, clearly label the connections of the ammeter and voltmeter. R1 and R2 are connected in series. Use the voltmeter to measure the voltage of R1 and use the ammeter to measure the current. R1 and R2 are connected in parallel. Use the voltmeter to measure the voltage of R1 and use the ammeter...
A circuit consists of a power supply and two resistors R1 and R2 connected in parallel. An ammeter is placed to measure the current through resistor R1. The ammeter reads I1 = 8.9 mA, and the values of the resistors are R1 = 7.7 kOhm and R2 = 820 Ohm. What is the value of voltage across R2?
21.7- Resistors in Series and Parallel In the circuit below the voltage supplied by the battery is 24.0 V and the resistance of the resistors, R1, R2 and R3 are 4.0 Ω, 10.0 Ω and 24.0 Ω respectively what is the current through the resistor R? R1 R2 Ri Submit Answer Tries 0/10 What is the current through the resistor R2? Submit Answer Tries o/1o What is the current through the resistor R3? Submit Answer Tries 0/10
21.8- Resistors in Series and Parallel In the circuit below the voltage supplied by the battery is 12.0 V and the resistance of the resistors, R1, R2 and R3 are 6.00 Ω, 12.0 Ω and 18.0 Ω respectively, what is the power output of the resistor R1? R1 R2 R3 Submit Answer Tries 0/10 What is the power output of the resistor R2? Submit Answer Tries 0/10 What is the power output of the resistor R3? Submit Answer Tries 0/10
Using Matlab When several resistors are connected in an electrical circuit in parallel, the current through each of them is given by in=vs/Rnwhere in and Rn are the current through resistor n and its resistance, respectively, and vs is the source voltage. The equivalent resistance, Req, can be determined from the equation 1/Req=1/R1+1/R2+1/R3+.......+1/Rn. The source current is given by is , and the power, Pn, dissipated in each resistor is given by . is=vs/Req, and Pn=vsin. Write a program in...
Sketch a circuit diagram with a current source Is and two parallel resistors Ri and R2. Label the current through Ri as Ii and the current expression for the current Ii in terms of Is, RI, and R2. (C-2) Derive the mathematical expression for the current 12 in terms of Is, RI, and R2. through R2 as I2. (C-1) Derive the mathematical
The schematic shows a simple combination of resistors that is connected to a DC voltage source to form a complete circuit. I is the current flowing through the voltage source. The resistor and voltage numbers in the table are only the average values as specified by the manufacturer. The actual values can be anything within the tolerance range. Ri R2 Value Tolerance ± 5% R21 150Ω | ±10% R31 330 Ω | ±1090 R41 220 Ω | ±20% ± 5%...
Apply the following questions to both the circuit shown in
Figure (a) (resistors in series) and the circuit shown in Figure
(b) (resistors in parallel).
(a) Use Ohm's law with Kirchhoff's current and voltage laws to
derive equations for currents i1, i2 and
i (through Resistor R1, resistor R2, and
the voltage source , respectively) in terms of R1,
R2, and v.
(b) R1 and R2 can be interchanged with an
equivalent resistor rith resistance R without changing the
values...
2. (2000) Electromagnetics (DC Circuit) Problem a. Calculate the voltages across all resistors and the currents through all the resistors and voltage sources in the following circuit using Kirchhoff's junction rule (nodal analysis). Show the directions initially assumed for the junction (node) currents. Use the minimum number of junctions (nodes) necessary to accomplish this b. Calculate the power dissipation in each resistor and the sum (or total) of these individual power dissipation values c. Calculate the power associated with each...
