An oil drop whose mass is 2.6×10−15 kg is held at rest between two large plates...

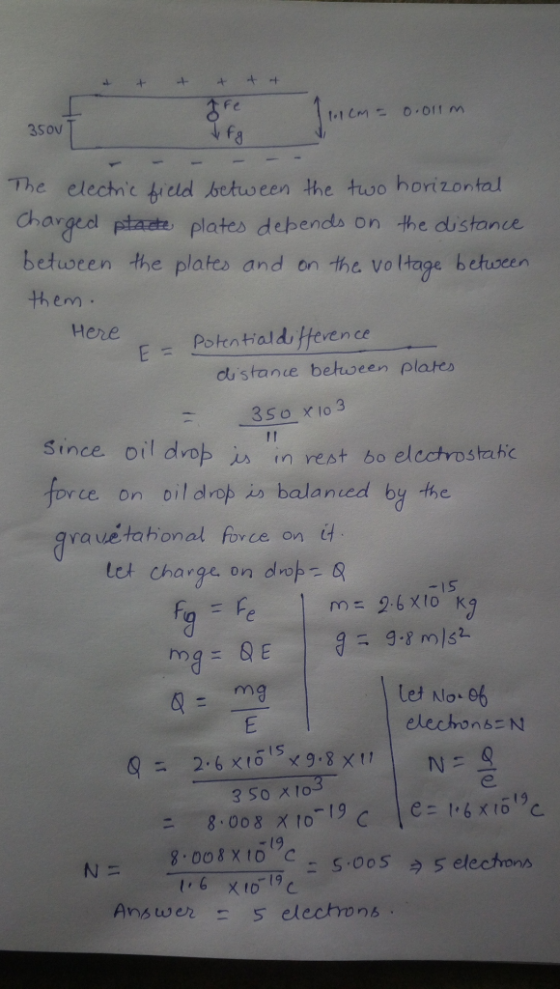

An oil drop whose mass is 2.6×10−15 kg is held at rest between two large plates separated by 1.1 cm (Figure 1) when the potential difference between the plates is 350 V .
How many excess electrons does this drop have?
Express your answer as an integer.
Homework Answers
Add Answer to:
An oil drop whose mass is 2.6×10−15 kg is held at rest between
two large plates...
In an oil-drop experiment a negatively charged oil drop has a mass of 3.0 x 10-15...
In an oil-drop experiment a negatively charged oil drop has a mass of 3.0 x 10-15 kg and is held at rest between two parallel plates separated by a distance of 2.0 cm. The potential difference between the plates is 460 V. a) On the diagram below, show all the applied forces on the drop. Do not include the buoyant force of the air on the oil drop. b) What is the strength of the electric field between the plates?...
An oil drop carrying seven excess electrons is suspended between two charged parallel plates. The plats...
An oil drop carrying seven excess electrons is suspended between two charged parallel plates. The plats are seperated by a distance of 2 cm, and there is a potential difference of 950 V between the plates. What is the sign of the charge on the lower plate? What is the weight of the suspended oil drop?
In Millikan’s oil-drop experiment, one looks at a small oil drop held motionless between two plates....
In Millikan’s oil-drop experiment, one looks at a small oil drop held motionless between two plates. Take the voltage between the plates to be 2033 V, and the plate separation to be 2.00 cm. The oil drop (of density 0.81 g/cm3) has a diameter of 4.7 x 10-6m. Find the charge on the drop, in terms of electron units. You need to round your answer to the nearest integer. Oil droplet
In Millikan’s oil-drop experiment, one looks at a small oil drop held motionless between two plates....
In Millikan’s oil-drop experiment, one looks at a small oil drop held motionless between two plates. Take the voltage between the plates to be 2033 V, and the plate separation to be 2.00 cm. The oil drop (of density 0.81 g/cm3) has a diameter of 4.3 x 10-6m. Find the charge on the drop, in terms of electron units. You need to round your answer to the nearest integer.
In Millikan's oil-drop experiment, one looks at a small oil drop held motionless between two plates....
In Millikan's oil-drop experiment, one looks at a small oil drop held motionless between two plates. Take the voltage between the plates to be 2003 V, and the plate separation to be 1.45 cm. The oil drop (of density 0.81 g/cm) has a diameter of 4.00 x 10m. Find the charge on the drop, in terms of electron units. x e 12.04
In Millikan's oil-drop experiment, one looks at a small oil drop held motionless between two plates. Take the...
In Millikan's oil-drop experiment, one looks at a small oil drop held motionless between two plates....
In Millikan's oil-drop experiment, one looks at a small oil drop held motionless between two plates. Take the voltage between the plates to be 2015 V, and the plate separation to be 1.98 cm. The oil drop (of density 0.810 g/cm3) has a diameter of 4.25 x 10-6 m. Find the charge (in C) on the drop. 2.508e-18 X What forces act on the oil-drop? How is the mass of the oil-drop related to the density of oil and the...
A negatively charged oil drop whose mass is 10-15 kg and whose charge is -6.4 10-19...
A negatively charged oil drop whose mass is 10-15 kg and
whose charge is -6.4 10-19 Coulombs remains stationary under the
influence of the Earth’s gravitational field and a uniform external
electric field made by two oppositely-charged parallel plates (see
diagram below). Ignore the influence of Earth’s electric field on
the oil drop.
Determine the magnitude and direction of the net
electric field created by the plates (not the electric field of the
oil drop !). Explain completely how you...
In Millikan's oil-drop experiment, one looks at a small oil drop held motionless between two plates....
In Millikan's oil-drop experiment, one looks at a small oil drop held motionless between two plates. Take the voltage between the plates to be 2240 V, and the plate separation to be 2.29 cm. The oil drop (of density 0.81 g/cm3) has a diameter of 4.00 ✕ 10−6 m. Find the charge on the drop, in terms of electron units.
In a particular Millikan oil-drop apparatus, the plates are 2.25 cm apart. The oil used has...
In a particular Millikan oil-drop apparatus, the plates are 2.25 cm apart. The oil used has a density of 0.830 g/cm3 , and the atomizer that sprays the oil drops produces drops of diameter 1.00×10−3 mm . A. What strength of electric field is needed to hold such a drop stationary against gravity if the drop contains five excess electrons? B. What should be the potential difference across the plates to produce this electric field? C. If another drop of...
In Millikan’s oil-drop experiment, one looks at a small oil drop held motionless between two plates....
In Millikan’s oil-drop experiment, one looks at a small oil drop held motionless between two plates. Take the voltage between the plates to be 2110 V, and the plate separation to be 1.92 cm. The oil drop (of density 0.823 g/cm3) has a diameter of 4.2×10−6 m . Calculate the charge in terms of the number of elementary charges (1.6×10-19).
In Millikan's oil-drop experiment, one looks at a small oil drop held motionless between two plates. Take the voltage between the plates to be 2003 V, and the plate separation to be 1.45 cm. The oil drop (of density 0.81 g/cm) has a diameter of 4.00 x 10m. Find the charge on the drop, in terms of electron units. x e 12.04
In Millikan's oil-drop experiment, one looks at a small oil drop held motionless between two plates. Take the...
In Millikan's oil-drop experiment, one looks at a small oil drop held motionless between two plates. Take the voltage between the plates to be 2015 V, and the plate separation to be 1.98 cm. The oil drop (of density 0.810 g/cm3) has a diameter of 4.25 x 10-6 m. Find the charge (in C) on the drop. 2.508e-18 X What forces act on the oil-drop? How is the mass of the oil-drop related to the density of oil and the...
A negatively charged oil drop whose mass is 10-15 kg and
whose charge is -6.4 10-19 Coulombs remains stationary under the
influence of the Earth’s gravitational field and a uniform external
electric field made by two oppositely-charged parallel plates (see
diagram below). Ignore the influence of Earth’s electric field on
the oil drop.
Determine the magnitude and direction of the net
electric field created by the plates (not the electric field of the
oil drop !). Explain completely how you...
