The open-circuit output voltage of a battery is 24 V.  The voltage across the battery terminals drops...

The open-circuit output voltage of a battery is 24 V.  The voltage across the battery terminals drops to 20 V when a 1000 Ω resistor is connected across them.  What is the internal resistance of the battery?

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

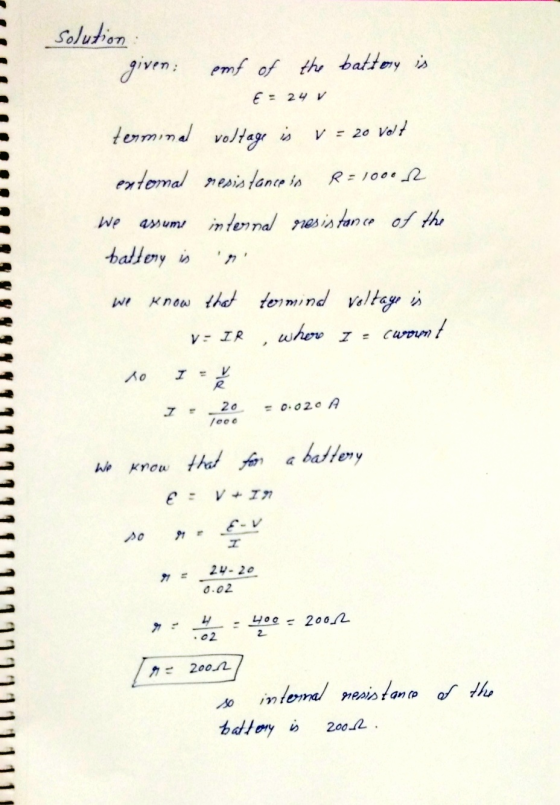

Answer #1

0 0
Add a comment
