Logic Design-Show work Subtract 1001012 - 1102 Add 11012 to 10112 Convert 35710 to BCD Add...
Logic Design-Show work
Subtract 1001012 - 1102
Add 11012 to 10112

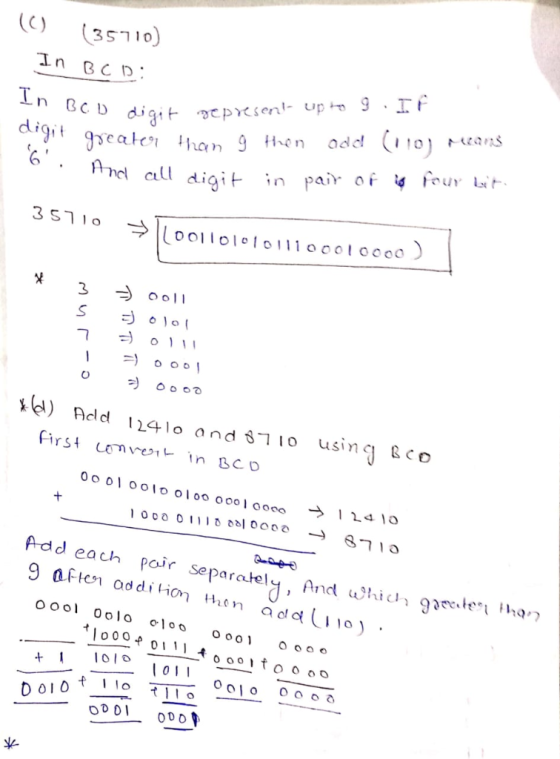

Convert 35710 to BCD

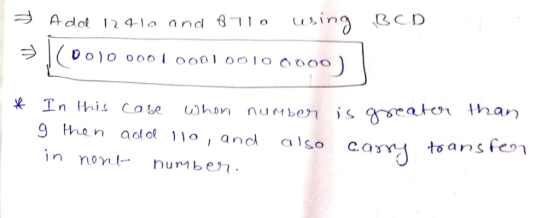

Add 12410 and 8710 using BCD

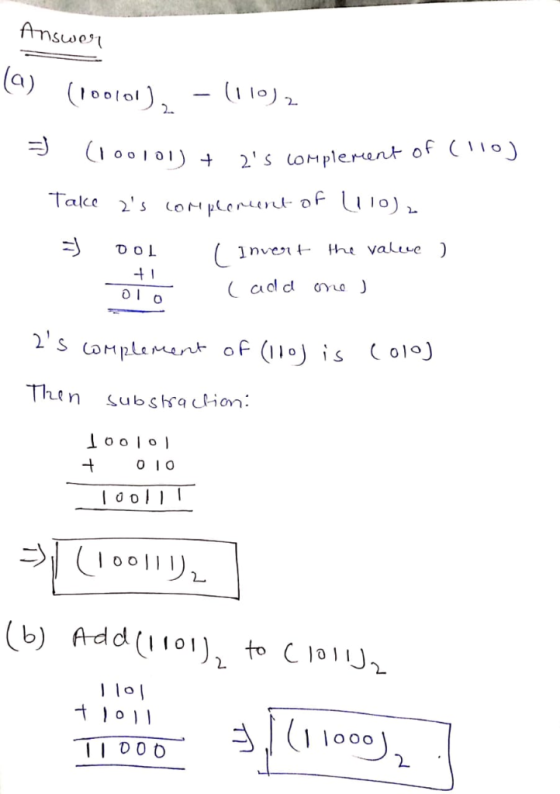

Homework Answers
Add Answer to:
Logic Design-Show work
Subtract 1001012 - 1102
Add 11012 to 10112
Convert 35710 to BCD
Add...
16. Design a logic circuit which will add/subtract/complement 2-digit BCD numbers. You are given ...
16. Design a logic circuit which will add/subtract/complement 2-digit BCD numbers. You are given 1-digit BCD adders, imultiplexers, 9's complement units. There will be two control signal ADD and C: When ADD-1, C-0 the circuit will perform addition, when ADD-0, C 0 the circuit will perform subtraction, when C Complements of inputs are not available. You can use logic levels 1 and 0. Use a minimum nümber of additional gätes. the circuit will find the 9's complement of the input...
Logic Design-show work Convert 147.38 to base 10 for 3 decimal places Convert 1001101.0101112 to base...
Logic Design-show work Convert 147.38 to base 10 for 3 decimal places Convert 1001101.0101112 to base 16
D) Design using the 74193 and additional combinatorial logic a BCD counter from 9 to 65.
D) Design using the 74193 and additional combinatorial logic a BCD counter from 9 to 65.
3. (20 Points) Design a logic circuit that accepts BCD inputs and gives an output of...
3. (20 Points) Design a logic circuit that accepts BCD inputs and gives an output of logic 1 only if the input is greater than 3 but less than 9.

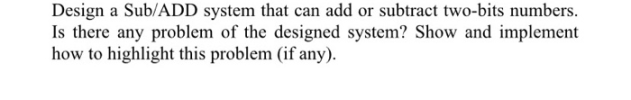

Design a Sub/ADD system that can add or subtract two-bits numbers. Is there any problem of...
Design a Sub/ADD system that can add or subtract two-bits numbers. Is there any problem of the designed system? Show and implement how to highlight this problem (if any).
2. Design a digital logic circuit to convert part of the output code from part 1. to a binary signal. Use CMOS gates. (hint, the simpler you can get the logic, the less work you will have). You must...
2. Design a digital logic circuit to convert part of the output code from part 1. to a binary signal. Use CMOS gates. (hint, the simpler you can get the logic, the less work you will have). You must draw the circuit with transistors In Out DUIi 0111 011 0011 010 0001 001
2. Design a digital logic circuit to convert part of the output code from part 1. to a binary signal. Use CMOS gates. (hint, the simpler you...
Convert the machine below to a controller by using the five-step sequential logic design process (HINT:...
Convert the machine below to a controller by using the five-step sequential logic design process (HINT: See Lecture 18 Slides, and of course step 1 is given). Assume that a state register is available to keep track of the states, so that you do NOT need to draw the internals of the state register. Show each step in detail. In the final step, design and draw the schematic for the combinational logic required to implement the controller. x=1 B x...
VHDL structural code please Design an 8-bit add/subtract in Verilog AND VHDL using any of the...
VHDL structural code please
Design an 8-bit add/subtract in Verilog AND VHDL using any of the coding styles and language features covered so far in modules 8 and 9. When AS Sel0 it performs an addition, else when AS Sel 1 it performs a subtraction. OpA and OpB are assumed to be signed, 2's-Complement numbers. Hint: Bit-wise XOR AS Sel with OpB before adding it to OpA- see lecture notes Op87.0Add/ Subtract Vout
The assignment is build an 8 bit ALU in structural verilog NOT behavioral : Requirements are to design the ALU to implement NAND, AND, OR, NOT, XOR, XNOR, ADD, SUBTRACT, COMPARE, etc. WIll be executed...
The assignment is build an 8 bit ALU in structural verilog NOT behavioral : Requirements are to design the ALU to implement NAND, AND, OR, NOT, XOR, XNOR, ADD, SUBTRACT, COMPARE, etc. WIll be executed on 2s complemented throughout. 15 Op codes necessary are the following: -Transfer A -Increment A -Addition -Subtraction -Decrement A -1s comp -A and B,A NAND B,A or B, A NOR B, A XOR B, A XNOR B, -A greater than B -A Les than B...
design a logic gate level 14X1 multiplexer . your design should show the connections between the selection lines.the dif...
design a logic gate level 14X1 multiplexer . your design should show the connections between the selection lines.the different inputs and output line input pins to the eight output pins using the required logic gate
16. Design a logic circuit which will add/subtract/complement 2-digit BCD numbers. You are given 1-digit BCD adders, imultiplexers, 9's complement units. There will be two control signal ADD and C: When ADD-1, C-0 the circuit will perform addition, when ADD-0, C 0 the circuit will perform subtraction, when C Complements of inputs are not available. You can use logic levels 1 and 0. Use a minimum nümber of additional gätes. the circuit will find the 9's complement of the input...
3. (20 Points) Design a logic circuit that accepts BCD inputs and gives an output of logic 1 only if the input is greater than 3 but less than 9.
Design a Sub/ADD system that can add or subtract two-bits numbers. Is there any problem of the designed system? Show and implement how to highlight this problem (if any).
2. Design a digital logic circuit to convert part of the output code from part 1. to a binary signal. Use CMOS gates. (hint, the simpler you can get the logic, the less work you will have). You must draw the circuit with transistors In Out DUIi 0111 011 0011 010 0001 001
2. Design a digital logic circuit to convert part of the output code from part 1. to a binary signal. Use CMOS gates. (hint, the simpler you...
Convert the machine below to a controller by using the five-step sequential logic design process (HINT: See Lecture 18 Slides, and of course step 1 is given). Assume that a state register is available to keep track of the states, so that you do NOT need to draw the internals of the state register. Show each step in detail. In the final step, design and draw the schematic for the combinational logic required to implement the controller. x=1 B x...
VHDL structural code please
Design an 8-bit add/subtract in Verilog AND VHDL using any of the coding styles and language features covered so far in modules 8 and 9. When AS Sel0 it performs an addition, else when AS Sel 1 it performs a subtraction. OpA and OpB are assumed to be signed, 2's-Complement numbers. Hint: Bit-wise XOR AS Sel with OpB before adding it to OpA- see lecture notes Op87.0Add/ Subtract Vout
