write a matlab code that takes incidence matrix representation of a graph and returns its spaning...
write a matlab code that takes incidence matrix representation of a graph and returns its spaning tree
Homework Answers
Code:
s = [1 1 1 2 3 3];
t = [2 3 4 3 4 5];
G = graph(s,t);
I = incidence(G);
disp('Incidence matrix: ');
disp(I);
[s2,~] = find( I == -1 );
[t2,~] = find( I == 1 );
weights = [5 2 9 3 6 1];
G2 = graph( s2, t2, weights );
p = plot(G,'EdgeLabel',G2.Edges.Weight);
[T,pred] = minspantree(G2);
highlight(p,T)

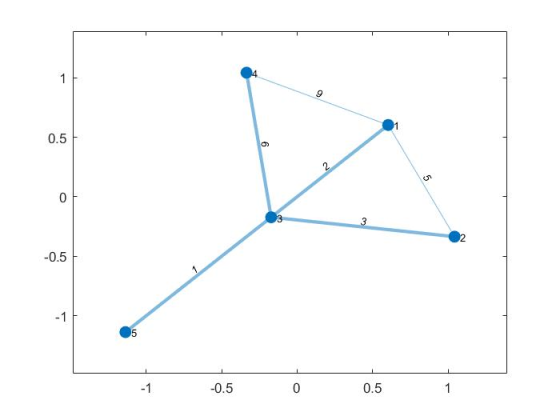

Output:
