We construct an AC series RL circuit to act as a high-pass filter. 1. What is...
We construct an AC series RL circuit to act as a high-pass
filter.

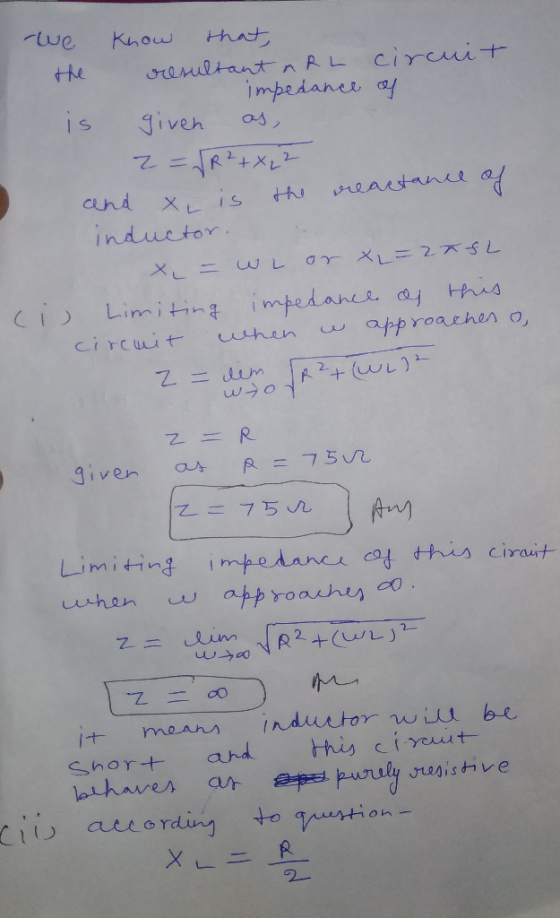

1. What is the limiting impedance of this circuit when ω approaches
0?
When ω approaches ∞?

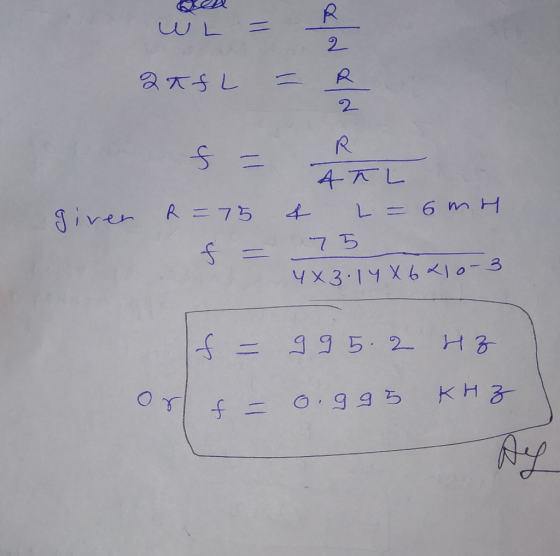

2. Let R = 75 Ω and L = 6.0 mH. For what value of the frequency ƒ
will the inductor's
reactance be half the resistance?
