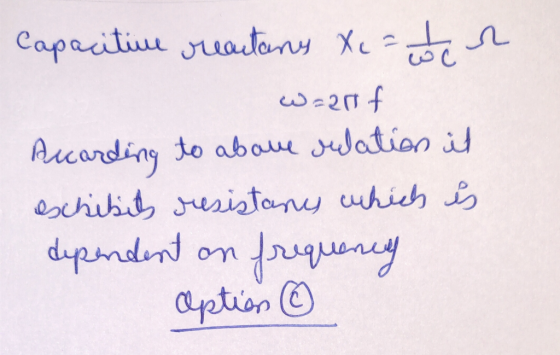

A capacitor in an AC circuit: (a) Has a capacitance dependent on frequency (b) Exhibits resistance,...
A capacitor in an AC circuit: (a) Has a capacitance dependent on frequency (b) Exhibits resistance, independent of frequency (c) Exhibits resistance, dependent on frequency (d) None of the above
Explain why
Homework Answers
Add Answer to:
A capacitor in an AC circuit: (a) Has a capacitance dependent on
frequency (b) Exhibits resistance,...
A circuit has an ac voltage source and a resistor and capacitor connected in series. There is no inductor.
A circuit has an ac voltage source and a resistor and capacitor connected in series. There is no inductor. The ac voltage source has voltage amplitude 0.900 kV and angular frequency w = 20.0 rad/s. The voltage amplitude across the capacitor is 0.500 kV. The resistor has resistance R= 0.300 kΩ. Part A What is the voltage amplitude across the resistor? Part B What is the capacitance C of the capacitor? Part C Does the source voltage lag or lead the current? Part D What is the average...
need help with both please Consider an AC series circuit containing a coil, capacitor and resistance....
need help with both please
Consider an AC series circuit containing a coil, capacitor and resistance. Tripling the frequency will change the inductive reactance by what factor? 03 O 1.73 O 1/3 O 1 D. Question 2 1 pts An RLC circuit has resistance Ro, inductance Lo, and capacitance Co. If the resistance value is now doubled, which values of inductance and capacitance will result in the same resonant frequency as before. 9 Lo/2, C0/2 2Lo.Co/2 2Lo.Co 2L0 200
A capacitor has a capacitance of 470 uF to be used in a rectifier circuit. If...
A capacitor has a capacitance of 470 uF to be used in a rectifier circuit. If the supply voltage of the capacitor increased from 12V to 24V. The value of the capacitor will …? a) Increase b)Decrease C) Remain the same d)None of the above
Question 3 0/1 pts A circuit has a resistor with resistance equal to 81, a capacitor...
Question 3 0/1 pts A circuit has a resistor with resistance equal to 81, a capacitor with capacitance 746 pF, and an inductor with inductance 8e-4 H. What is the total impedance of the circuit if the angular frequency of AC is 60 Hz? 13.660 11.490 9.650 23.690
An AC circuit has a resistance of 500 ohms, a voltage of 200 V, an inductance...
An AC circuit has a resistance of 500 ohms, a voltage of 200 V, an inductance of 0.4 mHz, a capacitance of 100pF and an angular frequency of 5.00 x 105 rad/s. What is the impedance? What is the current amplitude? What is the voltage amplitude read by a voltmeter across the inductor, the resistor, and the capacitor individually? What is the voltage amplitude read by a voltmeter across the inductor and capacitor together?
Exercise 6 An AC circuit is composed of a serial connection of: a resistor with resistance...
Exercise 6 An AC circuit is composed of a serial connection of: a resistor with resistance R-50 a coil with inductance L-0.3 H and a capacitor with capacitance C. I 5·E The circuit is connected to an AC voltage source with ar 50V,600 ㎐ 1. Determine the impedance and the effective electric current in the circuit. 2. Determine the phase shift between the voltage and the current. Conclude. 3. Find the appropriate frequency that make the circuit pure resistance circuit.
1. If the frequency f is doubled, then the AC resistance of a capacitor (a) increases,...
1. If the frequency f is doubled, then the AC resistance of a capacitor (a) increases, (b) decreases by ___________. 2. If the frequency f is doubled, then the AC resistance of an inductor (a) increases, (b) decreases by __________.
The rms current in an RC circuit is 0.57 A . The capacitor in this circuit...
The rms current in an RC circuit is 0.57 A . The capacitor in this circuit has a capacitance of 12 μF and the ac generator has a frequency of 170 Hz and an rms voltage of 75 V . What is the resistance in this circuit?
1. L RC Circuit. An AC circuit has an inductance L -5 mH, a resistance of...
1. L RC Circuit. An AC circuit has an inductance L -5 mH, a resistance of 8.5 Ohms, and a capacitance of 1 mF. It is driven by a sinusoidal signal at a frequency of f 100 Hz. Calculate (a) the inductive reactance, XL: (b) the capacitive reactance Xc: (c) the magnitude of the impedance Z: (d) the resonant frequeney in Hertz, and (e) the phase of the resulting current.
Circuit Analysis in Electrical Engineering 4. A resistor and a capacitor are connected in series across a 270-V ac supply. When the frequency is 40 Hz, the current flowing in the circuit is 6.25...
Circuit Analysis in Electrical Engineering 4. A resistor and a capacitor are connected in series across a 270-V ac supply. When the frequency is 40 Hz, the current flowing in the circuit is 6.25 A. When the frequency is 50 Hz, the current flowing in the circuit is 7.5 A Calculate the resistance and capacitance of the resistor and capacitor respectively. (99.97 μF; 16.798 Ω) If the resistor and capacitor are now connected in parallel across the 60-Hz supply, calculate...
need help with both please
Consider an AC series circuit containing a coil, capacitor and resistance. Tripling the frequency will change the inductive reactance by what factor? 03 O 1.73 O 1/3 O 1 D. Question 2 1 pts An RLC circuit has resistance Ro, inductance Lo, and capacitance Co. If the resistance value is now doubled, which values of inductance and capacitance will result in the same resonant frequency as before. 9 Lo/2, C0/2 2Lo.Co/2 2Lo.Co 2L0 200
Question 3 0/1 pts A circuit has a resistor with resistance equal to 81, a capacitor with capacitance 746 pF, and an inductor with inductance 8e-4 H. What is the total impedance of the circuit if the angular frequency of AC is 60 Hz? 13.660 11.490 9.650 23.690
Exercise 6 An AC circuit is composed of a serial connection of: a resistor with resistance R-50 a coil with inductance L-0.3 H and a capacitor with capacitance C. I 5·E The circuit is connected to an AC voltage source with ar 50V,600 ㎐ 1. Determine the impedance and the effective electric current in the circuit. 2. Determine the phase shift between the voltage and the current. Conclude. 3. Find the appropriate frequency that make the circuit pure resistance circuit.
1. L RC Circuit. An AC circuit has an inductance L -5 mH, a resistance of 8.5 Ohms, and a capacitance of 1 mF. It is driven by a sinusoidal signal at a frequency of f 100 Hz. Calculate (a) the inductive reactance, XL: (b) the capacitive reactance Xc: (c) the magnitude of the impedance Z: (d) the resonant frequeney in Hertz, and (e) the phase of the resulting current.
Circuit Analysis in Electrical Engineering 4. A resistor and a capacitor are connected in series across a 270-V ac supply. When the frequency is 40 Hz, the current flowing in the circuit is 6.25 A. When the frequency is 50 Hz, the current flowing in the circuit is 7.5 A Calculate the resistance and capacitance of the resistor and capacitor respectively. (99.97 μF; 16.798 Ω) If the resistor and capacitor are now connected in parallel across the 60-Hz supply, calculate...
