There is a pendulum made of a uniform rod of mass 'M' and length 'l'. Let...

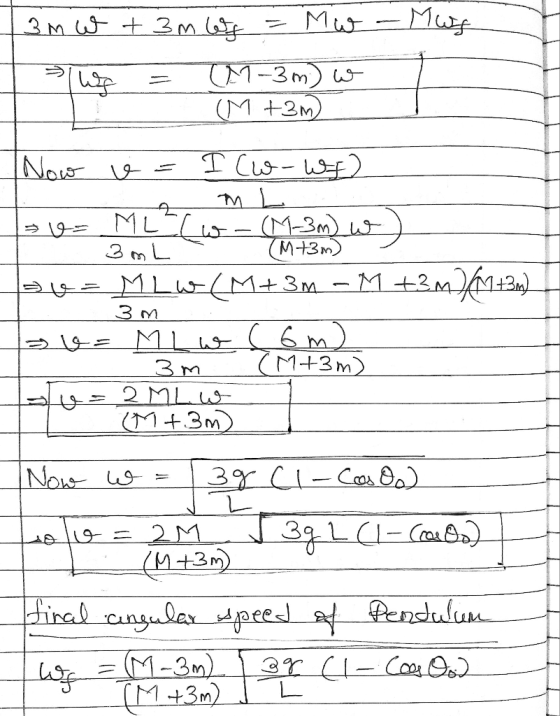

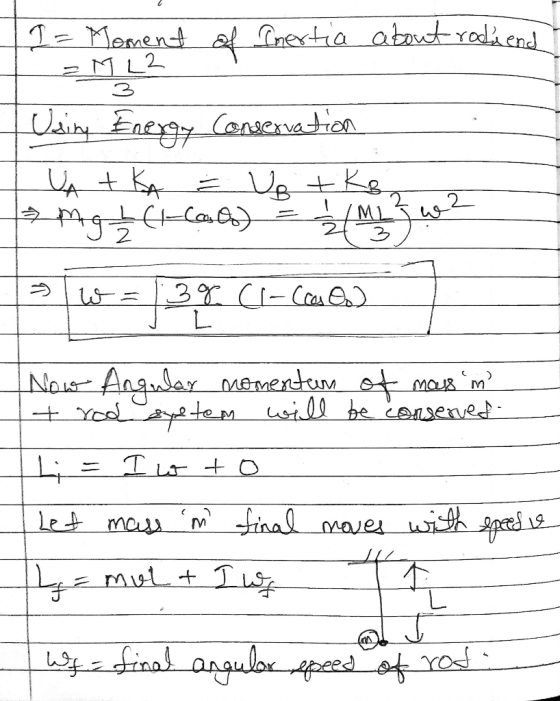

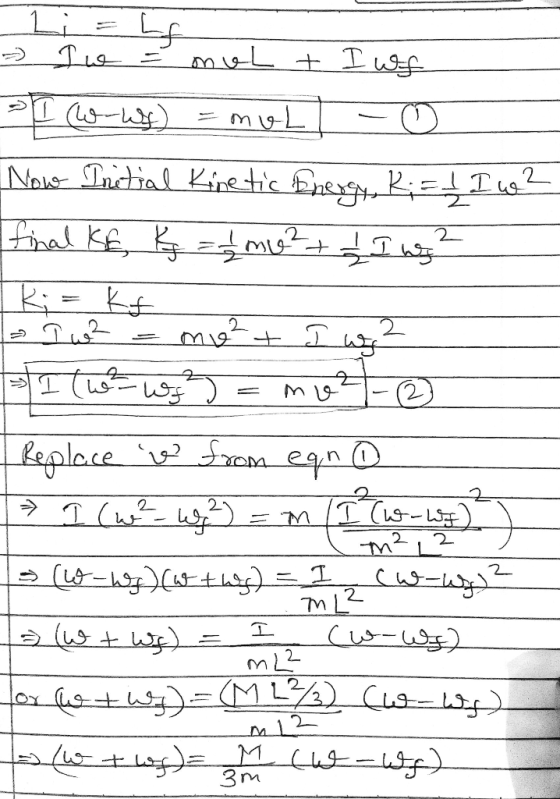

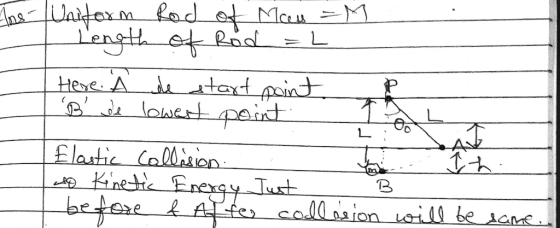

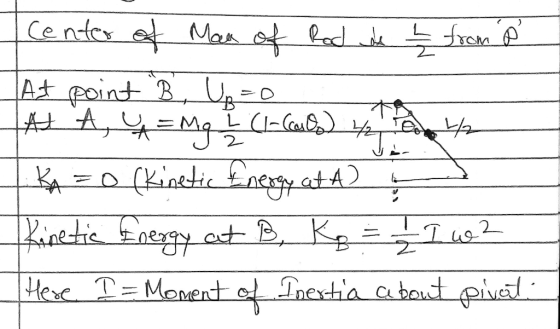

There is a pendulum made of a uniform rod of mass 'M' and length 'l'. Let theta be the angle between the pendulum and the vertical axis. It is raised to the right to an angle thetao. It is then released from rest and at its lowest point (theta=0), it elastically collides with a mass 'm'. Consider the table to be frictionless. What is the velocity of the mass and the angular speed of the pendulum after the collision?
Homework Answers
Add Answer to:
There is a pendulum made of a uniform rod of mass 'M' and length
'l'. Let...
