Problem 4.024 SI Nitrogen, modeled as an ideal gas, flows at a rate of 3 kg/s...

Problem 4.024 SI

Nitrogen, modeled as an ideal gas, flows at a rate of 3 kg/s through a well-insulated horizontal nozzle operating at steady state. The nitrogen enters the nozzle with a velocity of 20 m/s at 500 K, 400 kPa and exits the nozzle at 100 kPa.


To achieve an exit velocity of 500 m/s, determine:

(a) the exit temperature, in K.

(b) the exit area, in m2.
engineering   Mechanical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

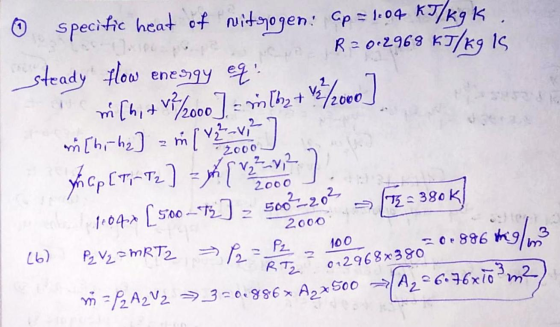

Answer #1

0 0
