An X-ray beam of λ = 70.07 pm is incident on the surface of an atomic...

Question

Question

An X-ray beam of λ = 70.07 pm is incident on the surface of an atomic crystal. The maximum reflection occurs at an angle of 39.9degrees

Calculate the separation between layers of atoms in the crystal (assume n=1).

science chemistry

Answer 1

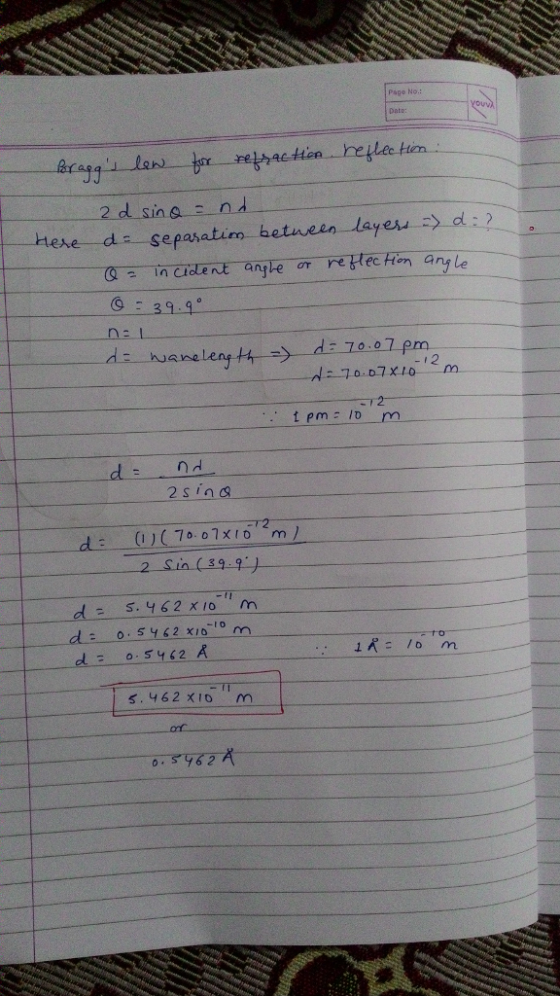

Answer #1

Answer 2
