A person is pushing a wheelbarrow along a ramp that makes an angle 38 degrees with...

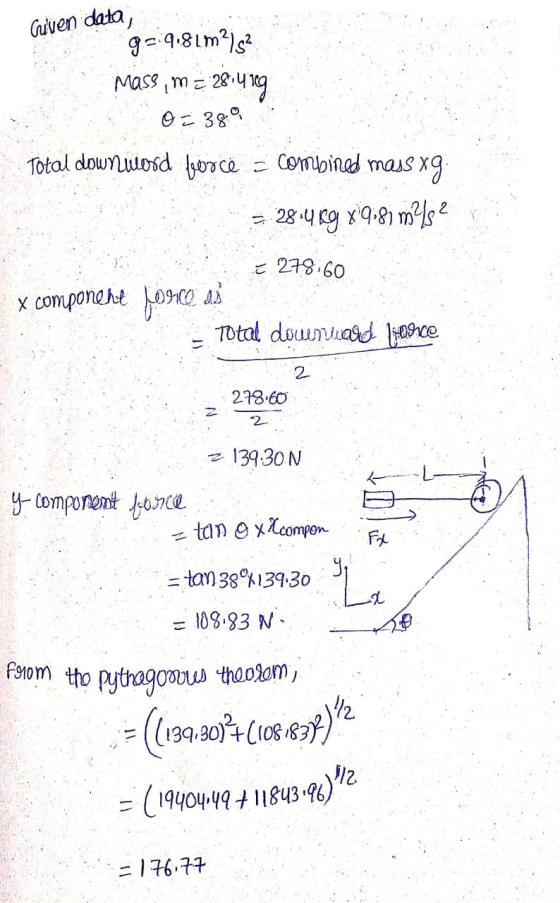

A person is pushing a wheelbarrow along a ramp that makes an angle 38 degrees with the horizontal. The wheelbarrow and load have a combined mass of 28.4kg with the center of mass at the midpoint of the length L. What is the magnitude of the net force that the person must apply in order to push the wheelbarrow up the ramp at a constant velocity, while keeping the wheelbarrow in a level, horizontal orientation? Assume that the radius of the wheel is small enough to ignore. Use g=9.81 m^2/s^2. Please show free body diagram and torques.
Homework Answers
Add Answer to:
A person is pushing a wheelbarrow along a ramp that makes an
angle 38 degrees with...
A person is pushing a wheelbarrow along a ramp that makes an angle α = 41.0°...
A person is pushing a wheelbarrow along a ramp that makes an angle α = 41.0° with the horizontal. The wheelbarrow and load have a combined mass of 21.35 kg with the center of mass at the midpoint of the length L. What is the total force the person must apply so that the wheelbarrow remains horizontal on that ramp?
A person is pushing a wheelbarrow along a ramp that makes an angle α = 31.0° with the horizontal. The wheelbarrow and load have a combined mass of 21.10 kg with the center of mass at the midpoint of...
A person is pushing a wheelbarrow along a ramp that makes an angle α = 31.0° with the horizontal. The wheelbarrow and load have a combined mass of 21.10 kg with the center of mass at the midpoint of the length L. What is the total force the person must apply so that the wheelbarrow remains horizontal on that ramp? Number 126.38 here is a hint available!
A person is pushing a wheelbarrow along a ramp that makes an angle...
A person is pushing a fully loaded 25.15 kg25.15 kg wheelbarrow at constant velocity along a...
A person is pushing a fully loaded 25.15 kg25.15 kg wheelbarrow at constant velocity along a plank that makes an angle α=28.0∘α=28.0∘ with the horizontal. The load is distributed such that the center of mass of the wheelbarrow is exactly halfway along its length LL . What is the magnitude of the total force FxFx the person must apply so that the wheelbarrow is parallel to that plank? You may negelct the radius of the wheel in your analysis.
A person is pushing a fully loaded 21.20 kg wheelbarrow at constant velocity along a plank...
A person is pushing a fully loaded 21.20 kg wheelbarrow at constant velocity along a plank that makes an angle ?=21.0∘ with the horizontal. The load is distributed such that the center of mass of the wheelbarrow is exactly halfway along its length ? . What is the magnitude of the total force ?? the person must apply so that the wheelbarrow is parallel to that plank? You may negelct the radius of the wheel in your analysis. An inclined...
A person pushing a horizontal, uniformly loaded, 26.40 kg wheelbarrow of length L is attempting to...
A person pushing a horizontal, uniformly loaded, 26.40 kg wheelbarrow of length L is attempting to get it over a step of height h = 0.470R, where R is the wheel's radius. The center of gravity of the wheelbarrow is in the center of the wheelbarrow. What is the horizontal component Px of the minimum force P necessary to push the wheelbarrow over the step? The gravitational acceleration is g = 9.81 m/s2. PE
A person pushing a horizontal, uniformly loaded, 21.95 kg wheelbarrow of length L is attempting to...
A person pushing a horizontal, uniformly loaded, 21.95 kg
wheelbarrow of length L is attempting to get it over a step of
height h=0.510R, where R is the wheel's radius. The center of
gravity of the wheelbarrow is in the center of the wheelbarrow.
What is the horizontal component Px of the minimum force P→
necessary to push the wheelbarrow over the step? The gravitational
acceleration is g=9.81 m/s2.
Px=
1 OL
A person pushing a horizontal, uniformly-loaded 27.20 kg wheelbarrow is attempting to get it over a...
A person pushing a horizontal, uniformly-loaded 27.20 kg wheelbarrow is attempting to get it over a step of height 0.490R, where R is the wheel\'s radius. What is the horizontal component of the minimum force P necessary to push the wheelbarrow over the step?
A person pushing a horizontal, uniformly-loaded 21.45 kg wheelbarrow is attempting to get it over a...
A person pushing a horizontal, uniformly-loaded 21.45 kg wheelbarrow is attempting to get it over a step of height 0.510R, where R is the wheel\'s radius. What is the horizontal component of the minimum force P necessary to push the wheelbarrow over the step?
John is pushing his daughter Rachel in a wheelbarrow when it is stopped by a brick...
John is pushing his daughter Rachel in a wheelbarrow when it is stopped by a brick 8.00 cm high (see the figure below). The handles make an angle of 0 = 18.0° with the ground. Due to the weight of Rachel and the wheelbarrow, a downward force of 379 N is exerted at the center of the wheel, which has a radius of 19.0 cm. Assume the brick remains fixed and does not slide along the ground. Also assume the...
Question 5 15 marks You should be able to answer this question after studying Unit 10 A crate, initially at rest, is pushed along a straight line up a rough ramp that makes an angle of 18° with the h...
Question 5 15 marks You should be able to answer this question after studying Unit 10 A crate, initially at rest, is pushed along a straight line up a rough ramp that makes an angle of 18° with the horizontal. The magnitude of the pushing force is 33 N, in a direction parallel to and up the ramp, and the acceleration of the crate is 0.16 ms-2. The coefficient of sliding friction between the crate and the ramp is 0.35....
A person is pushing a wheelbarrow along a ramp that makes an angle α = 31.0° with the horizontal. The wheelbarrow and load have a combined mass of 21.10 kg with the center of mass at the midpoint of the length L. What is the total force the person must apply so that the wheelbarrow remains horizontal on that ramp? Number 126.38 here is a hint available!
A person is pushing a wheelbarrow along a ramp that makes an angle...
A person pushing a horizontal, uniformly loaded, 26.40 kg wheelbarrow of length L is attempting to get it over a step of height h = 0.470R, where R is the wheel's radius. The center of gravity of the wheelbarrow is in the center of the wheelbarrow. What is the horizontal component Px of the minimum force P necessary to push the wheelbarrow over the step? The gravitational acceleration is g = 9.81 m/s2. PE
John is pushing his daughter Rachel in a wheelbarrow when it is stopped by a brick 8.00 cm high (see the figure below). The handles make an angle of 0 = 18.0° with the ground. Due to the weight of Rachel and the wheelbarrow, a downward force of 379 N is exerted at the center of the wheel, which has a radius of 19.0 cm. Assume the brick remains fixed and does not slide along the ground. Also assume the...
Question 5 15 marks You should be able to answer this question after studying Unit 10 A crate, initially at rest, is pushed along a straight line up a rough ramp that makes an angle of 18° with the horizontal. The magnitude of the pushing force is 33 N, in a direction parallel to and up the ramp, and the acceleration of the crate is 0.16 ms-2. The coefficient of sliding friction between the crate and the ramp is 0.35....
