Question

Q1. Consider the problem of generating all the possible permutations of length n. For example, the permutations of length 3 are: {1,2,3}, {2,1,3},{2,3,1}, {1,3,2}, {3,1,2}, {3,2,1}. In this question, you will provide:

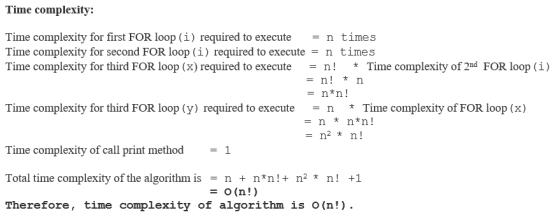

b) Well documented pseudocode of a non-recursive algorithm that computes all the permutations of size n. The only data structure allowed is a stack (you may use maximum up to two stacks). Any other memory usage should be O(1). Calculate the time complexity of your algorithm using the big-Oh notation. Show all calculations

Answer 1

Note: Here i am Providing pseudocode of a non-recursive algorithm using Stack for generating all the possible permutations of length n and i am also provided java program for better understanding.

Copiable code:

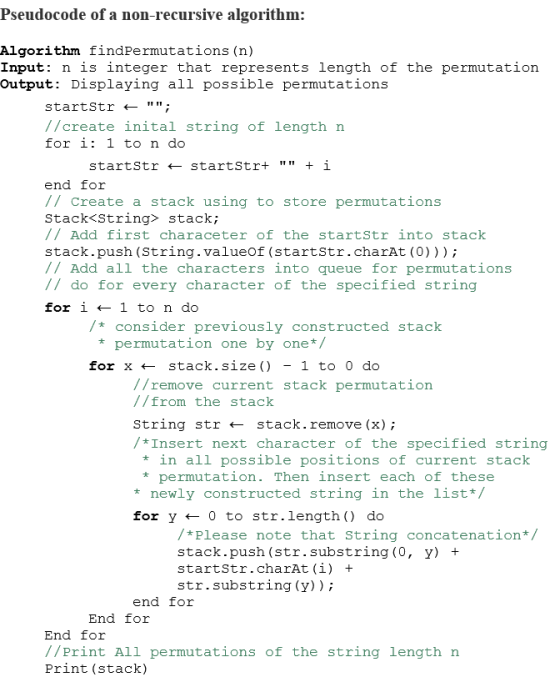

Algorithm findPermutations(n)

Input: n is integer that represents length of the permutation

Output: Displaying all possible permutations

     startStr ← "";

     //create inital string of length n

     for i: 1 to n do

          startStr ← startStr+ "" + i

end for

     // Create a stack using to store permutations

     Stack<String> stack;

     // Add first characeter of the startStr into stack

stack.push(String.valueOf(startStr.charAt(0)));

     // Add all the characters into queue for permutations

     // do for every character of the specified string

     for i ← 1 to n do

          /* consider previously constructed stack

          * permutation one by one*/

          for x ← stack.size() – 1 to 0 do

               //remove current stack permutation

               //from the stack

               String str ← stack.remove(x);

               /*Insert next character of the specified string

               * in all possible positions of current stack

               * permutation. Then insert each of these

               * newly constructed string in the list*/

               for y ← 0 to str.length() do

                     /*Please note that String concatenation*/

                     stack.push(str.substring(0, y) +

                     startStr.charAt(i) +

                     str.substring(y));

               end for

          End for

     End for

//Print All permutations of the string length n

     Print(stack)

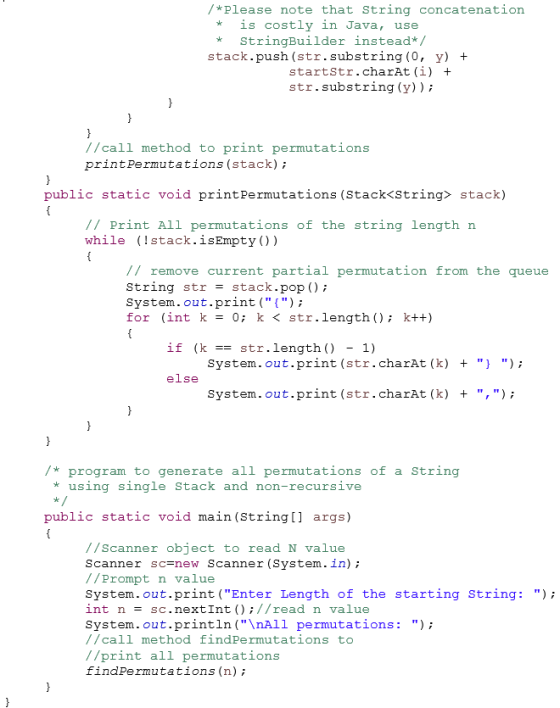

Screenshots of the java program:

Sample output:

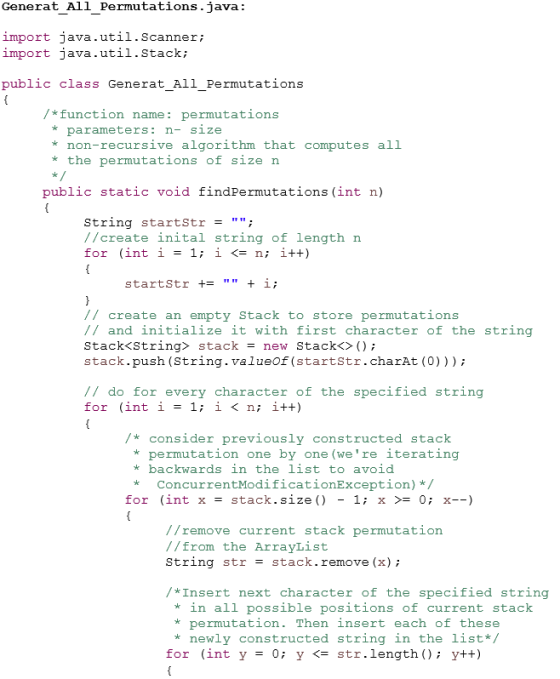

Code to copy: Generat_All_Permutations.java

import java.util.Scanner;
import java.util.Stack;

public class Generat_All_Permutations
{
   /*function name: permutations
   * parameters: n- size
   * non-recursive algorithm that computes all
   * the permutations of size n
   */
   public static void findPermutations(int n)
   {
       String startStr = "";
       //create inital string of length n
       for (int i = 1; i <= n; i++)
       {
           startStr += "" + i;
       }
       // create an empty Stack to store permutations
       // and initialize it with first character of the string
       Stack<String> stack = new Stack<>();
       stack.push(String.valueOf(startStr.charAt(0)));

       // do for every character of the specified string
       for (int i = 1; i < n; i++)
       {
           /* consider previously constructed stack
           * permutation one by one(we're iterating
           * backwards in the list to avoid
           * ConcurrentModificationException)*/
           for (int x = stack.size() - 1; x >= 0; x--)
           {
               //remove current stack permutation
               //from the stack
               String str = stack.remove(x);

               /*Insert next character of the specified string
               * in all possible positions of current stack
               * permutation. Then insert each of these
               * newly constructed string in the list*/
               for (int y = 0; y <= str.length(); y++)
               {
                   /*Please note that String concatenation*/
                   stack.push(str.substring(0, y) +
                           startStr.charAt(i) +
                           str.substring(y));
               }
           }
       }
       //call method to print permutations
       printPermutations(stack);
   }
   public static void printPermutations(Stack<String> stack)
   {
       // Print All permutations of the string length n
       while (!stack.isEmpty())
       {
           // remove current partial permutation from the stack
           String str = stack.pop();
           System.out.print("{");
           for (int k = 0; k < str.length(); k++)
           {
               if (k == str.length() - 1)
                   System.out.print(str.charAt(k) + "} ");
               else
                   System.out.print(str.charAt(k) + ",");
           }
       }
   }

   /* program to generate all permutations of a String
   * using single Stack and non-recursive
   */
   public static void main(String[] args)
   {
       //Scanner object to read N value
       Scanner sc=new Scanner(System.in);
       //Prompt n value
       System.out.print("Enter Length of the starting String: ");
       int n = sc.nextInt();//read n value
       System.out.println("\nAll permutations: ");
       //call method findPermutations to
       //print all permutations
       findPermutations(n);
   }
}
