A uniformly charged ring with total charge q = 3.20 µC and radius R = 17.0...

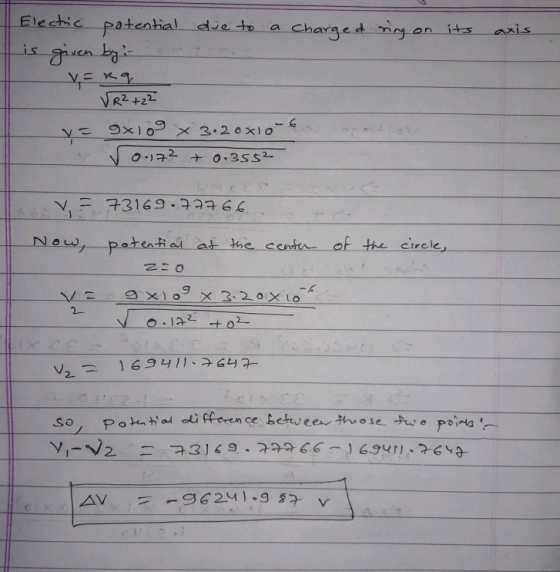

A uniformly charged ring with total charge q = 3.20 µC and radius R = 17.0 cm is placed with its center at the origin and oriented in the xy plane. What is the difference between the electric potential at the origin and the electric potential at the point (0, 0, 35.5 cm)?
Homework Answers
Add Answer to:
A uniformly charged ring with total charge
q = 3.20 µC and radius
R = 17.0...
A uniformly chargped ring with total charge q - 3.35 pc and radius R- 19.5 cm...
A uniformly chargped ring with total charge q - 3.35 pc and radius R- 19.5 cm is placed with its center at the origin and oriented in the y plane. What is the difference between the electric potential at the origin and the electric potential at the point (o, o, 30.5 cm)
A charge Q is distributed uniformly around the perimeter of a ring of radius R. Determine...
A charge Q is distributed uniformly around the perimeter of a ring of radius R. Determine the electric potential difference between the point at the center of the ring and a point on its axis at a distance 20R from the center.
A charge Q is distributed uniformly around the perimeter of a ring of radius R. Determine...
A charge Q is distributed uniformly around the perimeter of a ring of radius R. Determine the electric potential difference between the point at the center of the ring and a point on its axis at a distance 11R from the center. (Use any variable or symbol stated above along with the following as necessary: ke.) ΔV = V(0) − V(11R) =
A ring with radius R and a uniformly distributed total charge Q lies in the xy plane, centered at the origin. (Figure 1)
A ring with radius R and a uniformly distributed total charge Q lies in the xy plane, centered at the origin. (Figure 1) Part B What is the magnitude of the electric field E on the z axis as a function of z, for z >0?
Consider a ring of radius R with the total charge Q spread uniformly over its perimeter....
Consider a ring of radius R with the total charge Q spread uniformly over its perimeter. What is the potential difference between the point at the center of the ring and a point on its axis a distance 7R from the center? (Use any variable or symbol stated above along with the following as necessary: ke) Ke AV-V7R-Vo-0.858 (b) Calculate the electric potential at A. (Use any variable or symbol stated above along with the following as necessary: ke)
For the next six problems, consider a uniformly charged disk of radius R. The total charge...
For the next six problems, consider a uniformly charged disk of radius R. The total charge on the disk is Q. To find the electric potential and field at a point P (x>0) on the x-axis which is perpendicular to the disk with the origin at the center of the disk, it is necessary to consider the contribution from an infinitesimally thin ring of radius a and width da on the disk, as shown. What is the surface charge density...
Consider a ring of radius R with the total charge Q spread uniformly over its perimeter....
Consider a ring of radius R with the total charge Q spread uniformly over its perimeter. What is the poten- tial difference between the point at the center of the ring and a point on its axis a distance 2R from the center?
Consider a ring of radius R with the total charge Q spread uniformly over its perimeter....
Consider a ring of radius R with the total charge Q spread uniformly over its perimeter. a. What is the potential difference between the point at the center of the ring and a point on its axis a distance 15R from the center? (Use any variable or symbol stated above along with the following as necessary: k.) ΔV = V15R − V0 =_______________ b. Suppose the ring has a charge of +100 μC and a radius of 0.1m. Imagine placing...
A very thin uniformly charged plastic rod with total charge radius r and placed in the...
A very thin uniformly charged plastic rod with total charge
radius r and placed in the second quadrant, with its center at the
origin. An identical rod (except with charge + Q) continues the
circle as shown in the figure, to form a half circle centered at
the origin. Find the electric field vector E at the origin, writing
it in component form.
Can anyone answer this question? Will give thump up :)
3) A very thin uniformly charged plastic...
Consider a uniformly volume‑charged sphere of radius R and charge Q . What is the electric...
Consider a uniformly volume‑charged sphere of radius R and charge Q . What is the electric potential on the surface of the sphere in terms of R , Q , and ϵ 0 , choosing the zero reference point for the potential at the center of the sphere?
A uniformly chargped ring with total charge q - 3.35 pc and radius R- 19.5 cm is placed with its center at the origin and oriented in the y plane. What is the difference between the electric potential at the origin and the electric potential at the point (o, o, 30.5 cm)
Consider a ring of radius R with the total charge Q spread uniformly over its perimeter. What is the potential difference between the point at the center of the ring and a point on its axis a distance 7R from the center? (Use any variable or symbol stated above along with the following as necessary: ke) Ke AV-V7R-Vo-0.858 (b) Calculate the electric potential at A. (Use any variable or symbol stated above along with the following as necessary: ke)
For the next six problems, consider a uniformly charged disk of radius R. The total charge on the disk is Q. To find the electric potential and field at a point P (x>0) on the x-axis which is perpendicular to the disk with the origin at the center of the disk, it is necessary to consider the contribution from an infinitesimally thin ring of radius a and width da on the disk, as shown. What is the surface charge density...
Consider a ring of radius R with the total charge Q spread uniformly over its perimeter. What is the poten- tial difference between the point at the center of the ring and a point on its axis a distance 2R from the center?
A very thin uniformly charged plastic rod with total charge
radius r and placed in the second quadrant, with its center at the
origin. An identical rod (except with charge + Q) continues the
circle as shown in the figure, to form a half circle centered at
the origin. Find the electric field vector E at the origin, writing
it in component form.
Can anyone answer this question? Will give thump up :)
3) A very thin uniformly charged plastic...
