An archer standing on a 15 degree slope shoots an arrow at an angle of 27...

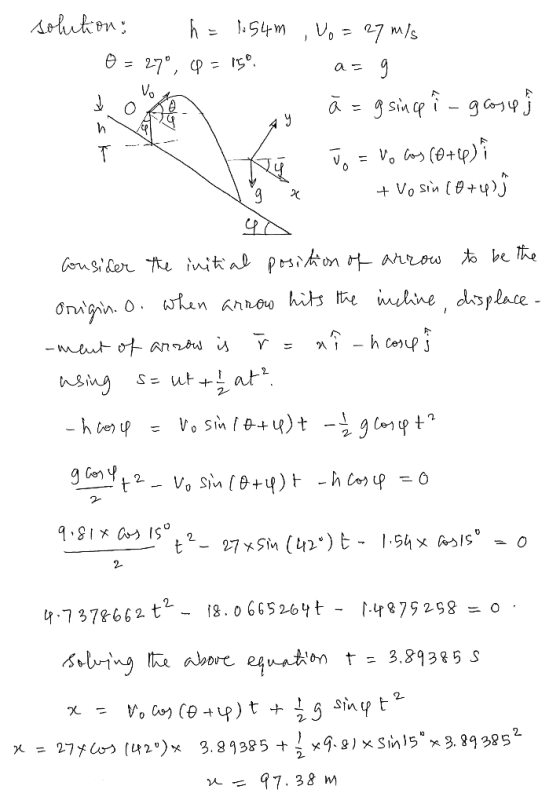

An archer standing on a 15 degree slope shoots an arrow at an angle of 27 degrees above the horizontal. How far below its original point of release does the arrow hit if it is shot with a speed of 27 m/s from a height of 1.54 m above the ground?
Homework Answers
Add Answer to:
An archer standing on a 15 degree slope shoots an arrow at an
angle of 27...
Cite your answers in SI units and to three signficant figures. Question 1 6 pts An...
Cite your answers in SI units and to three signficant figures. Question 1 6 pts An archer standing on a 15 degree slope shoots an arrow at an angle of 20 degrees above the horizontal. How far below its original point of release does the arrow hit if it is shot with a speed of 14 m/s from a height of 1.88 m above the ground?
An archer shoots an arrow at a 67.0 m distant target; the bull's-eye of the target...
An archer shoots an arrow at a 67.0 m distant target; the bull's-eye of the target is at same height as the release height of the arrow (a) At what angle in degrees must the arrow be released to hit the bull's-eye if its initial speed is 36.0 m/s? (b) There is a large tree halfway between the archer and the target with an overhanging branch 4.79 m above the release height of the arrow. Will the arrow go over...
An archer shoots an arrow at a 73.0 m distant target, the bull's-eye of which is...
An archer shoots an arrow at a 73.0 m distant target, the bull's-eye of which is at same height as the release height of the arrow. (a) At what angle must the arrow be released to hit the bull's-eye if its initial speed is 35.0 m/s? (Although neglected here, the atmosphere provides significant lift to real arrows.) ° (b) There is a large tree halfway between the archer and the target with an overhanging branch 3.50 m above the release...
An archer shoots an arrow at a 75.0 m distant target, the bull's-eye of which is...
An archer shoots an arrow at a 75.0 m distant target, the bull's-eye of which is at same height as the release height of the arrow. (a) At what angle must the arrow be released to hit the bull's-eye if its initial speed is 36.0 m/s? (Although neglected here, the atmosphere provides significant lift to real arrows.) ° (b) There is a large tree halfway between the archer and the target with an overhanging branch 3.50 m above the release...
4. 2-D Kinematics An archer shoots an arrow with a velocity of 50.0m/s at an angle...
4. 2-D Kinematics An archer shoots an arrow with a velocity of 50.0m/s at an angle of 45 deg with the horizon An assistant standing on the level ground 150 m downrange from the launch point throws an apple straight up. g-9.8m/s a) What is the height of the arrow after it has traveled a horizontal distance of 150 m? b) What is the minimal launch speed of the apple to meet the path of the apple? c) At what...
An archer shoots an arrow from a height of 1.19 m above ground with an initial...
An archer shoots an arrow from a height of 1.19 m above ground with an initial velocity of 44.3 m/s and an initial angle of 36.7degree above the horizontal. At what time after the release of the arrow from the bow will the arrow be flying exactly horizontally? (in s) 2.6988 3.5893 4.7738 3492 8.4444 11.2311 14.9373 19.8667
An archer shoots an arrow at a 73.0 m distant target, the bull's-eye of which is...
An archer shoots an arrow at a 73.0 m distant target, the bull's-eye of which is at same height as the release height of the arrow. (a) At what angle must the arrow be released to hit the bull's-eye if its initial speed is 33.0 m/s? (Although neglected here, the atmosphere provides significant lift to real arrows.) Incorrect: Your answer is incorrect. °
An archer shoots his bow from a height of 10 m with an initial velocity of...
An archer shoots his bow from a height of 10 m with an initial velocity of 10 m/s He fires at an angle of 45 degrees. Where does the arrow hit the ground
11 1/2 points| Previous Answers OsColPhysAP2016 3.4.P.029. y Notes Ask Your Teacher An archer shoots an...
11 1/2 points| Previous Answers OsColPhysAP2016 3.4.P.029. y Notes Ask Your Teacher An archer shoots an arrow at a 74.0 m distant target; the bull's-eye of the target is at same height as the release height of the arrow. (a) At what angle in degrees must the arrow be released to hit the bull's-eye if its initial speed is 44.0 m/s? 17.3x (b) There is a large tree halfway between the archer and the target with an overhanging branch 3.42...
A 65 kg archer, standing on frictionless ice, shoots a 100 g arrow at a speed...
A 65 kg archer, standing on frictionless ice, shoots a 100 g arrow at a speed of 100 m/s. What is the recoil speed of the archer?
Cite your answers in SI units and to three signficant figures. Question 1 6 pts An archer standing on a 15 degree slope shoots an arrow at an angle of 20 degrees above the horizontal. How far below its original point of release does the arrow hit if it is shot with a speed of 14 m/s from a height of 1.88 m above the ground?
An archer shoots an arrow at a 67.0 m distant target; the bull's-eye of the target is at same height as the release height of the arrow (a) At what angle in degrees must the arrow be released to hit the bull's-eye if its initial speed is 36.0 m/s? (b) There is a large tree halfway between the archer and the target with an overhanging branch 4.79 m above the release height of the arrow. Will the arrow go over...
4. 2-D Kinematics An archer shoots an arrow with a velocity of 50.0m/s at an angle of 45 deg with the horizon An assistant standing on the level ground 150 m downrange from the launch point throws an apple straight up. g-9.8m/s a) What is the height of the arrow after it has traveled a horizontal distance of 150 m? b) What is the minimal launch speed of the apple to meet the path of the apple? c) At what...
An archer shoots an arrow from a height of 1.19 m above ground with an initial velocity of 44.3 m/s and an initial angle of 36.7degree above the horizontal. At what time after the release of the arrow from the bow will the arrow be flying exactly horizontally? (in s) 2.6988 3.5893 4.7738 3492 8.4444 11.2311 14.9373 19.8667
An archer shoots his bow from a height of 10 m with an initial velocity of 10 m/s He fires at an angle of 45 degrees. Where does the arrow hit the ground
11 1/2 points| Previous Answers OsColPhysAP2016 3.4.P.029. y Notes Ask Your Teacher An archer shoots an arrow at a 74.0 m distant target; the bull's-eye of the target is at same height as the release height of the arrow. (a) At what angle in degrees must the arrow be released to hit the bull's-eye if its initial speed is 44.0 m/s? 17.3x (b) There is a large tree halfway between the archer and the target with an overhanging branch 3.42...
