An object is 1.9 m to the left of a lens of focal length 0.9 m....

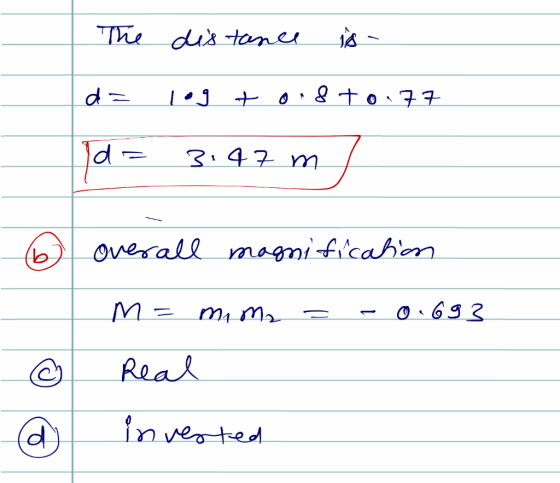

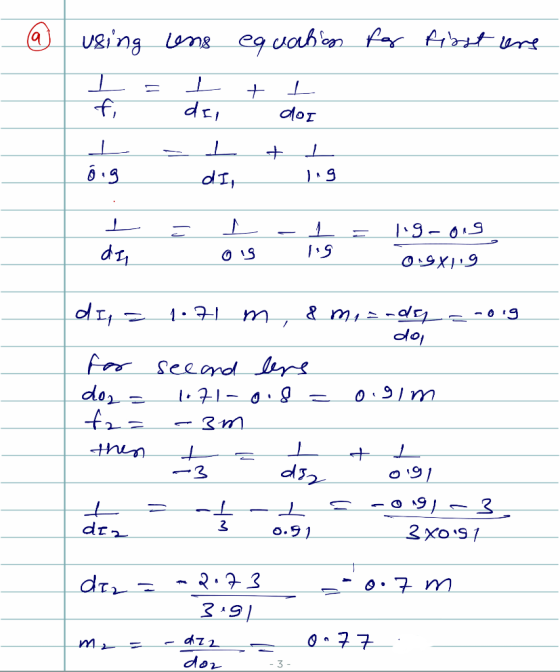

An object is 1.9 m to the left of a lens of focal length 0.9 m. A second lens of focal length -3 m is 0.8 m to the right of the first lens. Find the distance between the object and the final image formed by the second lens.
m
[2.5 points] 1 attempt(s) made (maximum allowed for
credit = 5)
[after that, multiply credit by 0.5 up to 10
attempts]
What is the overall magnification (with sign)?
Homework Answers
An object is 1.85 m to the left of a lens of focal length 0.9 m....
An object is 1.85 m to the left
of a lens of focal length 0.9 m. A second lens of focal length -3.4
m is 0.74 m to the right of the first lens. Find the distance
between the object and the final image formed by the second
lens.
An object is 1.85 m to the left of a lens of focal length 0.9 m. A second lens of focal length -3.4 m is 0.74 m to the right of...
An object is 1.95 m to the left of a lens of focal length 0.92 m....
An object is 1.95 m to the left of a lens of focal length 0.92 m. A second lens of focal length -3.6 m is 0.4 m to the right of the first lens. a) Find the distance between the object and the final image formed by the second lens. (in m) b) What is the overall magnification (with sign)? c) Is the final image real or virtual? real virtual d) Is it upright or inverted? 1. upright 2. inverted
An object is 22.0 cm to the left of a lens that has a focal length...
An object is 22.0 cm to the left of a lens that has a focal
length of +8.50 cm. A second lens, which has a focal length of
-29.0 cm, is 5.80 cm to the right of the first lens.
(a) Find the distance between the object and the final image
formed by the second lens.
(b) What is the overall magnification?
Please help with parts A and B. Thanks!
An object is 22.0 cm to the left of a...
An object is 22.3 cm to the left of a lens that has a focal length...
An object is 22.3 cm to the left of a lens that has a focal
length of +8.5 cm. A second lens, which has a focal length of -30
cm, is 5.49 cm to the right of the first lens.
An object is 22.3 cm to the left of a lens that has a focal length of +8.5 cm. A second lens, which has a focal length of -30 cm, is 5.49 cm to the right of the first lens....
An object is placed 30 cm to the left of a converging lens of focal length...
An object is placed 30 cm to the left of a converging lens of focal length f1= + 20 cm. A second lens sits 40 cm to the right of the first lens. The two - lens system produces an overall magnification of M = + 2.0. What is the focal length (f2) of the second lens?
An object 2.02 cm high is placed 40.2 cm to the left of a converging lens having a focal length o...
An object 2.02 cm high is placed 40.2 cm to the left of a converging lens having a focal length of 30.5 cm. A diverging lens with a focal length of-20.0 cm is placed 110 cm to the right of the converging lens. (a) Determine the position of the final image. distance location to the right , of the diverging lens (b) Determine the magnification of the final image 128.4 Your response differs from the correct answer by more than...
A concave lens has a focal length of -36 cm. Find the image distance and magnification...
A concave lens has a focal length of -36 cm. Find the image distance and magnification that results when an object is placed 19 cm in front of the lens. (Use the proper sign convention for both quantities.) When an object is located 61 cm to the left of a lens, the image is formed 25 cm to the right of the lens. What is the focal length of the lens? An object with a height of 2.22 cm is...
An object is placed 45 cm to the left of a converging lens of focal length...
An object is placed 45 cm to the left of a converging lens of focal length 17 cm. A diverging lens of focal length −29 cm is located 11 cm to the right of the first lens. (Consider the lenses as thin lenses). a) Where is the final image with respect to the second lens?cm b) What is the linear magnification of the final image?
Problem 5) a) An object is 80 cm to the left of a lens of focal...
Problem 5) a) An object is 80 cm to the left of a lens of focal length +40 cm. Where is the image? Is it real or virtual? Is it erect or inverted? What is its magnification? Draw the ray diagram. (2pt.) b) A second lens, of focal length +50 cm, is 120 cm to the right of the first lens. What is the distance between the final image and the first lens? Draw the ray diagram. (2pt.) 1
An object is placed to the left of a converging lens of focal length f =...
An object is placed to the left of a converging lens of focal length f = 30 cm, such that the object-to-image distance is 7 cm. Find the magnification.
An object is 1.85 m to the left
of a lens of focal length 0.9 m. A second lens of focal length -3.4
m is 0.74 m to the right of the first lens. Find the distance
between the object and the final image formed by the second
lens.
An object is 1.85 m to the left of a lens of focal length 0.9 m. A second lens of focal length -3.4 m is 0.74 m to the right of...
An object is 22.0 cm to the left of a lens that has a focal
length of +8.50 cm. A second lens, which has a focal length of
-29.0 cm, is 5.80 cm to the right of the first lens.
(a) Find the distance between the object and the final image
formed by the second lens.
(b) What is the overall magnification?
Please help with parts A and B. Thanks!
An object is 22.0 cm to the left of a...
An object is 22.3 cm to the left of a lens that has a focal
length of +8.5 cm. A second lens, which has a focal length of -30
cm, is 5.49 cm to the right of the first lens.
An object is 22.3 cm to the left of a lens that has a focal length of +8.5 cm. A second lens, which has a focal length of -30 cm, is 5.49 cm to the right of the first lens....
An object 2.02 cm high is placed 40.2 cm to the left of a converging lens having a focal length of 30.5 cm. A diverging lens with a focal length of-20.0 cm is placed 110 cm to the right of the converging lens. (a) Determine the position of the final image. distance location to the right , of the diverging lens (b) Determine the magnification of the final image 128.4 Your response differs from the correct answer by more than...
A concave lens has a focal length of -36 cm. Find the image distance and magnification that results when an object is placed 19 cm in front of the lens. (Use the proper sign convention for both quantities.) When an object is located 61 cm to the left of a lens, the image is formed 25 cm to the right of the lens. What is the focal length of the lens? An object with a height of 2.22 cm is...
Problem 5) a) An object is 80 cm to the left of a lens of focal length +40 cm. Where is the image? Is it real or virtual? Is it erect or inverted? What is its magnification? Draw the ray diagram. (2pt.) b) A second lens, of focal length +50 cm, is 120 cm to the right of the first lens. What is the distance between the final image and the first lens? Draw the ray diagram. (2pt.) 1
