Two charges, -3.0 uC and -4.0 uC, are located at (-0.50m, 0) and (0.75m, 0), respectively....

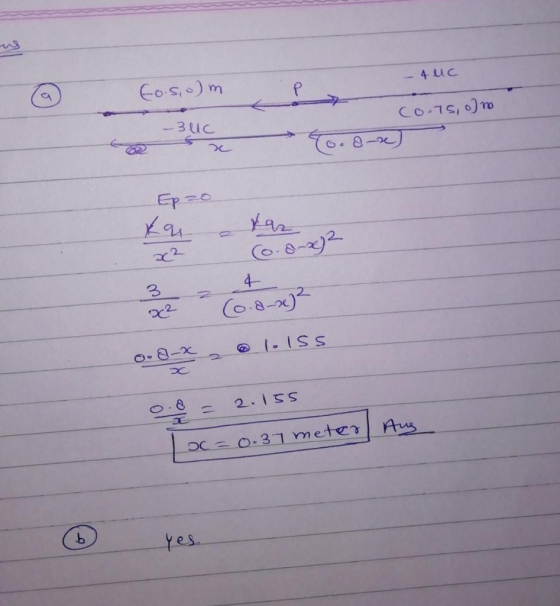

Two charges, -3.0 uC and -4.0 uC, are located at (-0.50m, 0) and (0.75m, 0), respectively. (a) Where on the x-axis is the electric field zero? (b) Is there a position where the electric field has only a y component? Explain. ((o.080 m, 0); yes)
