An RLC circuit has a resistance of 12.7 Ω, an inductance of 15.9 mH, and a...

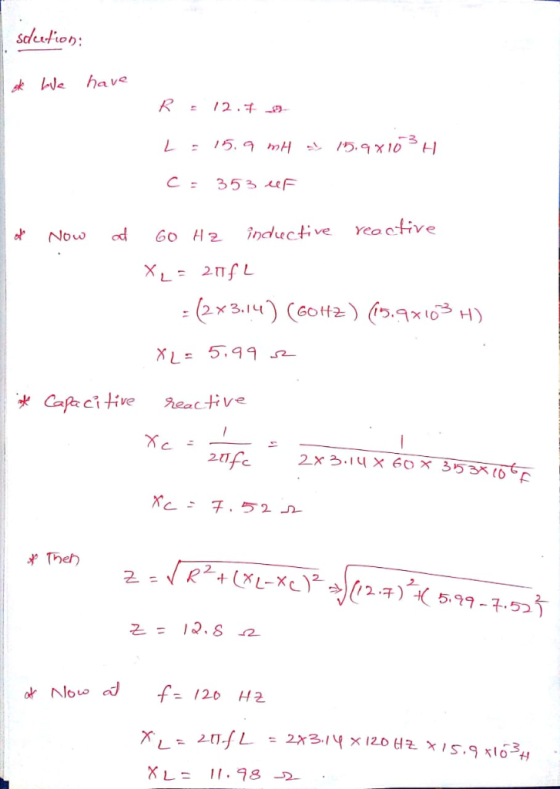

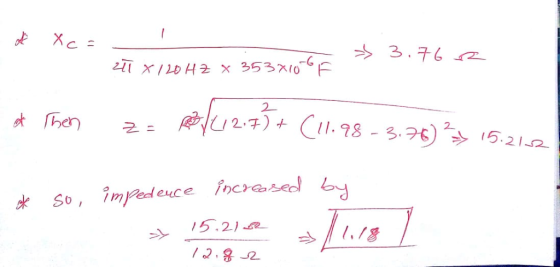

An RLC circuit has a resistance of 12.7 Ω, an inductance of 15.9 mH, and a capacitance of 353.0 μF. By what factor does the impedance of this circuit change when the frequency at which it is driven changes from 60 Hz to 120 Hz? Does the impedance increase or decrease?
Homework Answers
