(a) Consider a cylinder of FCC single crystal under tensile stress. The crystal is oriented such...

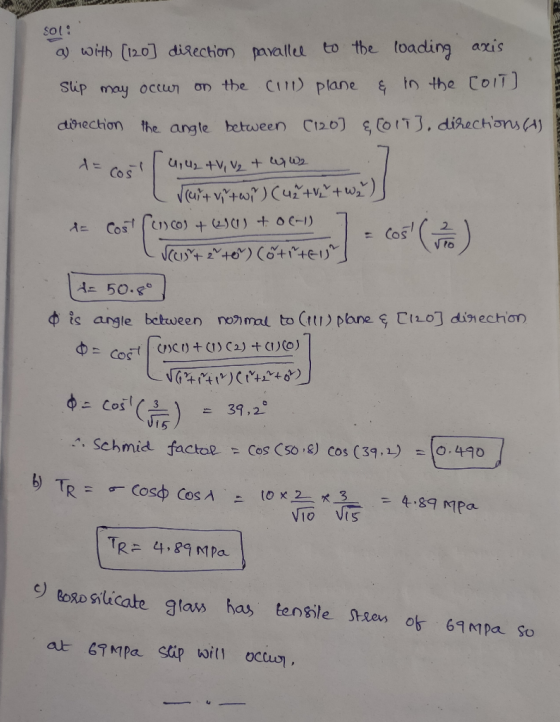

(a) Consider a cylinder of FCC single crystal under tensile stress. The crystal is oriented such that its [120] direction is parallel to the loading axis and the measurement is performed at room temperature. Determine the primary slip system for this configuration and give the magnitude of the resultant Schmid factor (cosφ∙cosλ).
(b) If slip occurs at an applied tensile stress of 10 MPa, what is the material’s critical resolved shear stress?
(c) Assume you now replace the sample with a piece of borosilicate glass of the exact same shape and size. At what applied tensile stress will slip occur?
Homework Answers
Add Answer to:
(a) Consider a cylinder of FCC single crystal under tensile
stress. The crystal is oriented such...
A single crystal of Al has the FCC crystal structure and is oriented such that a...
A single crystal of Al has the FCC crystal structure and is oriented such that a tensile stress is applied parallel to the [010] direction. If the critical resolved shear stress for this material is 0.2 MPa, calculate the magnitude(s) of applied stress(es) necessary to cause slip to occur on the (111) plane in each of the [1̅10] [1̅01] [011̅] Also, which of these slip systems is “preferred” for slip?
1. Chapter 9. Problem#1 (40p): Consider a single crystal FCC iron oriented itch tensile stress applied along |122] direction. A) (10p) Draw a unit eell and show there: the plane (111), tensile di...
1. Chapter 9. Problem#1 (40p): Consider a single crystal FCC iron oriented itch tensile stress applied along |122] direction. A) (10p) Draw a unit eell and show there: the plane (111), tensile direction, normal to the plane direction and slip directions (110,(101] and lo11) B) (10p) Compute the resolved shear stress in (MPa) on plane (111) along the three slip direction given in (B), when tensile stress of 80 MPa is applied. C) (10p) If the critical resolved shear stress...
Consider a single crystal of BCC iron oriented such that a tensile stress is applied along...
Consider a single crystal of BCC iron oriented such that a tensile stress is applied along a [o10) direction Compute the resolved shear stress along a (110) plane and in a (111] direction when a MPa is applied. (10 points) 9. tensile stress 52
1. Consider a metal single crystal oriented such that the normal to the slip plane and...
1. Consider a metal single crystal oriented such that the normal to the slip plane and the slip direction are at angles of 43.10 and 47.9° respectively, with the tensile axis. If the critical resolved shear stress is 20.7 MPa will an applied stress of 45 MPa cause the single crystal to yield? If not, what stress will be necessary? (10 points)
Problem 3: Consider a metal single crystal oriented such that the normal to the slip plane...
Problem 3: Consider a metal single crystal oriented such that the normal to the slip plane and the slip direction are at angles of 43.1° and 47.9°, respectively, with the tensile axis. If the critical resolved shear stress is 20.7 MPa (3000 psi), will an applied stress of 45 MPa (6500 psi) cause the single crystal to yield? If not, what stress will be necessary?
pls answer question (ii) a) A single crystal of an FCC metal is oriented so that...
pls answer question (ii)
a) A single crystal of an FCC metal is oriented so that the [001] direction is parallel to an applied stress of 10 MPa. Calculate the resolve shear stress acting on the (111) slip plane in the [110], [011] and [101] slip directions. The stress and strain behaviour for the metal is shown in figure 4. 400 350 300 250 Stress (MPa) 200 150 100 50 0 0.00 0.02 0.04 0.06 0.08 Strain Figure 4 (i)...
if possible please typing thanks 9. A FCC metal is deformed under tension. The tensile axis...
if possible please typing thanks
9. A FCC metal is deformed under tension. The tensile axis lies along [2 -3 1 A. What is the primary slip system? [0-1 (--1), [01 1 ( -1 1), [ -10] (1 1 -1), [1 1 0] (1-1 1) B. Determine cross slip and co-planar slip systems for that system C. IF the critical resolved shear stress of that slip system was equal to 2 MPa, calculate the applied stress required to start plastic...
5. A cubic close-packed (FCC) metal is deformed under tension. The tensile axis lies along [2 -3 1] A. What is the...
5. A cubic close-packed (FCC) metal is deformed under tension. The tensile axis lies along [2 -3 1] A. What is the primary slip system? [0-1 --1), [01 1 (1- 1), [-1 0] (1 1 -1), [1 101 (1 -1 1) B. Determine cross slip and co-planar slip systems for that system. C. IF the critical resolved shear stress of that slip system was equal to 2 MPa, calculate the applied stress required to start plastic deformation in the material...
Questions (a) Determine the critical resolved shear stress for an iron crystal which deforms by simultaneous...
Questions (a) Determine the critical resolved shear stress for an iron crystal which deforms by simultaneous slip on (110) [-1 1 1]; (110) [-1 1 -1]; (110) [1 1 1] and (110)[1 1 -1] when the tensile stress along [0 1 0] is 95.2 MPa (b) If the critical resolved shear stress for yielding in aluminum is 240x10^3 Pa. Caclulate the tensile stress required to cause yielding when the tensile axis is [001]. (c) Along which crystallographic orientation in an...
3. A tensile stress of 25MPa is applied to a single crystal of metal. The angle...
3. A tensile stress of 25MPa is applied to a single crystal of metal. The angle (between applied stress and the normal to the slip plane) is 28°. The angle (between the applied stress and the slip direction) is 39º. What is the resolved shear stress (t)?
1. Chapter 9. Problem#1 (40p): Consider a single crystal FCC iron oriented itch tensile stress applied along |122] direction. A) (10p) Draw a unit eell and show there: the plane (111), tensile direction, normal to the plane direction and slip directions (110,(101] and lo11) B) (10p) Compute the resolved shear stress in (MPa) on plane (111) along the three slip direction given in (B), when tensile stress of 80 MPa is applied. C) (10p) If the critical resolved shear stress...
Consider a single crystal of BCC iron oriented such that a tensile stress is applied along a [o10) direction Compute the resolved shear stress along a (110) plane and in a (111] direction when a MPa is applied. (10 points) 9. tensile stress 52
1. Consider a metal single crystal oriented such that the normal to the slip plane and the slip direction are at angles of 43.10 and 47.9° respectively, with the tensile axis. If the critical resolved shear stress is 20.7 MPa will an applied stress of 45 MPa cause the single crystal to yield? If not, what stress will be necessary? (10 points)
Problem 3: Consider a metal single crystal oriented such that the normal to the slip plane and the slip direction are at angles of 43.1° and 47.9°, respectively, with the tensile axis. If the critical resolved shear stress is 20.7 MPa (3000 psi), will an applied stress of 45 MPa (6500 psi) cause the single crystal to yield? If not, what stress will be necessary?
pls answer question (ii)
a) A single crystal of an FCC metal is oriented so that the [001] direction is parallel to an applied stress of 10 MPa. Calculate the resolve shear stress acting on the (111) slip plane in the [110], [011] and [101] slip directions. The stress and strain behaviour for the metal is shown in figure 4. 400 350 300 250 Stress (MPa) 200 150 100 50 0 0.00 0.02 0.04 0.06 0.08 Strain Figure 4 (i)...
if possible please typing thanks
9. A FCC metal is deformed under tension. The tensile axis lies along [2 -3 1 A. What is the primary slip system? [0-1 (--1), [01 1 ( -1 1), [ -10] (1 1 -1), [1 1 0] (1-1 1) B. Determine cross slip and co-planar slip systems for that system C. IF the critical resolved shear stress of that slip system was equal to 2 MPa, calculate the applied stress required to start plastic...
5. A cubic close-packed (FCC) metal is deformed under tension. The tensile axis lies along [2 -3 1] A. What is the primary slip system? [0-1 --1), [01 1 (1- 1), [-1 0] (1 1 -1), [1 101 (1 -1 1) B. Determine cross slip and co-planar slip systems for that system. C. IF the critical resolved shear stress of that slip system was equal to 2 MPa, calculate the applied stress required to start plastic deformation in the material...
3. A tensile stress of 25MPa is applied to a single crystal of metal. The angle (between applied stress and the normal to the slip plane) is 28°. The angle (between the applied stress and the slip direction) is 39º. What is the resolved shear stress (t)?
