The following is data from a force sensor. The value in the first column is the...
The following is data from a force sensor. The value in the first column is the raw reading from the arduino and the value in the second column is that applied force. The last three readings (300-400 N) are all "0". Why do you think this is?
|
Raw Reading |
Newtons |
|
1023 |
0 |
|
512 |
10 |
|
345 |
20 |
|
255 |
30 |
|
204 |
40 |
|
179 |
50 |
|
146 |
60 |
|
127 |
70 |
|
113 |
80 |
|
102 |
90 |
|
93 |
100 |
|
85 |
110 |
|
78 |
120 |
|
73 |
130 |
|
68 |
140 |
|
67 |
150 |
|
60 |
160 |
|
56 |
170 |
|
53 |
180 |
|
51 |
190 |
|
48 |
200 |
|
46 |
210 |
|
44 |
220 |
|
42 |
230 |
|
40 |
240 |
|
39 |
250 |
|
37 |
260 |
|
36 |
270 |
|
35 |
280 |
|
34 |
290 |
|
0 |
300 |
|
0 |
350 |
|
0 |
400 |

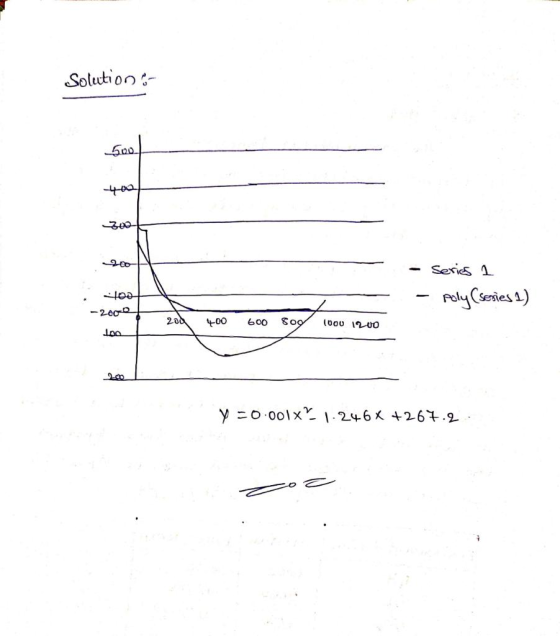

Homework Answers
