For the discrete equations below 1) write a difference equation, 2) draw a system diagram, and...

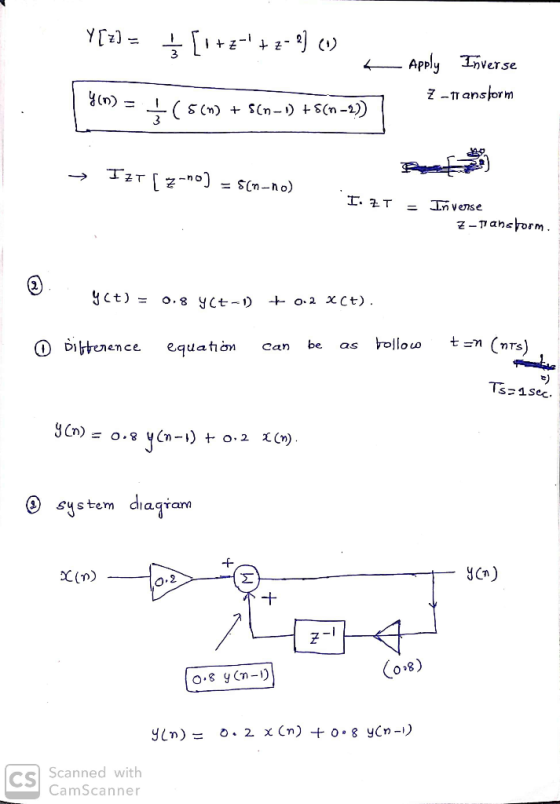

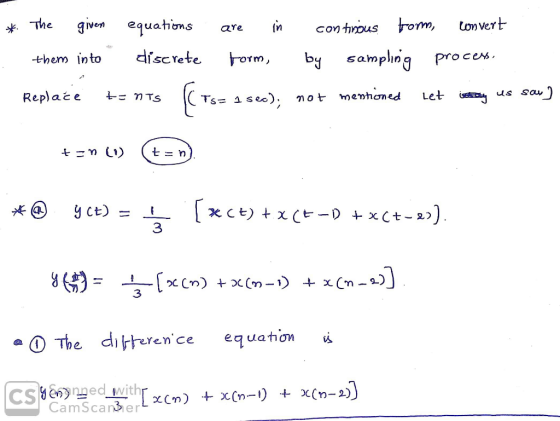

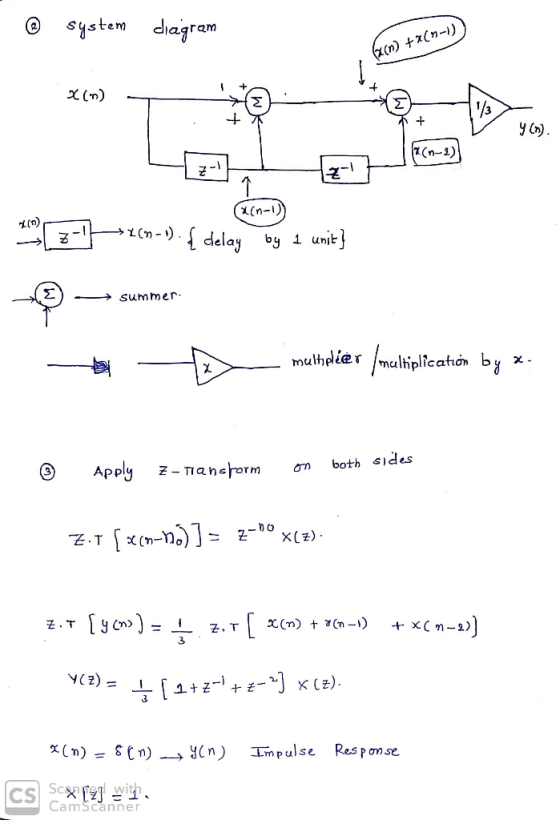

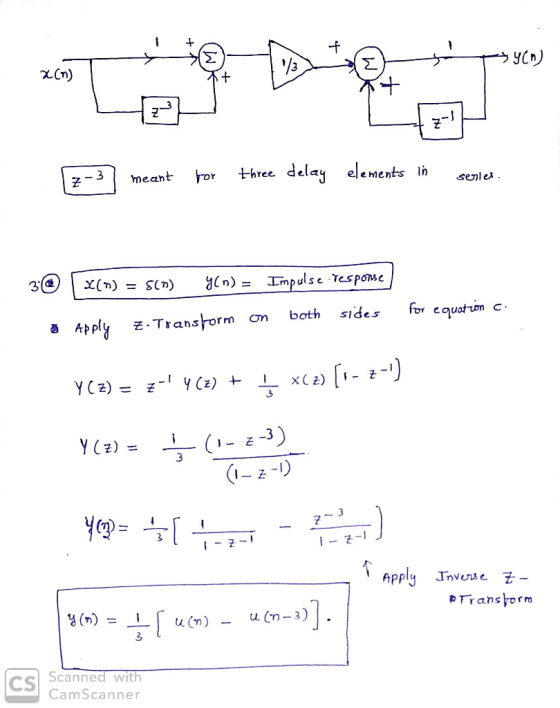

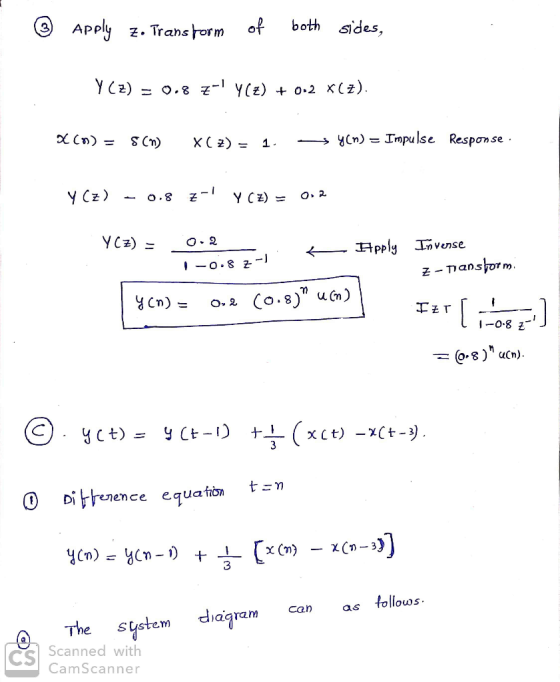

For the discrete equations below 1) write a difference equation, 2) draw a system diagram, and 3) calculate the impulse response.
y[t]=1/3(x[t]+x[t-1]+x[t-2])
y[t]=0.8*y[t-1]+0.2*x[t]
y[t]=y[t-1]+1/3(x[t]-(x[t-3])
Homework Answers
Add Answer to:
For the discrete equations below 1) write a difference equation,
2) draw a system diagram, and...
For a causal LTI discrete-time system described by the difference equation:
For a causal LTI discrete-time system described by the difference equation: y[n] + y[n – 1] = x[n] a) Find the transfer function H(z).b) Find poles and zeros and then mark them on the z-plane (pole-zero plot). Is this system BIBO? c) Find its impulse response h[n]. d) Draw the z-domain block diagram (using the unit delay block z-1) of the discrete-time system. e) Find the output y[n] for input x[n] = 10 u[n] if all initial conditions are 0.
A causal discrete-time system is described by the following difference equation: Use Matlab to write a...
A causal discrete-time system is described by the following difference equation: Use Matlab to write a script to complete the following tasks. Turn in the output created by the Matlab "publish" utility. (a) Compute and plot the impulse response h[n], 0くn 〈 50. Use the function h=imp2(b, a , N ) to find the impulse response, and use the stem ) function to create the plot. (b) Let x[n] be defined by (n - 15)2 0n K 30 x[n] elsewhere...
Question # 3 Two systems are defined by the following difference equations, for each system find...
Question # 3 Two systems are defined by the following difference equations, for each system find the impulse response, determine whether the filter is FIR or IR and draw the block diagram of each system. a) y(n)x(n) + 0.5x(n 1) 0.8x(n - 2) b) y(n)- x(n) + 0.5y(n -1)
(2) Consider the causal discrete-time LTI system with an input r (n) and an output y(n)...
(2) Consider the causal discrete-time LTI system with an input r (n) and an output y(n) as shown in Figure 1, where K 6 (constant), system #1 is described by its impulse response: h(n) = -36(n) + 0.48(n- 1)+8.26(n-2), and system # 2 has the difference equation given by: y(n)+0.1y(n-1)+0.3y(n-2)- 2a(n). (a) Determine the corresponding difference equation of the system #1. Hence, write its fre- quency response. (b) Find the frequency response of system #2. 1 system #1 system #2...
1) A causal discrete-time system is described by the difference equation, y(n) = x(n)+3x(n-1)+ 2x(n-4) a)...
1) A causal discrete-time system is described by the difference equation, y(n) = x(n)+3x(n-1)+ 2x(n-4) a) What is the transfer function of the system? b) Sketch the impulse response of the system
Problem 2 Given is the LCC difference equation that represents some LTI system: y(n)y(n 2) =...
Problem 2 Given is the LCC difference equation that represents some LTI system: y(n)y(n 2) = x(n) +;x(n- 1) 2 Draw a Direct- I and Direct Il block diagram representations of the system Find the impulse response of the system a) b)
a causal discrete time LTI system is implemented using the difference equation y(n)-0.5y(n-1)=x(n)+x(n-1) where x(n) is...
a causal discrete time LTI system is implemented using the difference equation y(n)-0.5y(n-1)=x(n)+x(n-1) where x(n) is the input signal and y(n) the output signal. Find and sketch the impulse response of the system
For the causal filter below y(n) x(n) -20 eja 1-0.8e10 Write the difference equation(show the equation...
For the causal filter below y(n) x(n) -20 eja 1-0.8e10 Write the difference equation(show the equation clearly and define coefficients) Give and plot the frequency response magnitude (show the equation clearly) Compute and plot the impulse response using MATLAB d a. b. c. Use MATLAB to determine steady state response due to x(n)-u(n) Write a MATLAB program to compute and plot the frequency response of the overall system. Give plots in dB and the program e.
For the causal filter...
For the causal filter below y(n) x(n) -20 eja 1-0.8e10 Write the difference equation(show the equation...
For the causal filter below y(n) x(n) -20 eja 1-0.8e10 Write the difference equation(show the equation clearly and define coefficients) Give and plot the frequency response magnitude (show the equation clearly) Compute and plot the impulse response using MATLAB d a. b. c. Use MATLAB to determine steady state response due to x(n)-u(n) Write a MATLAB program to compute and plot the frequency response of the overall system. Give plots in dB and the program e.
For the causal filter...
Problem 2. For the following system described by the difference equation where y[-1-y[-2] = 0 and...
Problem 2. For the following system described by the difference equation where y[-1-y[-2] = 0 and x[n] = 2u[n]: a. Draw a block diagram of this system using delays, multipliers, and adders b. Determine the impulse response of the system, h[n], and plot it in MATLAB for n = 0, 1, ,20. (Hint: use Euler's Formula to simplify) c. Is this system stable? d. Determine the initial conditioned repsonse, in. e. Find the total response of the system, yn nln....
A causal discrete-time system is described by the following difference equation: Use Matlab to write a script to complete the following tasks. Turn in the output created by the Matlab "publish" utility. (a) Compute and plot the impulse response h[n], 0くn 〈 50. Use the function h=imp2(b, a , N ) to find the impulse response, and use the stem ) function to create the plot. (b) Let x[n] be defined by (n - 15)2 0n K 30 x[n] elsewhere...
Question # 3 Two systems are defined by the following difference equations, for each system find the impulse response, determine whether the filter is FIR or IR and draw the block diagram of each system. a) y(n)x(n) + 0.5x(n 1) 0.8x(n - 2) b) y(n)- x(n) + 0.5y(n -1)
(2) Consider the causal discrete-time LTI system with an input r (n) and an output y(n) as shown in Figure 1, where K 6 (constant), system #1 is described by its impulse response: h(n) = -36(n) + 0.48(n- 1)+8.26(n-2), and system # 2 has the difference equation given by: y(n)+0.1y(n-1)+0.3y(n-2)- 2a(n). (a) Determine the corresponding difference equation of the system #1. Hence, write its fre- quency response. (b) Find the frequency response of system #2. 1 system #1 system #2...
1) A causal discrete-time system is described by the difference equation, y(n) = x(n)+3x(n-1)+ 2x(n-4) a) What is the transfer function of the system? b) Sketch the impulse response of the system
Problem 2 Given is the LCC difference equation that represents some LTI system: y(n)y(n 2) = x(n) +;x(n- 1) 2 Draw a Direct- I and Direct Il block diagram representations of the system Find the impulse response of the system a) b)
For the causal filter below y(n) x(n) -20 eja 1-0.8e10 Write the difference equation(show the equation clearly and define coefficients) Give and plot the frequency response magnitude (show the equation clearly) Compute and plot the impulse response using MATLAB d a. b. c. Use MATLAB to determine steady state response due to x(n)-u(n) Write a MATLAB program to compute and plot the frequency response of the overall system. Give plots in dB and the program e.
For the causal filter...
For the causal filter below y(n) x(n) -20 eja 1-0.8e10 Write the difference equation(show the equation clearly and define coefficients) Give and plot the frequency response magnitude (show the equation clearly) Compute and plot the impulse response using MATLAB d a. b. c. Use MATLAB to determine steady state response due to x(n)-u(n) Write a MATLAB program to compute and plot the frequency response of the overall system. Give plots in dB and the program e.
For the causal filter...
Problem 2. For the following system described by the difference equation where y[-1-y[-2] = 0 and x[n] = 2u[n]: a. Draw a block diagram of this system using delays, multipliers, and adders b. Determine the impulse response of the system, h[n], and plot it in MATLAB for n = 0, 1, ,20. (Hint: use Euler's Formula to simplify) c. Is this system stable? d. Determine the initial conditioned repsonse, in. e. Find the total response of the system, yn nln....
