A plano-convex lens is one with a convex surface on one side and a flat surface...

A plano-convex lens is one with a convex surface on one side and a flat surface on the other. Suppose a thin lens is made of glass with index of refraction 1.5. If the radius of curvature of the curved surface is 1.2 meters, what is the focal length of the lens? Give your answer in meters.

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

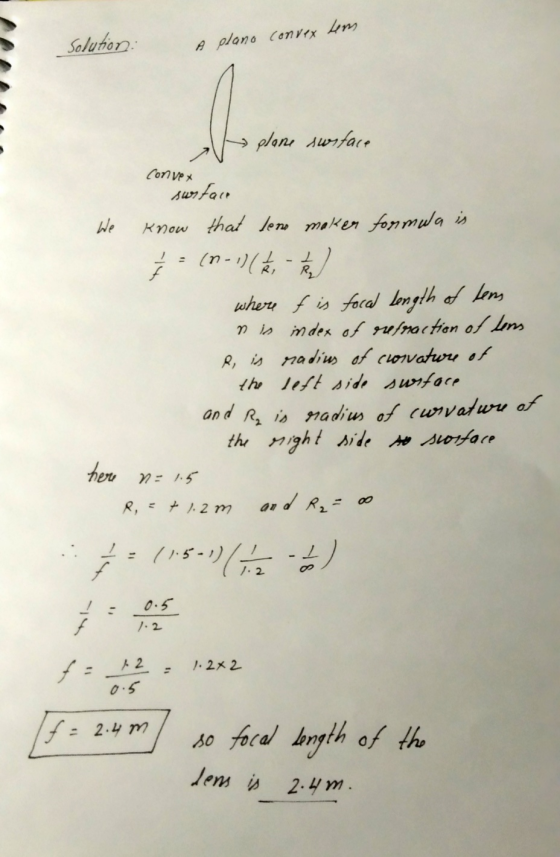

Answer #1

0 0
Add a comment
Know the answer?
Add Answer to:
A plano-convex lens is one with a convex surface on one side and a flat surface...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • For a diverging lens with one flat surface, the radius of curvature for the curved surface...

    For a diverging lens with one flat surface, the radius of curvature for the curved surface is 20.0 cm. What must the index of refraction be so that the focal length is -30.0 cm?

  • A meniscus lens is made with the radius of curvature of the convex surface being 45.0...

    A meniscus lens is made with the radius of curvature of the convex surface being 45.0 cm and the concave surface 25.0 cm. If the glass used has index of refraction 1.50, what is the focal length of this lens?

  • A contact lens has a convex and a concave side. The radius of curvature of the...

    A contact lens has a convex and a concave side. The radius of curvature of the convex side is 1.5 cm. The radius of curvature of the concave side is 1.6 cm. The lens material has an index of refraction of 1.7. What is the focal length of the contact lens? (in cm] Answer: What is the optical power of the contact lens? ſin D] Answer:

  • b) A plano-convex lens has a diameter of 400 mm and the central thickness of 40...

    b) A plano-convex lens has a diameter of 400 mm and the central thickness of 40 mm. The edge thickness is zero and the refractive index of glass is 1.5. The lens is free from spherical aberration. Find the following parameters of the lens: (i) the back focal distance; (ii) the radius of curvature of the back surface

  • You need to make a plano-concave lens with a focal length of +15 cm out of...

    You need to make a plano-concave lens with a focal length of +15 cm out of glass with an index of 1.60. Plano-concave means that one side is flat. You then form an image with the lens of an object that is 1 cm tall and that is 25 cm from the lens. (a) Find the radius of curvature of the curved side of the lens. (b) How far is the image formed from the lens? (e) How big is...

  • A plano-convex glass lens of radius of curvature 3 m rests on an optically flat glass...

    A plano-convex glass lens of radius of curvature 3 m rests on an optically flat glass plate. The arrangement is illuminated from above with monochromatic light of 569-nm wavelength. The indexes of refraction of the lens and plate are 1.6. Determine the radii of the first and second bright fringes in the reflected light. First bright fringe: m         [5 points] 2 attempt(s) made (maximum allowed for credit = 5) [after that, multiply credit by 0.5 up to 10 attempts]...

  • One side of a lens is concave with radius of curvature 30 cm. The other side...

    One side of a lens is concave with radius of curvature 30 cm. The other side is convex with radius of curvature 60 cm. The index of refraction of the lens is 1.6. What is the focal length of the lens? Group of answer choices 100 cm, converging 100 cm, diverging 33 cm, converging 33 cm, diverging

  • A "biconvex" lens is one in which both surfaces of the lens bulge outwards. Suppose you...

    A "biconvex" lens is one in which both surfaces of the lens bulge outwards. Suppose you had a biconvex lens with radii of curvature with magnitudes of |R1|=10cm and |R2|=15cm. The lens is made of glass with index of refraction nglass=1.5. We will employ the convention that R1 refers to the radius of curvature of the surface through which light will enter the lens, and R2 refers to the radius of curvature of the surface from which light will exit...

  • A candle name 9.10 cm from a lens produces a real image 13.30 cm from the...

    A candle name 9.10 cm from a lens produces a real image 13.30 cm from the lens. The lens has one flat side and one curved side, is made of glass with an index of refraction of 1.52, and is surrounded by air, (a) Calculate the focal length of the lens. Be sure to include the appropriate sign and units. (b) Calculate the radius of curvature of the curved side of the lens. (c) Is the curved side convex or...

  • A plano-convex lens is immersed in a liquid that has a refractive index n1. Derive the...

    A plano-convex lens is immersed in a liquid that has a refractive index n1. Derive the lens maker’s equation (shown below) in this situation assuming that n1 is smaller than the refractive index of the lens (nL). Lens maker equation: 1/f = (n1-1)/r   where f: focal length of lens and r: radius of curvature of lens
