An a.c. voltmeter with a maximum scale reading of 50-V has a resistance of 500 Ω...
An a.c. voltmeter with a maximum scale reading of 50-V
has a resistance of 500 Ω and an inductance
of 0.09 henry, The magnetising coil is wound with 50 turns of
copper wire and the remainder of the circuit is a
non-inductive resistance in series with it. What additional
apparatus is needed to make this instrument read
correctly on both d.c. circuits or frequency 60 ?

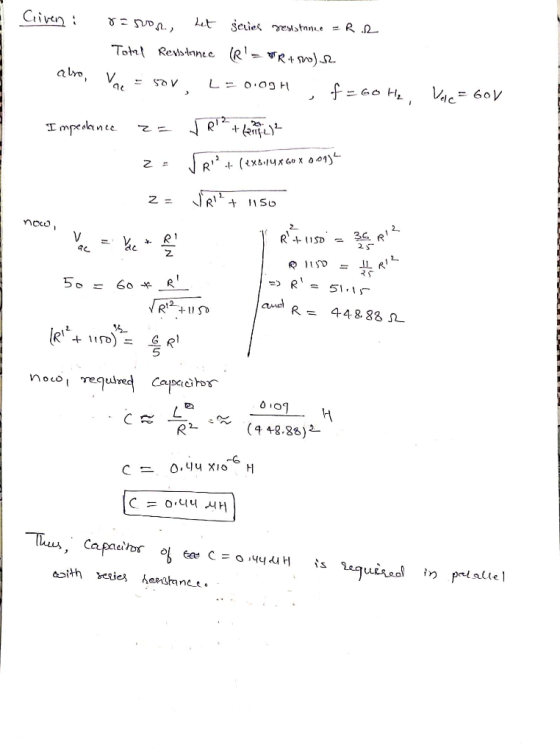

Homework Answers
Add Answer to:
An a.c. voltmeter with a maximum scale reading of 50-V
has a resistance of 500 Ω...
moving-coil instrument, used as a voltmeter, has a coil of 150 turns with a width of...
moving-coil instrument, used as a voltmeter, has a coil of 150 turns with a width of 3 cm and an active length of 3 cm. The gap flux density is 0.15 T. If the full-scale reading is 150 V and the total resistance of the instrument is 100 000 Ω, find the torque exerted by the control springs at full scale. coil of a moving-coil instrument is wound with 40 turns. The mean width of the coil is 4 cm...
The coil of wire in a galvanometer has a resistance of RC = 75.0 Ω. The...
The coil of wire in a galvanometer has a resistance of RC = 75.0 Ω. The galvanometer exhibits a full-scale deflection when the current through it is 0.200 mA. A resistor is connected in series with this combination so as to produce a voltmeter. The voltmeter is to have a full-scale deflection when it measures a potential difference of 14.0 V. What is the resistance of this resistor?
constant voltage source R W 2000 Coil represented by pure inductance and internal resistance L c*...
constant voltage source R W 2000 Coil represented by pure inductance and internal resistance L c* variable capacitor + Figure 10.1: Circuit for the LRC series resonance. The inductor in the circuit is a coil made of 1500 turns of copper wire. 1. Assume you have a coil made of a single loop of wire of radius, r, carrying a current, I. Find an expression for the magnetic field, B, at the centre of the loop. 2. If you now...
A 62.5 m length of insulated copper wire is wound to form a solenoid of radius 2.3 cm. The copper wire has a radius of 0.51mm. (Assume the resistivity of copper is ρ = 1.7 ✕ 10−8 Ω · m.) (a) What is t...
A 62.5 m length of insulated copper wire is wound to form a solenoid of radius 2.3 cm. The copper wire has a radius of 0.51mm. (Assume the resistivity of copper is ρ = 1.7 ✕ 10−8 Ω · m.) (a) What is the resistance of the wire? Ω (b) Treating each turn of the solenoid as a circle, how many turns can be made with the wire? turns (c) How long is the resulting solenoid? m (d) What is...
That's all I was given. 6) A series LRC circuit has resistance 400 Ω, inductance 0.900...
That's all I was given.
6) A series LRC circuit has resistance 400 Ω, inductance 0.900 H, and capacitance 2.50 μF The source voltage has a constant amplitude 90.0 V, but an adjustable frequency a) Determine the impedance of the circuit if the source has angular frequency (i) 1000 rad/s, (i) 750 rad/s, and (ii) 500 rad/s. b) Determine the resonance angular frequency c) Describe (qualitatively) the change in the current amplitude as the 2 angular frequency is slowly adjusted...
Electrical Instrumentation and Measurements
1. (a) i. Briefly explain the three (3) main functions of instruments and give examples each. ii. Explain loading effects in a measurement system.(b) A Maxwell bridge in Fig 1 below is used to measure an inductive impedance. The bridge constants at balance are:R1 = 235 kΩ, C1 = 0.012 µF, R2 = 2.5 kΩ, R3 = 50 kΩFind the series equivalent of the unknown impedance. 2. (a) The power input to a 3-phase induction...
A solenoid made of magnet wire (#20 gauge) with 12.3 turns per cm is attached to...
A solenoid made of magnet wire (#20 gauge) with 12.3 turns per cm is attached to a 536 Ω resistor and a 110 V DC source. The diameter of the solenoid is 1.8 cm and its length is 15 cm a. (5 points) What is the self-inductance of the solenoid? b. (5 points) The emf induced in the solenoid depends on a changing current. After a long time the current will stop changing, and the only voltage drop in the...
Notes for lab dc02-Resistors and the Color Code will skip are Part 2 e, g: Part 4; Exercises 2, 4,5,6 an...
Notes for lab dc02-Resistors and the Color Code will skip are Part 2 e, g: Part 4; Exercises 2, 4,5,6 and 3. It is important to answer the exercises correctly in each labl you should include the appropriate prefix for the unit in the Numerical Value We will not be Volt using the Volt-Ohm meter (VOM) for this lab, so skip the parts that ask for VOM measurements. The parts we You do need to complete Exercises1 Note that in...
constant voltage source R W 2000 Coil represented by pure inductance and internal resistance L c* variable capacitor + Figure 10.1: Circuit for the LRC series resonance. The inductor in the circuit is a coil made of 1500 turns of copper wire. 1. Assume you have a coil made of a single loop of wire of radius, r, carrying a current, I. Find an expression for the magnetic field, B, at the centre of the loop. 2. If you now...
That's all I was given.
6) A series LRC circuit has resistance 400 Ω, inductance 0.900 H, and capacitance 2.50 μF The source voltage has a constant amplitude 90.0 V, but an adjustable frequency a) Determine the impedance of the circuit if the source has angular frequency (i) 1000 rad/s, (i) 750 rad/s, and (ii) 500 rad/s. b) Determine the resonance angular frequency c) Describe (qualitatively) the change in the current amplitude as the 2 angular frequency is slowly adjusted...
A solenoid made of magnet wire (#20 gauge) with 12.3 turns per cm is attached to a 536 Ω resistor and a 110 V DC source. The diameter of the solenoid is 1.8 cm and its length is 15 cm a. (5 points) What is the self-inductance of the solenoid? b. (5 points) The emf induced in the solenoid depends on a changing current. After a long time the current will stop changing, and the only voltage drop in the...
Notes for lab dc02-Resistors and the Color Code will skip are Part 2 e, g: Part 4; Exercises 2, 4,5,6 and 3. It is important to answer the exercises correctly in each labl you should include the appropriate prefix for the unit in the Numerical Value We will not be Volt using the Volt-Ohm meter (VOM) for this lab, so skip the parts that ask for VOM measurements. The parts we You do need to complete Exercises1 Note that in...
