A Red Rider bb gun uses the energy in a compressed spring to provide the kinetic...

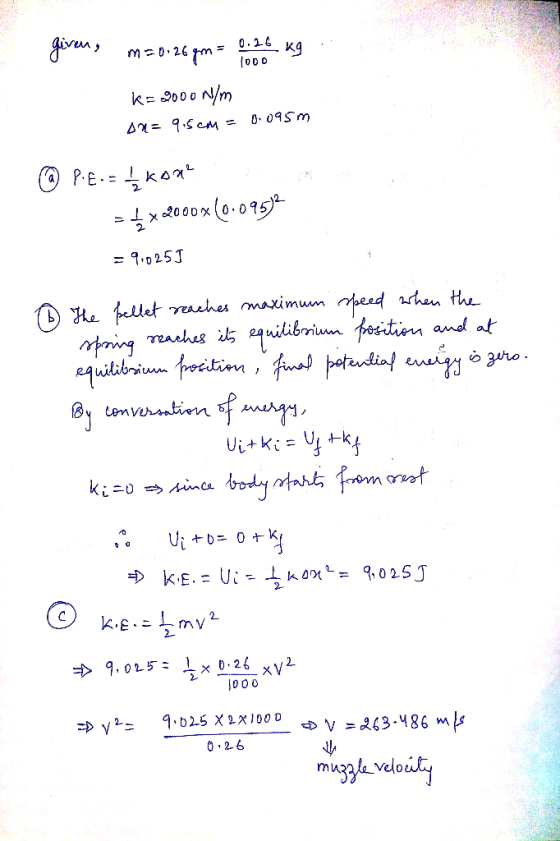

A Red Rider bb gun uses the energy in a compressed spring to provide the kinetic energy for propelling a small pellet of mass 0.26 grams. By cocking the lever attached to the stock of the rifle, the spring (k = 2000 N/m) is compressed 9.5 cm from its equilibrium point. What is the potential energy energy stored in the compressed spring? A: 3.6966 B: 4.6208 C: 5.7760 D: 7.2200 E: 9.0250 J

What is the kinetic energy of the pellet when the spring is released? A: 3.6966 B: 4.6208 C: 5.7760 D: 7.2200 E: 9.0250 J

What is the muzzle velocity of the bb? A: 198.1072 B: 263.4826 C: 350.4318 D: 466.0744 E: 619.8789 m/s

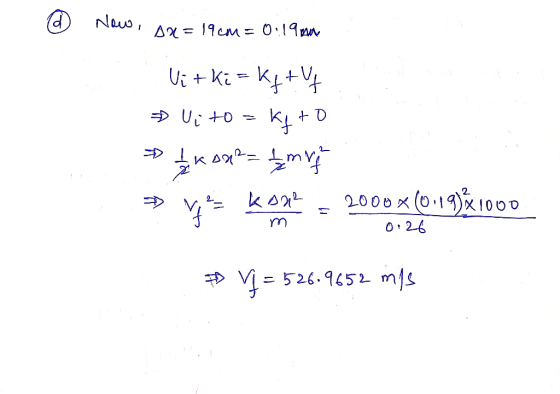

If the rifle was modified so that the spring could be compressed twice as far, 19 cm, what would be the resultant muzzle velocity of the bb? A: 384.9552 B: 450.3976 C: 526.9652 D: 616.5493 E: 721.3626

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

0 0
Add a comment
