A 0.400-kg copper rod rests on two horizontal rails 0.800 m apart and carries a current...

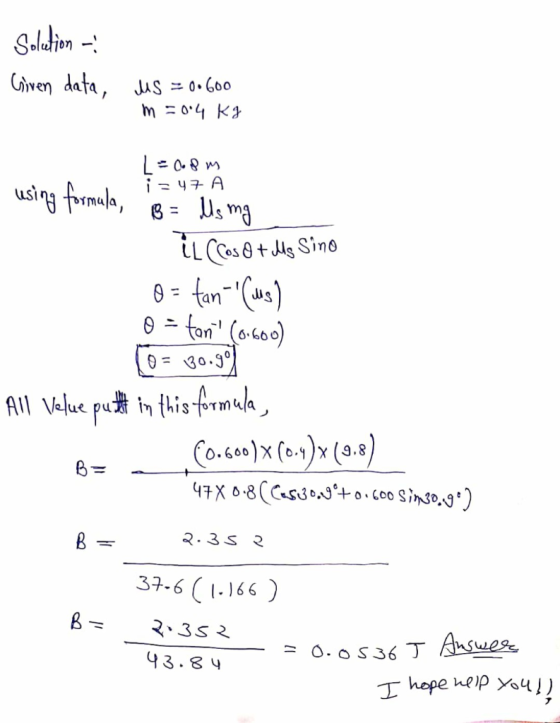

A 0.400-kg copper rod rests on two horizontal rails 0.800 m apart and carries a current of 47.0 A from one rail to the other. The coefficient of static friction between rod and rails is 0.600. What is the magnitude and direction of the smallest magnetic field that puts the rod on the verge of sliding? Give the direction relative to the vertical. Magnitude: Direction:
Homework Answers
