What are the functional groups and a possible structure for this IR? double weak peak at...
What are the functional groups and a possible structure for this IR?

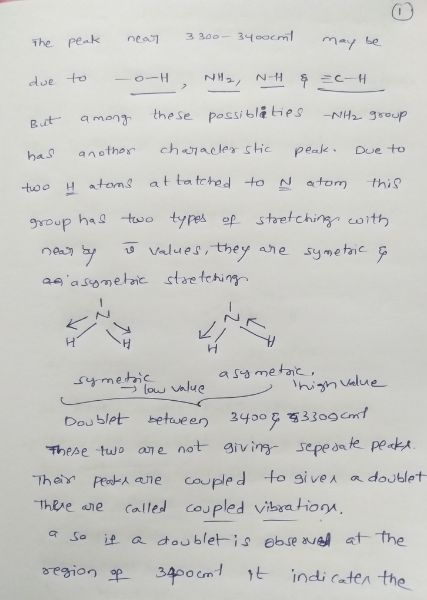

double weak peak at 3300-3400 cm-1

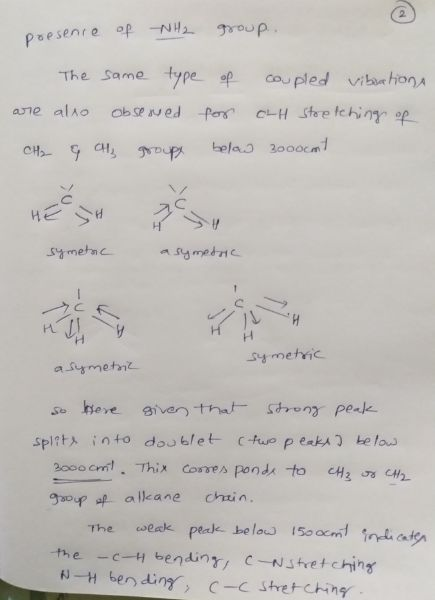

strong peak (broken into two peaks) just below 3000 cm-1
weak peak just below 1500 cm-1
Homework Answers
Add Answer to:
What are the functional groups and a possible structure for this
IR?
double weak peak at...
What are the functional groups in the IR and a possible structure? medium peak at 3400...
What are the functional groups in the IR and a possible structure? medium peak at 3400 cm-1 strong peak just below 3000 cm-1 medium peak just below 1500 cm-1
6. Figure 21.13 (page 324) shows the IR spectrum of polystyrene. Which functional groups are present...
6. Figure 21.13 (page 324) shows the IR spectrum of polystyrene. Which functional groups are present in polystyrene? Which bands tell you this information? (give approximate wavenumbers) Transmission IR ATR IR 500 4000 3500 3000 2500 2000 1500 1000 Wavenumbers (cm) FIGURE 21.13 Comparison of (top) a transmission spectrum of polystyrene with (bottom) an ATR spectrum of polystyrene. Strong peak between 1820-1600 cm 1? YES NO Carbonyl Present Look for "companion" peaks broad 3400-2400 cm! (O-H) Carboxylic Acid medium (maybe...
Functional Groups Alcohol O-H Wavelength range, cm-1 3000-3500 Signal strength Broad peak Carboxylic acid O-H 2500-3500...
Functional Groups Alcohol O-H Wavelength range, cm-1 3000-3500 Signal strength Broad peak Carboxylic acid O-H 2500-3500 Broad peak Amine N-H 3300-3500 Broad but half the size of OH Alkyl -C-H 2850-3000 Sharp, medium Alkene =C-H 3000-3100 Sharp, medium 3200-3300 Sharp, strong Sharp, weak Alkyne CEC 2100-2300 Nitrile CEN 2100-2300 Sharp, strong Carbonyl C=0 1650-1750 Sharp, strong Alkene C=C 1600-1650 Sharp, strong Aromatic C=C 1450-1600 Sharp, strong on : The followings are IR spectra of benzocaine, trans-cinnamic acid and biphenyl. Identify...
Please identify the main functional groups in the IR spectra of two different molecules. I can't...
Please identify the main functional groups in the IR spectra of
two different molecules.
I can't figure out what the peaks in these IR signify. I don't
understand what the peak in the 3400 cm area of the second IR
is.
95 85 C(CH3)3 80 C(CH3)3 N OH 75- 'N OH C(CH3)3 70- C(CH3)3 65 60 4000 3750 3500 3250 3000 2750 2500 2250 2000 1750 1500 1250 1/cm 95 C(CH3)3 85 C(CHa)3 N C Mn Cl 80 75 70...
Functional Groups Alcohol O-H Wavelength range, cm-1 3000-3500 Signal strength Broad peak Carboxylic acid O-H 2500-3500...
Functional Groups Alcohol O-H Wavelength range, cm-1 3000-3500 Signal strength Broad peak Carboxylic acid O-H 2500-3500 Broad peak Amine N-H 3300-3500 Broad but half the size of OH Alkyl -C-H 2850-3000 Sharp, medium Alkene =C-H 3000-3100 Sharp, medium Sharp, strong 3200-3300 2100-2300 Alkyne CEC Sharp, weak Nitrile CEN 2100-2300 Sharp, strong Carbonyl C=0 1650-1750 Sharp, strong Alkene C=C 1600-1650 Sharp, strong Sharp, strong Aromatic CEC 1450-1600 IR of trans-cinnamic acid (10 points): 2.500-350 15 00 3067 3017 1686 OH: _...
not sure if these answers are correct or not Question 8 (2 points) Saved In IR...
not sure if these answers are correct or not
Question 8 (2 points) Saved In IR spectra of esters with no other functional groups, which of the following IR peaks will be present? Select ALL that apply. broad peak around 3300 cm strong and sharp peak around 1750 cm double peak at about 2800 and 2700 cm 1 strong peak at around 1100-1250 cm 1 (sometimes absent or blended into other peaks) medium sharp peak at 2100-2300 cm-1 Which of...
what are the functional groups, structural feature and proposed structure of this graph below. IR of...
what are the functional groups, structural feature and
proposed structure of this graph below.
IR of C7H5ClO2
70 Iralisme 4000 3500 3000 2883.18 2822.78 2649.29 2500 Wavenumbers (cm-1) 2156.15 2000 1946.373 1682.62 1500 1591.04 1570 57 1473.92 1408.42 1436.66 1311.51 1286 27 1265.19 1172.31 1149.98 1125.89 1000 1051.08 1043.48 955.63 911.19 815.05 792.35 741.65 708.87 557 26
From the IR spectrum shown below, suggest functional groups that you recognized, and with the peak...
From the IR spectrum shown below, suggest functional groups that you recognized, and with the peak (wave number, 1/cm group test you would use. also suggest which functional INFRARED SPECTRUM Transmitance 3000 2000 1000
Use the following correlation chart to help answer the IR spectrum questions: small range range of...
Use the following correlation chart to help answer the IR spectrum questions: small range range of values N-H -O-H-CEN usually broad peak C-o strong 1600-1660 EC-H 3250-3300 2200 1680 gco sco 2710- 2820 2 peaks 3000- 3100 CECH (N-H C-H 1730 2200 broad with spikes --3300 O-H 1600 2850- 2960 1710 broad-3300-3400 -CO-H broad-3000 1650 4000 3500 3000 2000 1500 2500 wavenumber, cm 1000 1. (2 pts.) Shown below are IR spectra of cyclohexanecarbaldehyde (I) and cyclohexene (II). Which of...
Assign functional groups/vibrations (bending, stretching) to each peak for the computational IR spectrum for carbon dioxide...
Assign functional groups/vibrations (bending, stretching) to
each peak for the computational IR spectrum for carbon dioxide
shown below. From left to right the peak numbers are 1485 cm^-1,
864.5 cm^-1, and 644 cm^-1.
.
40 Transmittar 3000 1000 2000 Wavenumber (cm-1)
6. Figure 21.13 (page 324) shows the IR spectrum of polystyrene. Which functional groups are present in polystyrene? Which bands tell you this information? (give approximate wavenumbers) Transmission IR ATR IR 500 4000 3500 3000 2500 2000 1500 1000 Wavenumbers (cm) FIGURE 21.13 Comparison of (top) a transmission spectrum of polystyrene with (bottom) an ATR spectrum of polystyrene. Strong peak between 1820-1600 cm 1? YES NO Carbonyl Present Look for "companion" peaks broad 3400-2400 cm! (O-H) Carboxylic Acid medium (maybe...
Functional Groups Alcohol O-H Wavelength range, cm-1 3000-3500 Signal strength Broad peak Carboxylic acid O-H 2500-3500 Broad peak Amine N-H 3300-3500 Broad but half the size of OH Alkyl -C-H 2850-3000 Sharp, medium Alkene =C-H 3000-3100 Sharp, medium 3200-3300 Sharp, strong Sharp, weak Alkyne CEC 2100-2300 Nitrile CEN 2100-2300 Sharp, strong Carbonyl C=0 1650-1750 Sharp, strong Alkene C=C 1600-1650 Sharp, strong Aromatic C=C 1450-1600 Sharp, strong on : The followings are IR spectra of benzocaine, trans-cinnamic acid and biphenyl. Identify...
Please identify the main functional groups in the IR spectra of
two different molecules.
I can't figure out what the peaks in these IR signify. I don't
understand what the peak in the 3400 cm area of the second IR
is.
95 85 C(CH3)3 80 C(CH3)3 N OH 75- 'N OH C(CH3)3 70- C(CH3)3 65 60 4000 3750 3500 3250 3000 2750 2500 2250 2000 1750 1500 1250 1/cm 95 C(CH3)3 85 C(CHa)3 N C Mn Cl 80 75 70...
Functional Groups Alcohol O-H Wavelength range, cm-1 3000-3500 Signal strength Broad peak Carboxylic acid O-H 2500-3500 Broad peak Amine N-H 3300-3500 Broad but half the size of OH Alkyl -C-H 2850-3000 Sharp, medium Alkene =C-H 3000-3100 Sharp, medium Sharp, strong 3200-3300 2100-2300 Alkyne CEC Sharp, weak Nitrile CEN 2100-2300 Sharp, strong Carbonyl C=0 1650-1750 Sharp, strong Alkene C=C 1600-1650 Sharp, strong Sharp, strong Aromatic CEC 1450-1600 IR of trans-cinnamic acid (10 points): 2.500-350 15 00 3067 3017 1686 OH: _...
not sure if these answers are correct or not
Question 8 (2 points) Saved In IR spectra of esters with no other functional groups, which of the following IR peaks will be present? Select ALL that apply. broad peak around 3300 cm strong and sharp peak around 1750 cm double peak at about 2800 and 2700 cm 1 strong peak at around 1100-1250 cm 1 (sometimes absent or blended into other peaks) medium sharp peak at 2100-2300 cm-1 Which of...
what are the functional groups, structural feature and
proposed structure of this graph below.
IR of C7H5ClO2
70 Iralisme 4000 3500 3000 2883.18 2822.78 2649.29 2500 Wavenumbers (cm-1) 2156.15 2000 1946.373 1682.62 1500 1591.04 1570 57 1473.92 1408.42 1436.66 1311.51 1286 27 1265.19 1172.31 1149.98 1125.89 1000 1051.08 1043.48 955.63 911.19 815.05 792.35 741.65 708.87 557 26
From the IR spectrum shown below, suggest functional groups that you recognized, and with the peak (wave number, 1/cm group test you would use. also suggest which functional INFRARED SPECTRUM Transmitance 3000 2000 1000
Use the following correlation chart to help answer the IR spectrum questions: small range range of values N-H -O-H-CEN usually broad peak C-o strong 1600-1660 EC-H 3250-3300 2200 1680 gco sco 2710- 2820 2 peaks 3000- 3100 CECH (N-H C-H 1730 2200 broad with spikes --3300 O-H 1600 2850- 2960 1710 broad-3300-3400 -CO-H broad-3000 1650 4000 3500 3000 2000 1500 2500 wavenumber, cm 1000 1. (2 pts.) Shown below are IR spectra of cyclohexanecarbaldehyde (I) and cyclohexene (II). Which of...
Assign functional groups/vibrations (bending, stretching) to
each peak for the computational IR spectrum for carbon dioxide
shown below. From left to right the peak numbers are 1485 cm^-1,
864.5 cm^-1, and 644 cm^-1.
.
40 Transmittar 3000 1000 2000 Wavenumber (cm-1)
