Question

An electrical power system is mainly formed of: 

Generation

Transmission

Distribution

write a report (typed text only) hand written isn't allowed

The report(text written) contains:

introduction

abstract

body contains information

conclusion(if needed)

you can support by online photos (not hand written)

Answer 1

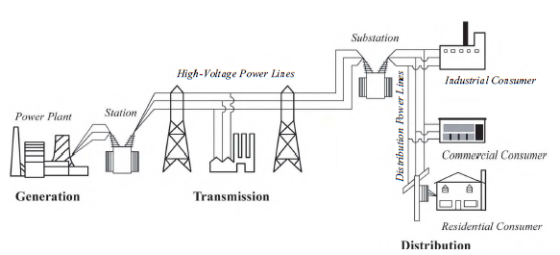

Electrical Power Systems

Introduction :- An electrical power system is a network of electrical equipment used for the production, transmission and usage of electrical electricity. The grid which provides power to an extended region is an example of an electric power network. The electricity grid power system may be commonly separated into the generators providing the power, the transmission infrastructure bringing the power from the generation centers to the load centers, and the delivery system delivering the power to local homes and factories. These are many smaller control structures in factories, schools, office facilities, and residences. The majority of such systems depend on three-phase AC technology— the requirement for the transmission and distribution of large-scale electricity in the developed world. In ships, electrical rail networks, ocean liners and vehicles, advanced control networks that do not often depend on three-phase AC technology are identified.

Abstract :- Today any sort of a transmission and distribution network operates in all countries in the world that use electricity as an important source of light and resources. All devices bear electrical current, though at differing voltages, and are related. We are part of the bulk transport and distribution network that basically transports and distributes the generated electrical energy to end consumers from primary energy sources. The only significant variations between the two programs are focused on their understanding of end usage and features. Transmission systems provide the bulk transport pathways for electrical resources from generation centers located close primary energy sources to major load centers within a wide geographic region, thus enabling productive and effective transmission of bulk electricity. On the other side, delivery networks are associated with the supply of electrical resources within a limited metropolitan region to specific consumers. In this way, a distribution network can have multiple supply points from one or more transmission systems and/or components of a transmission system to its main load centres, the final form of the device structure based on the nature and demand trend within its regional region. It is often popular to interconnect transmission networks to allow for mutual economic gains and organizational access to power generation.

Generation :-

Electrical control was accessible from batteries with minimal voltage and current rates prior to the development of Faraday's Laws of electromagnetic debate. While complicated in design, D.C generators were first built to produce electricity in bulk. Nevertheless, because of the D.C machine's disadvantage in producing voltage above a few hundred volts, transferring vast quantities in electricity over a long distance was not economical. The current magnitude (I= P / V) will be perfect for a given amount of electricity, hence the copper conductor portion will be high. Thus the production, transmission and distribution of d.c power was confined to the region of a few kilometers of radius without interconnections between the generating plants. Therefore, it was important to use area-specific generating stations along with its distribution networks.

The location where electricity produced by the three phase alternators / generators linked in parallel is called Generating Station (i.e. power plant).

The standard power plant capability and voltage output could be 11kV, 11.5 kV, 12kV, or 13kV. But economically, it is good to raise the voltage provided by Step Up Transformer (power Transformer) from (11kV, 11.5kV or 12 kV) to 132kV, 220kV or 500kV or more (in certain countries, to 1500kV).

Generation is the portion of the power system in which any sort of energy is transformed into electrical energy. It is the primary supply of the electric grid. Continues to ride all the way. Depending on the form of station and the generators used it produces electricity at varying voltage and load speeds. At voltage level, the highest number of generators produces the electricity about11kV-20kV. The increased voltage level results in higher generator size needed and thus the costs involved.

Presently the generating stations we employ mainly over the world are following :-

1. Thermal power plant
2. Hydel power plant (Hydro-electric)
3. Nuclear power plant
4. Diesel power plant
5. Gas power plant
6. Solar power plant
7. Tidal power plant
8. Wind power plant.

The plant is therefore designed for managing the load. This categorisation is essential for the production of the standard of resources. This is also necessary, since the electricity must be produced at the same moment when the load takes up the power. And, when we know the form of load at the station and average amount of load, various types of generating system are selected.

For example; Thermal plant, Hydel plant, Nuclear plant, Solar plant, Wind plant, and Tidal plant are selected to manage base load on the grid while Gas plants, Diesel plants are used to manage peak load demand. This is primarily driven by the essence of the time that they take in beginning the power distribution cycle. Base load plants take longer to produce the power when peak load plants have to operate very quickly to meet the market.

Transmission:-

With two primary factors, high-voltage transmission lines transmit electricity even more effectively over large distances than the low-voltage distribution lines. First, the power calculation results from high-voltage transmission lines, that is, electricity is proportional to the voltage times present. Hence, raising the voltage calls for the same volume of electricity to reduce the output. Secondly, because transport losses are a feature of the square of the current moving through the conductors, increasing the voltage to increase the current significantly decreases transport losses. Besides, raising the current requires smaller types of conductors to be used.

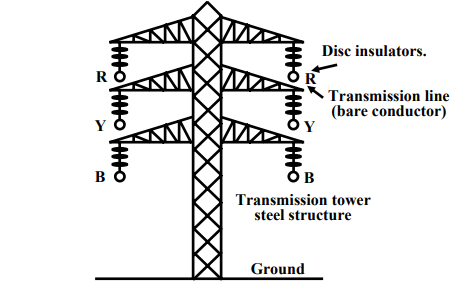

The enormous amount of power produced in a power plant (hundreds of MW) is to be transferred over a long distance (hundreds of kilometers) to load centers with the aid of transmission line and transmission towers as seen in figure to provide electricity to consumers.

Primary Transmission: The electrical supply (in 132kV, 220 kV, 500kV or higher) is distributed overhead transmission network to the load center via three phase three wire (3 Phase – 3 Wires also known as Delta connection). As the voltage level produced is around (11-20) kV and the demand is at various voltage rates and locations quite far from the generating station. The generating station, for example, will produce voltage at 11kv, but the load center is 1000 km away, only at 440V. So an mechanism must be available for the transmission of electrical resources over such a long distance to make it feasible. The transmission grid is also necessary for the supply of electric power. It is rendered possible by utilizing the different-length transmission lines. For nearly any situation there are overhead transmission cables. A few examples exist where crossing an ocean is required. Therefore, the usage of submarine cables is required.

However, as the network expanded and demand for load increased, the difficulty in this phase became quite complicated. During low voltage, the volume of current passing through the wire with high load demand is higher, and thus the voltage decrease due to the transmission line's resistance and reaction is very important. This contributes to more drops in the transmission lines and lowering of voltage at the end of the load.

Secondary Transmission:

Zone far from the city that was linked by lines to the receiving stations is considered secondary transmission. At the receiving point, the voltage level lowered by step-down transformers up to 132kV, 66 or 33 kV and the electrical power is transmitted to separate substations by three phase three wire (3 Phase–3 Wires) overhead grid.

Substations :

Substations are locations where with the aid of transformers the voltage level undergoes transition. A substation would contain switches (called circuit breakers), meters, secure relays and other control devices besides transformers. Broadly speaking, a broad substation absorbs electricity via a transformer through incoming lines at certain voltage (say 400 kV) adjusts voltage level (say to 132 kV) and then channels it out via outgoing lines.

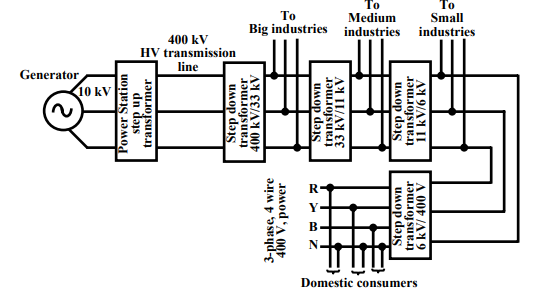

Pictorially such a signature control network as seen in a brief block diagram in figure. For domestic connections, 4-wire device is implemented at the lowest voltage level of 400 V, usually3-phase.The fourth wire is named the neutral wire (N), which is pulled out of the secondary of the 6 kV/400 V delivery transformer from the specific point of the attached light.

Distribution :-

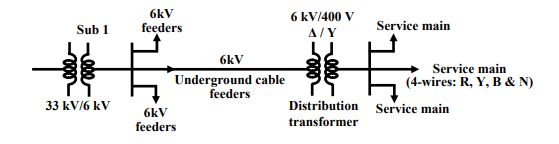

Electricity reception at a substation of 33 kV is first scaled down to 6 kV and, with the aid of underfloor cables (called feeder lines), electricity flow is guided to different city directions. At  the last level, step down transformers are used to step down the voltage form 6 kV to 400 V. These transformers are called distribution transformers with 400 V, star connected secondary. We may have seen these transformers installed alongside the roads on poles in towns. They are called substations installed on the shaft. 4 terminals (R, Y, B, and N) come out from the secondary of such transformers. N is considered the neutral, which is separated from the secondary associated star common point.

The voltage for every two phases (i.e. R-Y, Y-B and B-R) is 400 V, and 230 V (= 400 )is between either phase and neutral. Residential buildings are equipped with 230V, 50Hz single-phase installation. And it is provided separately for each of the processes and neutrally. Supply authority seeks to insure that the loads are, as far as possible, evenly distributed between stages.

Primary Distribution :

At a sub-station the secondary transmission voltage standard (132kV, 66 or 33 kV) was lowered by phase down transforms to 11kV. Generally, electrical service is given to certain heavy load users (commercial power service for inductors) where the requirement is 11 kV, from the 11kV carriage lines (three-phase wire overhead system) and they create a different sub-station to control and utilize heavy power in industry and factories. In some situations, the market for heavy (larger-scale) load users is up to 132 kV or 33 kV and electrical supply provided them directly via secondary transmission or main delivery (in 132 kV, 66kV or 33kV) and then move down the voltage stage for use by step-down transformers at their own substation (i.e. for electrical traction, etc.).

Secondary Distribution :

The electric power transmission is defined as secondary delivery (from the main distribution line i.e.11kV) to the distribution sub-station. This sub-station is located close domestic & customer regions, where the voltage level is raising by phase down transformers to 440V. Such transformers are called Transmission transformers, three-phase four wire network (3-phase-4 wire connection). And for either two phases and 230 volts (single phase input) between a neutral and point (live) cables, there are 400 volts (three step delivery system).
