When plugged into a standard U.S. outlet (120 V), a motor draws 0.750 A of current. If this motor is 35% efficient, how long does it take for this motor to lift an object with a mass of 2.90 kg to a height of 3.00 m?
THE ANSWER SHOULD BE 2.71 SECONDS. PLEASE EXPLAIN STEP BY STEP AND WHY IF YOU COULD.
given that
potential difference V = 120 V
current i = 0.75 A
mass m = 2.9 kg
height h = 3 m
from the relation power p = V*i
p = 120*0.75 = 90 W
but the efficiency is 35%
so power p = 0.35*90 = 31.5 W
power p = energy/time
p = mgh/t
time t = 2.9*9.8*3/31.5
t = 2.71 sec
When plugged into a standard U.S. outlet (120 V), a motor draws 0.750 A of current....

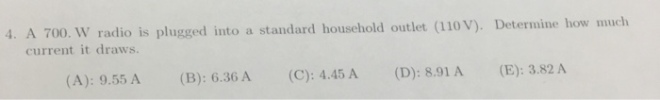

4. A 700. W radio is current it draws. plugged into a standard household outlet (110 V). Determine how much (A): 9.55 A (B): 6.36A (C): 4.45 A (D): 8.91 A (E): 3.82 A
