An analog ohmmeter based on moving coil instrument is designed using with full-scale deflection angle of...

An analog ohmmeter based on moving coil instrument is designed using with full-scale deflection angle of 120 degrees, moving coil resistance of 50 Ω, a 9V battery and a series resistance. Calculate the value of the series resistance such that the half-scale deflection corresponds to a measured resistance of 10 kΩ.

engineering   Electrical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

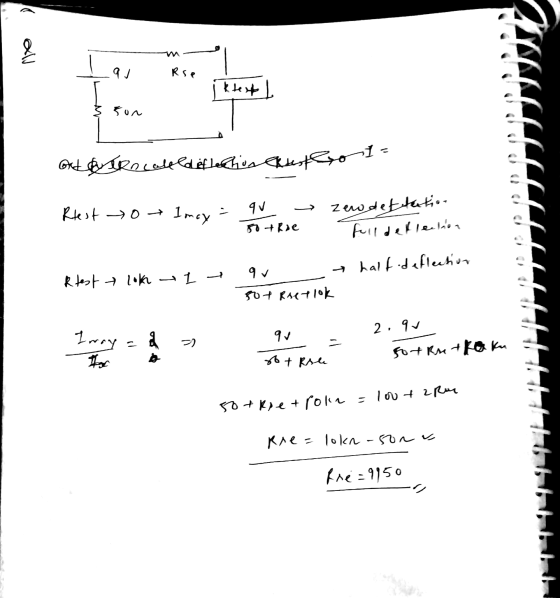

Answer #1

0 0
Add a comment
