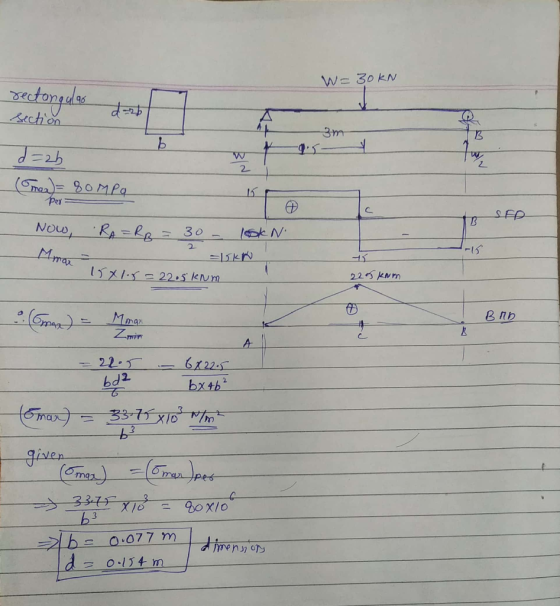

A beam, 3 m long, is simply supported at its ends and is to carry a...
Homework Answers
Add Answer to:
A
beam, 3 m long, is simply supported at its ends and is to carry a...
A simply supported wood beam AB with span length L = 6 m
A simply supported wood beam AB with span length L = 6 m carries a trapezoidal distributed load of intensity q = 4 kN/m at the left end and q/2 at the right end. Calculate the maximum bending stress Omax due to the load if the beam has a rectangular cross section with width b = 150 mm and height h = 250 mm.
A simply supported wood beam of rectangular cross section and span length 2 m carries a...
A simply supported wood beam of rectangular cross section and span length 2 m carries a uniformly distributed load of intensity 9 = 1 kN/m as shown. Calculate the maximum bending stress and the maximum shear stress in the beam.
A 5-m-long simply supported timber beam carries two concentrated loads as shown dimensions of the beam...
A 5-m-long simply supported timber beam carries two concentrated loads as shown dimensions of the beam are shown a) At section a-a e the magnitude of the shear stress in the beam at point H. -7748 KNIm in the beam at point K the beam, at any location within the 5-m span length. V occurs in the beam at any location within the 5-m span length.)diagr. the magnitude of the shear stress (b) At section a-a, (e) Determine the maximum...
The cross-section of an idealized I-section beam has overall dimensions 120 mm x 240 mm deep....
The cross-section of an idealized I-section beam has overall dimensions 120 mm x 240 mm deep. If the web and flange are both 25 mm thick, determine the second moment of area of the section. If the maximum bending stress is limited to 100 MN/m2, determine the maximum load the cross-section can support at mid-span when it is used as a beam 2.5 m long and simply supported at the ends.
For a beam of rectangular cross section, height b, depth d, is simply supported (by pin...
For a beam of rectangular cross section, height b, depth d, is simply supported (by pin joints at each end) over a span of length L and carries a point load W at mid span. Determine the distribution and maximum value of the normal stress.
A loaded beam ABCDE is simply supported at B and D and carries point loads of...
A loaded beam ABCDE is simply supported at B and D and carries point loads of 40 kN, 80 kN, and 60 kN at A, C, and E respectively, together with a uniformly distributed load of 20 kN/m between B and D. AB = DE = 1 m, and BC = CD = 4 m. Find the dimensions of a suitable W – Shape beam to restrict the maximum bending stress in the beam to 140 N/mm2. Ignore the mass...
An 6.5m span simply supported beam is laterally unsupported between both ends . The beam bent...
An 6.5m span simply supported beam is laterally unsupported between both ends . The beam bent about its majo r axis and is subject to a transverse distributed factored load of 10 kN/m (including a self weight allowance). It is required to find an economic section to carry the given loads. (Fy=350MPa).
7.26 Torking stress in either tension or compression is AMS. 92.8 mm x 185.6 mm o MPa. am 3 m long is simply supported at each end and carries a uniformly distributed load of 10 kN/m. The beam...
7.26
Torking stress in either tension or compression is AMS. 92.8 mm x 185.6 mm o MPa. am 3 m long is simply supported at each end and carries a uniformly distributed load of 10 kN/m. The beam at rectangular cross section, 75 mm x 150 mm. Determine the magnitude and location of the peak bending ress. Also, find the magnitude of the bending stress at a point 25 mm below the upper surface at the section midway betwcen supports....
Q2 A simply supported beam of length L = 10 m carries both a uniformly distributed...
Q2 A simply supported beam of length L = 10 m carries both a uniformly distributed load wy of 10 kN/m and a non-uniformly distributed load with a maximum value of w2 =10 kN/m at its roller support, as shown in Figure Q2 (a). The beam is made from a I-section and the thickness for all the three rectangular members is of 10 mm. All other dimensions are illustrated in Figure 02 (b). Self-weight of the beam is neglected. 300...
A simply supported wood beam with a span of L = 16 ft supports a uniformly...
A simply supported wood beam with a span of L = 16 ft
supports a uniformly distributed load of w0 =
305 lb/ft. The allowable bending stress of the wood is 1.30 ksi. If
the aspect ratio of the solid rectangular wood beam is specified as
h/b = 1.75, calculate the minimum width
b that can be used for the beam.
A simply supported wood beam with a span of L = 16 ft supports a uniformly distributed load of...
A 5-m-long simply supported timber beam carries two concentrated loads as shown dimensions of the beam are shown a) At section a-a e the magnitude of the shear stress in the beam at point H. -7748 KNIm in the beam at point K the beam, at any location within the 5-m span length. V occurs in the beam at any location within the 5-m span length.)diagr. the magnitude of the shear stress (b) At section a-a, (e) Determine the maximum...
For a beam of rectangular cross section, height b, depth d, is simply supported (by pin joints at each end) over a span of length L and carries a point load W at mid span. Determine the distribution and maximum value of the normal stress.
7.26
Torking stress in either tension or compression is AMS. 92.8 mm x 185.6 mm o MPa. am 3 m long is simply supported at each end and carries a uniformly distributed load of 10 kN/m. The beam at rectangular cross section, 75 mm x 150 mm. Determine the magnitude and location of the peak bending ress. Also, find the magnitude of the bending stress at a point 25 mm below the upper surface at the section midway betwcen supports....
Q2 A simply supported beam of length L = 10 m carries both a uniformly distributed load wy of 10 kN/m and a non-uniformly distributed load with a maximum value of w2 =10 kN/m at its roller support, as shown in Figure Q2 (a). The beam is made from a I-section and the thickness for all the three rectangular members is of 10 mm. All other dimensions are illustrated in Figure 02 (b). Self-weight of the beam is neglected. 300...
A simply supported wood beam with a span of L = 16 ft
supports a uniformly distributed load of w0 =
305 lb/ft. The allowable bending stress of the wood is 1.30 ksi. If
the aspect ratio of the solid rectangular wood beam is specified as
h/b = 1.75, calculate the minimum width
b that can be used for the beam.
A simply supported wood beam with a span of L = 16 ft supports a uniformly distributed load of...
