A parallel-plate capacitor has plates with an area of 430 cm2 and an air-filled gap between...
A parallel-plate capacitor has plates with an area of 430 cm2 and an air-filled gap between the plates that is 2.50 mm thick. The capacitor is charged by a battery to 600 V and then is disconnected from the battery.

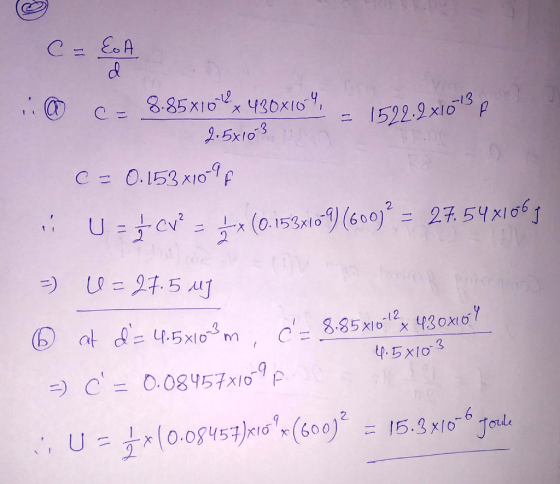

a.) How much energy is stored in the capacitor? I did this and got 27.4 micro joules which is corrrect.
b.) The separation between the plates is now increased to 4.50 mm . How much energy is stored in the capacitor now? HELP
