In a location where the speed of sound is 342 m/s, a 2 000-Hz sound wave...

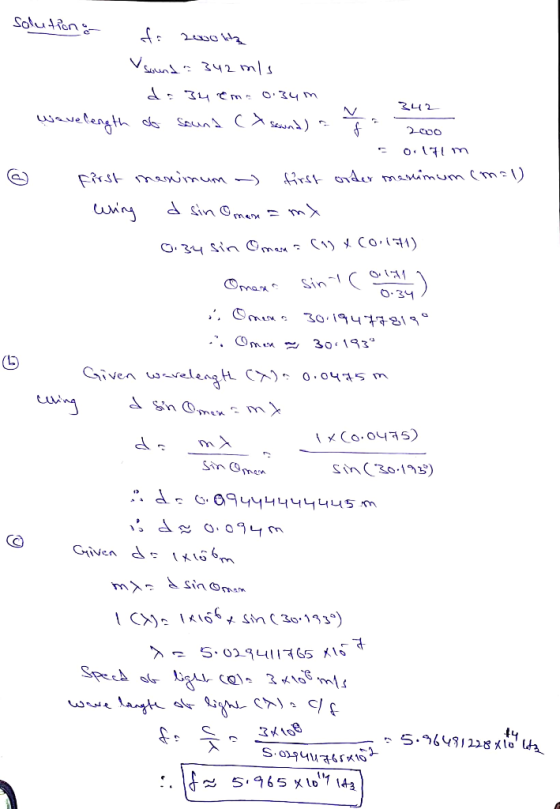

In a location where the speed of sound is 342 m/s, a 2 000-Hz sound wave impinges on two slits 34.0 cm apart.
(a) At what angle is the first maximum of sound intensity located?
(b) If the sound wave is replaced by 4.75-cm microwaves, what slit separation gives the same angle for the first maximum of microwave intensity?
(c) If the slit separation is 1.00 µm, what frequency of light gives the same angle to the first maximum of light intensity?
Homework Answers
Add Answer to:
In a location where the speed of sound is 342 m/s, a 2 000-Hz
sound wave...
In a location where the speed of sound is 360 m/s, a 3700 Hz sound wave...
In a location where the speed of sound is 360 m/s, a 3700 Hz sound wave impinges on two slits 24.0 cm apart. (d) If the slit separation is 5.00 μm, what frequency of light gives the same first maximum angle?
In a location where the speed of sound is 336 m/s, a 2 000-Hz sound wave...
In a location where the speed of sound is 336 m/s, a 2 000-Hz sound wave impinges on two slits 28.5 cm apart. (a) At what angle is the first maximum of sound intensity located?
The headlights of a car are 1.7 m apart. What is the maximum distance (in km)...
The headlights of a car are 1.7 m apart. What is the maximum distance (in km) at which the eye can resolve these two headlights? Take the pupil diameter to be 0.39 cm. (Assume the average wavelength of visible light is 555 nm.) km What is the wavelength of light in nm falling on double slits separated by 1.95 µm if the third-order maximum is at an angle of 55.0°? nm ) How wide in m is a single slit...
Monochromatic light from a helium-neon laser of wavelength 632.8 nm is incident normally on a pair...
Monochromatic light from a helium-neon laser of wavelength 632.8 nm is incident normally on a pair of parallel slits separated by 0.25 mm. If the laser is replaced by the microwave transmitter in your experimental setup transmitting 3 cm waves, what slit separation will be needed to maintain the same angle for the first bright fringe? Give the number only with 2 significant digits after the decimal point, assuming units are in meters.
A sound wave caused by a piano has a frequency of 678 Hz, and the speed...
A sound wave caused by a piano has a frequency of 678 Hz, and the speed in air is 330 m/s. (a) What is the wavelength of this wave? (b) At any given point in space, how long does it take for the air to go from maximally compressed to maximally expanded? (c) For two points 72.5 cm apart, what is the phase difference of the wave between these points?
A)Diffraction also occurs with sound waves. Consider 1300 Hz sound waves diffracted by a door that...
A)Diffraction also occurs with sound waves. Consider 1300 Hz sound waves diffracted by a door that is 85cm wide. What is the angle between the two first-order diffraction minima? B)What width single slit will produce first-order diffraction minima at angles of ±21 ∘ from the central maximum with 690 nm light?
3) Light of intensity 122 W/m strikes a vertical polarizer (S, in the diagram below). The...
3) Light of intensity 122 W/m strikes a vertical polarizer (S, in the diagram below). The light passes through the polarizer and then strikes a second polarizer that is turned an angle of 35° relative to the first polarizer. The light passes through the second polarizer and strikes a third polarizer that is perpendicular to the first polarizer. Determine the intensities of light S, and S, between the polarizers and the intensity Se after the light has passed through all...
QUESTION Which of the following make the separation between fringes greater in the two slit interference...
QUESTION Which of the following make the separation between fringes greater in the two slit interference experiment? (Select all that apply □ wider slits Smaller separation of the two slits Larger separation of the two slits Narrower slits PRACTICE IT Use the worked example above to help you solve this problem. A screen is separated from a double-slit source by 1.28 m. The distance between the two slits is 0.0296 mm. The second-order bright fringe (m = 2) is measured...
High-frequency sound waves exhibit less diffraction than low-frequency sound waves do. However, even high frequency sound...
High-frequency sound waves exhibit less diffraction than low-frequency sound waves do. However, even high frequency sound waves exhibit much more diffraction under normal circumstances than do light waves that pass through the same opening. The highest frequency that a healthy ear can typically hear is 2.0 × 104 Hz. Assume that a sound wave with this frequency travels at 342 m/s and passes through a doorway that has a width of 1.2 m. (a) Determine the angle that locates the...
Maxwell's equations can be used to show that electromagnetic waves can propagate through space (a) Describe the key aspects of an electromagnetic wave. Your description should mention the electri...
Maxwell's equations can be used to show that electromagnetic waves can propagate through space (a) Describe the key aspects of an electromagnetic wave. Your description should mention the electric and magnetic fields, direction of propagation, and speed. A diagram would be useful in explaining these concepts (b) At some point in space, a sinusoidal electromagnetic wave has an intensity of 2.5 Wm2 Calculate the amplitudes of the electric field and the magnetic field at this point. Ensure that you include...
3) Light of intensity 122 W/m strikes a vertical polarizer (S, in the diagram below). The light passes through the polarizer and then strikes a second polarizer that is turned an angle of 35° relative to the first polarizer. The light passes through the second polarizer and strikes a third polarizer that is perpendicular to the first polarizer. Determine the intensities of light S, and S, between the polarizers and the intensity Se after the light has passed through all...
QUESTION Which of the following make the separation between fringes greater in the two slit interference experiment? (Select all that apply □ wider slits Smaller separation of the two slits Larger separation of the two slits Narrower slits PRACTICE IT Use the worked example above to help you solve this problem. A screen is separated from a double-slit source by 1.28 m. The distance between the two slits is 0.0296 mm. The second-order bright fringe (m = 2) is measured...
Maxwell's equations can be used to show that electromagnetic waves can propagate through space (a) Describe the key aspects of an electromagnetic wave. Your description should mention the electric and magnetic fields, direction of propagation, and speed. A diagram would be useful in explaining these concepts (b) At some point in space, a sinusoidal electromagnetic wave has an intensity of 2.5 Wm2 Calculate the amplitudes of the electric field and the magnetic field at this point. Ensure that you include...
