In a SERIES Circuit of N Resistors, where Each Resistor has a value of R ,...
- In a SERIES Circuit of N Resistors, where Each Resistor has a value of R , the Equivalent Resistance, Req, is:
- Req = R/N
- Req = R*N
- Req = R*N2
- Req = R+N
Homework Answers
For given problem.

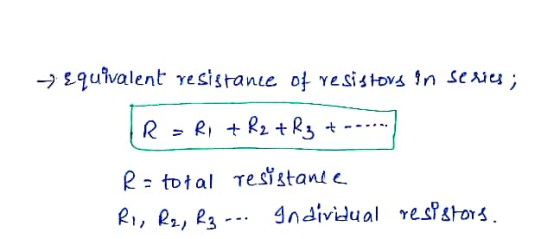

Req = R + R +R .........N times
Req = N*R option b is correct
