A circular loop of wire 50 mm in radius carries a current of 130 A. Find...

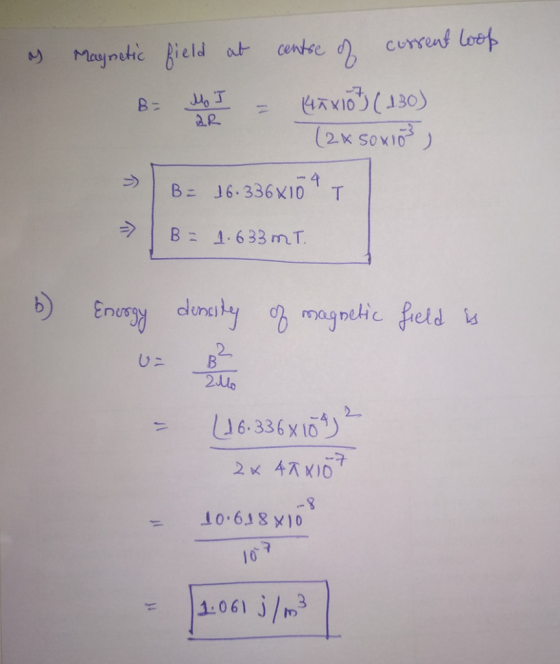

A circular loop of wire 50 mm in radius carries a current of 130 A. Find the (a) magnetic field strength and (b) energy density at the center of the loop.
Homework Answers
Add Answer to:
A circular loop of wire 50 mm in radius carries a current of 130
A. Find...
Chapter 30, Problem 066 A circular loop of wire 82 mm in radius carries a current...
Chapter 30, Problem 066 A circular loop of wire 82 mm in radius carries a current of 115 A. Find the (a) magnetic field strength and (b) energy density at the center of the loop. (a) Number Units (b) Number Units
Chapter 30, Problem 066 A circular loop of wire 78 mm in radius carries a current...
Chapter 30, Problem 066 A circular loop of wire 78 mm in radius carries a current of 114 A. Find the (a) magnetic field strength and (b) energy density at the center of the loop. (a) Number Units (b) Number Units
There is a circular ring of wire. It has a radius α that carries a current/in a counter clockwise...
There is a circular ring of wire. It has a radius α that carries a current/in a counter clockwise direction. Part A) Reduce equation 10 to find the magnetic field at the center of the loop. Derive this answer from Ampère's Law. Mol R2 10 Part B) Now let's assume it is an insulated circular disk with a uniform charge density σ is spinning at rate o. Utilize Ampère's Law to determine the magnetic field at the center.
There is...
There is a circular ring of wire. It has a radius α that carries a current in a counter clockwise...
There is a circular ring of wire. It has a radius α that carries a current in a counter clockwise direction L.P Part A) Reduce equation 10 to find the magnetic field at the center of the loop. Derive this answer from Ampère's Law Ho R2 401 (cos θ 10 B(z) Part B) Now let's assume it is an insulated circular disk with a uniform charge density σ is spinning at rate ω. Utilize Ampère's Law to determine the magnetic...
4- A long straight wire carries a current of l,-20.0 A A circular loop of wire...
4- A long straight wire carries a current of l,-20.0 A A circular loop of wire lies immediately to the right of the wire. The loop has a radius of 0.01 m and carries a current of -150 A.Assuming the thickness of the wire is negligible find the magnitude and direction of the loop. net magnetic field at the center of the
A circular loop of wire having a radius of 9.05 cm carries a current of 0.288...
A circular loop of wire having a radius of 9.05 cm carries a current of 0.288 A. A vector of unit length and parallel to the dipole moment of the loop is given by 0.60i – 0.80j. If the loop is located in a uniform magnetic field given by B = (0.522 T) j + (0.386 T)k , find (a) the x-component, (b) the y-component, and (c) the z-component of the torque on the loop and (d) the magnetic potential...
A circular loop of wire having a radius of 8.83 cm carries a current of 0.234...
A circular loop of wire having a radius of 8.83 cm carries a current of 0.234 A. A vector of unit length and parallel to the dipole moment of the loop is given by 0.60î – 0.80ĵ. If the loop is located in a uniform magnetic field given by B→ = (0.405 T)î + (0.659 T)k̂, find (a) the x-component, (b) the y-component, and (c) the z-component of the torque on the loop and (d) the magnetic potential energy of...
A circular loop of wire having a radius of 5.94 cm carries a current of 0.280...
A circular loop of wire having a radius of 5.94 cm carries a current of 0.280 A. A vector of unit length and parallel to the dipole moment of the loop is given by 0.60i – 0.80j . If the loop is located in a uniform magnetic field given by Upper B = (0.715 T) i + (0.731 T) k find (a) the x-component, (b) the y-component, and (c) the z-component of the torque on the loop and (d) the...
A circular loop of wire having a radius of 5.13 cm carries a current of 0.233...
A circular loop of wire having a radius of 5.13 cm carries a current of 0.233 A. A vector of unit length and parallel to the dipole moment of the loop is given by 0.60 i - 0.80 i. If the loop is located in a uniform magnetic field given by B = (0.990 T)/+ (0.626 T) , find (a) the x-component, (b) the y-component, and (c) the z-component of the torque on the loop and (d) the magnetic potential...
A circular loop of wire of radius R carries a current I in a region where...
A circular loop of wire of radius R carries a current I in a region where a uniform magnetic field of magnitude B0 is present. (a) If the magnetic dipole moment of the loop makes an angle θ < π/2 with the magnetic field, do a drawing that includes the loop of current, its magnetic dipole moment, the magnetic field, and the direction of the torque experienced by the loop. Make sure to indicate the current i and the angle...
Chapter 30, Problem 066 A circular loop of wire 82 mm in radius carries a current of 115 A. Find the (a) magnetic field strength and (b) energy density at the center of the loop. (a) Number Units (b) Number Units
Chapter 30, Problem 066 A circular loop of wire 78 mm in radius carries a current of 114 A. Find the (a) magnetic field strength and (b) energy density at the center of the loop. (a) Number Units (b) Number Units
There is a circular ring of wire. It has a radius α that carries a current/in a counter clockwise direction. Part A) Reduce equation 10 to find the magnetic field at the center of the loop. Derive this answer from Ampère's Law. Mol R2 10 Part B) Now let's assume it is an insulated circular disk with a uniform charge density σ is spinning at rate o. Utilize Ampère's Law to determine the magnetic field at the center.
There is...
There is a circular ring of wire. It has a radius α that carries a current in a counter clockwise direction L.P Part A) Reduce equation 10 to find the magnetic field at the center of the loop. Derive this answer from Ampère's Law Ho R2 401 (cos θ 10 B(z) Part B) Now let's assume it is an insulated circular disk with a uniform charge density σ is spinning at rate ω. Utilize Ampère's Law to determine the magnetic...
4- A long straight wire carries a current of l,-20.0 A A circular loop of wire lies immediately to the right of the wire. The loop has a radius of 0.01 m and carries a current of -150 A.Assuming the thickness of the wire is negligible find the magnitude and direction of the loop. net magnetic field at the center of the
A circular loop of wire having a radius of 5.13 cm carries a current of 0.233 A. A vector of unit length and parallel to the dipole moment of the loop is given by 0.60 i - 0.80 i. If the loop is located in a uniform magnetic field given by B = (0.990 T)/+ (0.626 T) , find (a) the x-component, (b) the y-component, and (c) the z-component of the torque on the loop and (d) the magnetic potential...
