A multimeter in an RL circuit records an rms current of 0.400 A and a 55.0-Hz...

A multimeter in an RL circuit records an rms current of 0.400 A and a 55.0-Hz rms generator voltage of 103 V. A wattmeter shows that the average power delivered to the resistor is 14.0 W.

(a) Determine the impedance in the circuit.
Ω

(b) Determine the resistance, R.
Ω

(c) Determine the inductance, L.
H

science   Advanced-Physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

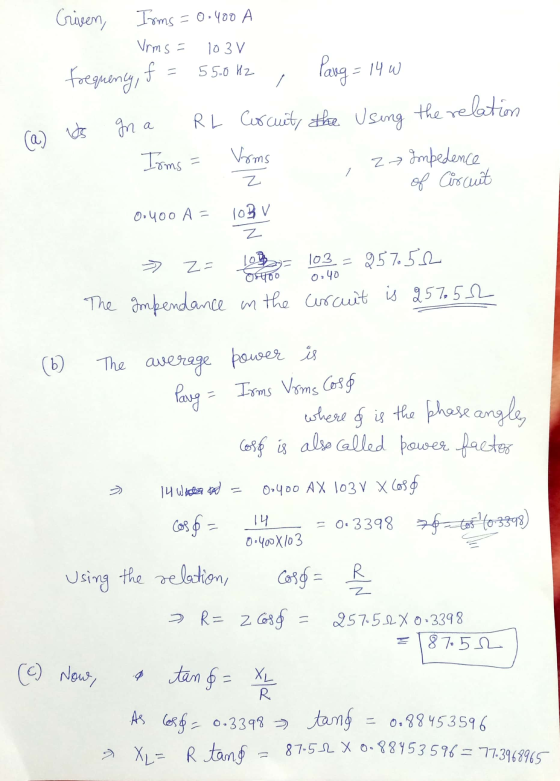

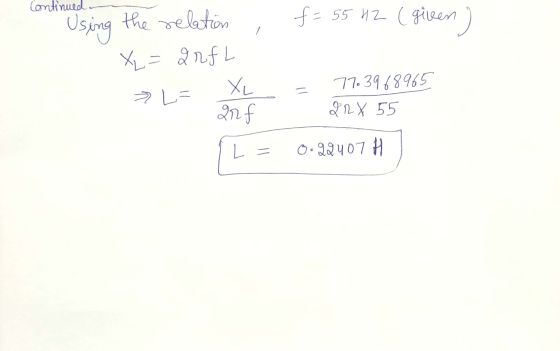

Answer #1

0 0
Add a comment
