Question

CSE/EEE230 Assignment4

Due Date

Thursday, January 24th, 5pm

Important: This is an individual assignment. Please do not collaborate.

It must be submitted on-line (Blackboard).

No late assignment will be accepted

Minimal Submitted Files

You are required to turn in the following source file:

assignment4.s

Objectives:

-write assembly language programs to:
            -perform decision making using branch instructions.
            -use syscall operations to display integers and strings on the console window
            -use syscall operations to read integers from the keyboard.

Assignment Description:

Write a MIPS assembly language program that reads in a sales type (1 or 2) and an amount of some sales.
If 0 or a negative integer is entered,
then the program should print out "No commission for the sales.\n", and exit.
Otherwise, if a sale type is 1, and the amount is less than 10000 then the commission number will be 2, otherwise, it will be 4.
If a sale type is not 1 (i.e., 2), and the amount is less than 10000 then the commission number will be 3, otherwise, it will be 5.
After getting a commission number, it should compute the total commission that is computed by
totalCommission = (totalSales/1000)*commissionNum
then it should print out the total commission, along with its sales amount.

Name your source code file Assignment4.s.

The following shows how it looks like in a C program:

    int salesType;

    int commissionNum;

    int totalSales;

    int totalCommission;



    printf("What is your sales type (1 or 2)?\n");



    //read an integer from a user input and store it in salesType

    scanf("%d", &salesType);



    printf("How much was the sales?\n");



    //read an integer from a user input and store it in totalSales

    scanf("%d", &totalSales);



    if (totalSales <= 0)

      {

         printf("No commission for the sales.\n");

      }

    else

      {

         if (salesType == 1)

          {

            if (totalSales < 10000)

              commissionNum = 2;

            else

              commissionNum = 4;

          }

         else

          {

            if (totalSales < 10000)

              commissionNum = 3;

            else

              commissionNum = 5;

          }



        //compute its total commission

        totalCommission = (totalSales/1000)*commissionNum;



        //print out the total commission along with its sales

        printf("Your total commission is %d for the sales of %d \n", totalCommission, totalSales);



     } //end of else



Here is a sample output (user input is in bold):

What is your sales type (1 or 2)?
1
How much was the sales?
12000
Your total commission is 48 for the sales of 12000

-----------------------------------------------

Here is another sample output (user input is in bold):

What is your sales type (1 or 2)?
2
How much was the sales?
1400
Your total commission is 3 for the sales of 1400

-----------------------------------------------

Here is another sample output (user input is in bold):

What is your sales type (1 or 2)?
1
How much was the sales?
0
No commission for the sales.

-----------------------------------------------

What to turn in:

-Upload your assignment4.s file through the assignment submission link in the Blackboard by the assignment deadline. You must have your name, email address, program description, and other information in the header block as it was described in the assignment 1, and your programs should be well commented.

Grading Criteria:

____/ 5    Documentation (header with your name, your information, and program description and comments within your code)

____/ 1     Indentation and spacing (easy to read)

____/ 6     Required functions and functionalities implemented

____/ 8     Produces correct results?

Total points: 20

Answer 1

`Hey,

Note: Brother in case of any queries, just comment in box I would be very happy to assist all your queries

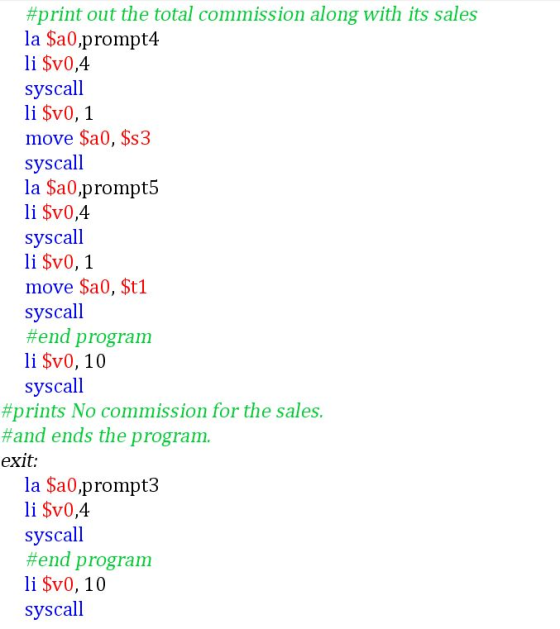

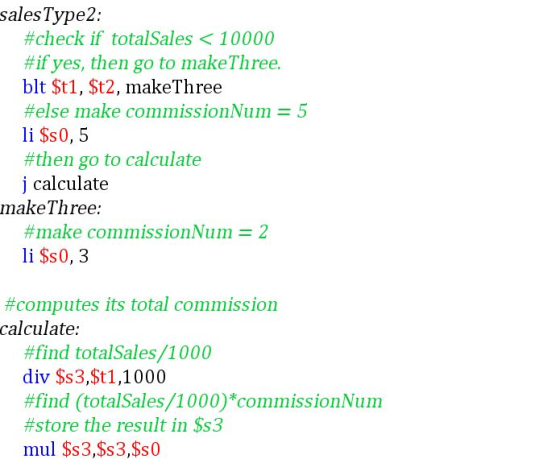

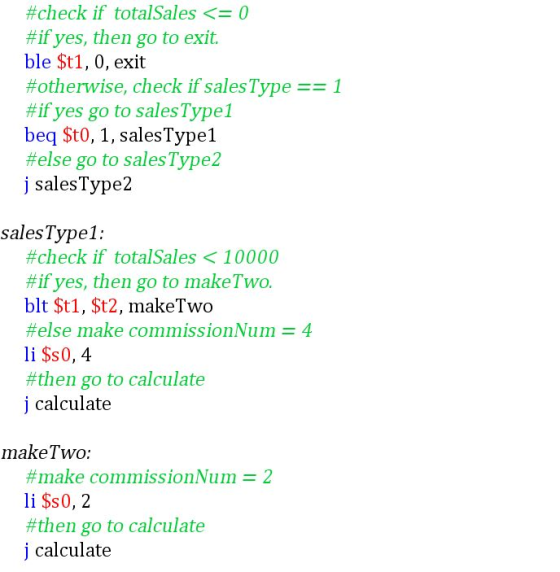

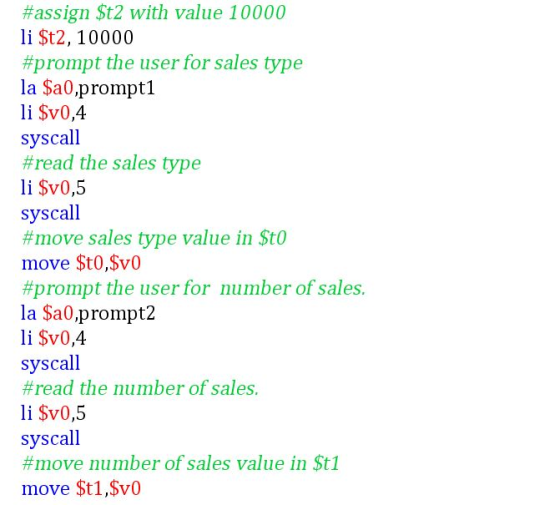

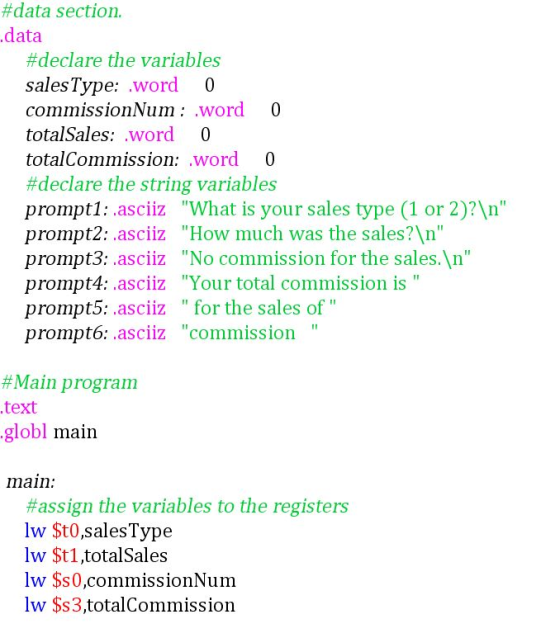

Program Screenshot:

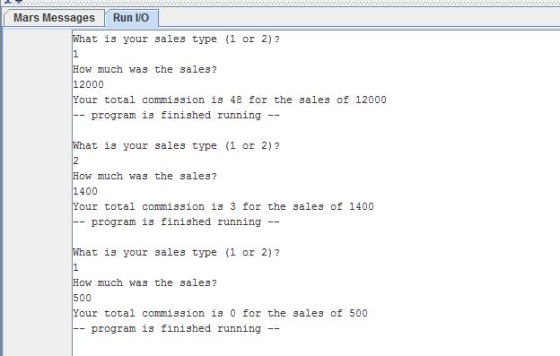

Sample output:

Code to copy:

#data section.
.data
   #declare the variables
   salesType: .word     0
   commissionNum : .word     0
   totalSales: .word     0
   totalCommission: .word     0
   #declare the string variables
   prompt1: .asciiz   "What is your sales type (1 or 2)? "
   prompt2: .asciiz   "How much was the sales? "
   prompt3: .asciiz   "No commission for the sales. "
   prompt4: .asciiz   "Your total commission is "
   prompt5: .asciiz   " for the sales of "
   prompt6: .asciiz   "commission   "

#Main program
.text
.globl main

main:
    #assign the variables to the registers
    lw $t0,salesType
   lw $t1,totalSales
   lw $s0,commissionNum
   lw $s3,totalCommission

   #assign $t2 with value 10000
   li $t2, 10000
    #prompt the user for sales type
   la $a0,prompt1
   li $v0,4
   syscall
   #read the sales type
   li $v0,5
   syscall
   #move sales type value in $t0
   move $t0,$v0
   #prompt the user for number of sales.
   la $a0,prompt2
   li $v0,4
   syscall
   #read the number of sales.
   li $v0,5
   syscall
   #move number of sales value in $t1
   move $t1,$v0
   #check if totalSales <= 0
   #if yes, then go to exit.
   ble $t1, 0, exit
   #otherwise, check if salesType == 1
   #if yes go to salesType1
   beq $t0, 1, salesType1
   #else go to salesType2
   j salesType2

salesType1:
   #check if totalSales < 10000
   #if yes, then go to makeTwo.
   blt $t1, $t2, makeTwo
   #else make commissionNum = 4
   li $s0, 4
   #then go to calculate
   j calculate

makeTwo:
   #make commissionNum = 2
   li $s0, 2
   #then go to calculate
   j calculate

salesType2:
   #check if totalSales < 10000
   #if yes, then go to makeThree.
   blt $t1, $t2, makeThree
   #else make commissionNum = 5
   li $s0, 5
   #then go to calculate
   j calculate
makeThree:
   #make commissionNum = 2
   li $s0, 3

#computes its total commission
calculate:
   #find totalSales/1000
   div $s3,$t1,1000
   #find (totalSales/1000)*commissionNum
   #store the result in $s3
   mul $s3,$s3,$s0
   #print out the total commission along with its sales
   la $a0,prompt4
   li $v0,4
   syscall
   li $v0, 1
   move $a0, $s3
   syscall
   la $a0,prompt5
   li $v0,4
   syscall
   li $v0, 1
   move $a0, $t1
   syscall
   #end program
   li $v0, 10
   syscall
#prints No commission for the sales.
#and ends the program.
exit:
   la $a0,prompt3
   li $v0,4
   syscall
   #end program
   li $v0, 10
   syscall

Kindly revert for any queries

Thanks.
