Starting from (p0 , V0), the gas is compressed at constant temperature until the volume decreases...
-

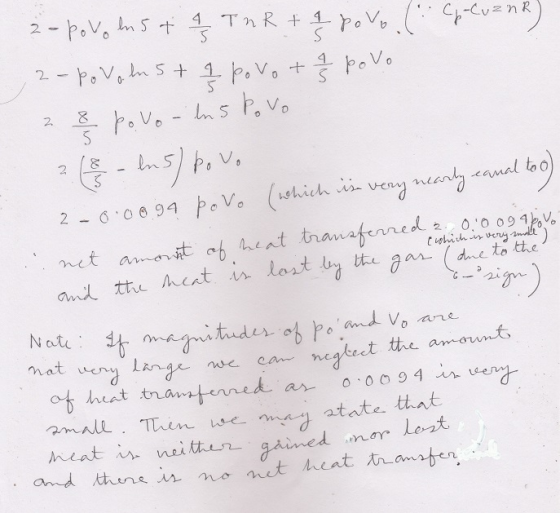

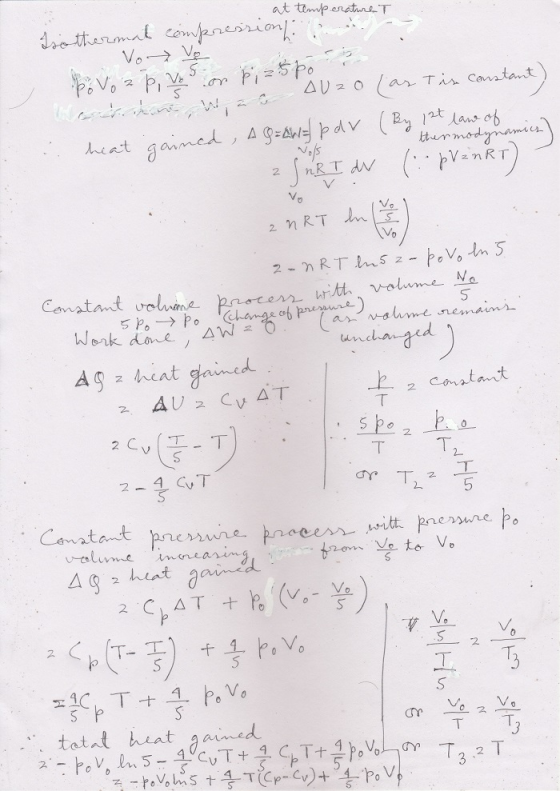

Starting from (p0 , V0), the gas is compressed at constant temperature until the volume decreases by a factor of five, and returns to (p0 , V0) by undergoing a constant-volume process followed by a constant-pressure process. What is the net amount of heat trans- ferred during this cycle? Does the gas gain or lose this heat?
Homework Answers
Add Answer to:
Starting from (p0 , V0), the gas is
compressed at constant temperature until the volume decreases...
The figure shows a Carnot cycle. Starting from (a), the gas is compressed at constant temperature...
The figure shows a Carnot cycle. Starting from (a), the gas is compressed at constant temperature to (b), is compressed adiabatically to (c), is expanded at constant temperature to (d), and expanded adiabatically back to (a). The engine works between the temperatures Tc = 293 K and Th=430 K. The engine starts at (a) with a volume of 2.7 Land atmospheric pressure, 1.01 X 105 Pa. Assume this is a diatomic ideal gas (air, to a good approximation). What is...
explain please thermodinamics Processes A piston with volume V0 = 0.20 L contains n = 0.020...
explain please thermodinamics Processes A piston with volume V0 = 0.20 L contains n = 0.020 mol of ideal gas with gamma factor γ = 1.4. The gas is allowed to expand to a volume of V = 0.80 L. Compute the work done by the gas, the heat added to the gas and the change in the internal energy of the gas for each of the following conditions. (a) The pressure is held constant at P0 = 150 kPa....
Part C The pressure, temperature and volume of a system change differently during the process of...
Part C The pressure, temperature and volume of a system change differently during the process of isothermal expansion. Indicate whether each quantity increases (I), remains constant (C), or decreases (D). Your answers should describe the changes of pressure, temperature, and volume (in that order). Separate your answers with commas (e.g., I,C,D means pressure increases, temperature remains constant, and volume decreases). Part D What is the work W done by the gas as it expands isothermally from V0 to fvV0? Express...
A gas is compressed by an adiabatic process that decreases its volume by a factor of...
A gas is compressed by an adiabatic process that decreases its volume by a factor of 2. In this process, the pressure In this process, the pressure a) increases by a factor of more than 2. b) increases by a factor of 2. c) does not change. d) increases by a factor of less than 2.
A container of gas at 4 atm pressure and 121 ∘C is compressed at constant temperature...
A container of gas at 4 atm pressure and 121 ∘C is compressed at constant temperature until the volume is halved. It is then further compressed at constant pressure until the volume is halved again. 1-What is the final pressure of the gas? 2-What is the final temperature of the gas?
A monatomic ideal gas is taken through a closed cycle. Starting from state 1 with pressure...
A monatomic ideal gas is taken through a closed cycle. Starting from state 1 with pressure P1 and volume V1 the gas expands isothermally (at constant temperature) to volume V2 = 2V1. It is then compressed at constant pressure back to the original volume V1 and then heated at constant volume to return to the original pressure P1 . a) Find how much work is performed by this gas during each part of this cycle. b) Find how much heat...
A monoatomic ideal gas is taken through the cycle A→B→C→A shown in the figure. Express all the answers below in terms of p0 and V0.
A monoatomic ideal gas is taken through the cycle A→B→C→A shown in the figure. Express all the answers below in terms of p0 and V0.Part (a) Find the work WA→B done by the gas during process A →B.Part (b) Find the heat QA→B flowing into the gas during the process A →B.Part (c) Find the work WB→C done by the gas during the process B → C.Part (d) Find the heat QB→C flowing into the gas during the process B-C. Part (e) Find...
The gas with an initial volume of 24.0 L at a pressure of 565 mmHg is compressed until the volume is 16.0 L
1. The volume of a gas with a pressure of 1.2 atm increases from 1.0 L to 4.0 L. What is the final pressure of the gas, assuming constant temperature?2. The gas with an initial volume of 24.0 L at a pressure of 565 mmHg is compressed until the volume is 16.0 L. What is the final pressure of the gas, assuming the temperature does not change?
Consider a monoatomic ideal gas undergoing the following cycle: starting point (a), pressure increases at a...
Consider a monoatomic ideal gas undergoing the following cycle: starting point (a), pressure increases at a constant volume reaching point (b), then the gas expands adiabatically until pressure reaches the initial value (point c), and then the gas is compressed at a constant pressure until the volume reaches the initial value back to point (a). The amount of gas is 1 mole. Monoatomic gas means it has only 3 degrees of freedom and the adiabatic constant gamma is 5/3. Sketch...
In an Otto cycle air is compressed from an initial pressure 120 kPa and temperature 370...
In an Otto cycle air is compressed from an initial pressure 120 kPa and temperature 370 T (K). The cycle has compression ratio of 10. In the constant volume heat addition process 1000 kJ/kg heat is added into the air. Considering variation on the specific heat of air with temperature, determine, (a) the pressure and temperature at the end of heat addition process (show the points on P-v diagram) (b) the network output (c) the thermal efficiency (d) the mean...
The figure shows a Carnot cycle. Starting from (a), the gas is compressed at constant temperature to (b), is compressed adiabatically to (c), is expanded at constant temperature to (d), and expanded adiabatically back to (a). The engine works between the temperatures Tc = 293 K and Th=430 K. The engine starts at (a) with a volume of 2.7 Land atmospheric pressure, 1.01 X 105 Pa. Assume this is a diatomic ideal gas (air, to a good approximation). What is...
