a. It is said that in B-trees with realistically large minimum degrees, almost all keys are...
Homework Answers
a)
If minimum degree is large and each node have maximum number of nodes, then the B-tree will have minimum height and almost all the keys are stored in the leaf nodes.
Assume height of the B-tree is h and each node in the B-tree is full. Then the total number of keys in the tree , n= (2t)h+1-1.
The number of keys at the depth h or leaves in the B-tree= [(2t)h+1-1]-[ (2t)h-1]
The ratio between total number of keys and the number of leaves( or percentage of leaves in the total number of keys)
= [(2t)h+1-1]-[ (2t)h-1] / (2t)h+1-1 ≈ 1-1/2t= (2t-1)/2t > 99%
Therefore, almost keys are stored in the leaves.
For suppose , t=100 then (2t-1)/2t =200-1/200=199/200= 0.995 or 99.5%.
Thus, if t=100, 99.5% of keys will be stored in the leaves.
For suppose , t=200 then (2t-1)/2t =400-1/400=399/400= 0.9975 or 99.75%.
Thus, if t=200, 99.75% of keys will be stored in the leaves.
b)

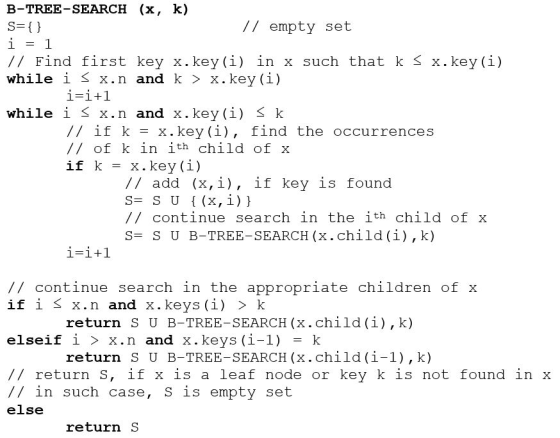

The above modified B-TREE-SEARCH takes a root node and a key k to be searched as input and returns the all occurrences of k in the tree pointed to by x.
Add Answer to:
a. It is said that in B-trees with realistically large minimum
degrees, almost all keys are...
It is said that in B-trees with realistically large minimum degrees, almost all keys are stored...
It is said that in B-trees with realistically large minimum degrees, almost all keys are stored in the leaf nodes. Justify this statement mathematically. Numerically demonstrate your mathematical justification with examples of t = 100 and 200.
