2. The following data represent samples that were taken on 10 separate days. Each day has...
2. The following data represent samples that were taken on 10 separate days. Each day has a varying sample size and the number of defects for the items sampled is listed. We want to see if this process is consistent and in control.
|
Day |
Sample Size |
Defects |
|
1 |
100 |
3 |
|
2 |
110 |
4 |
|
3 |
195 |
8 |
|
4 |
190 |
5 |
|
5 |
245 |
9 |
|
6 |
250 |
7 |
|
7 |
100 |
15 |
|
8 |
170 |
10 |
|
9 |
250 |
10 |
|
10 |
230 |
12 |

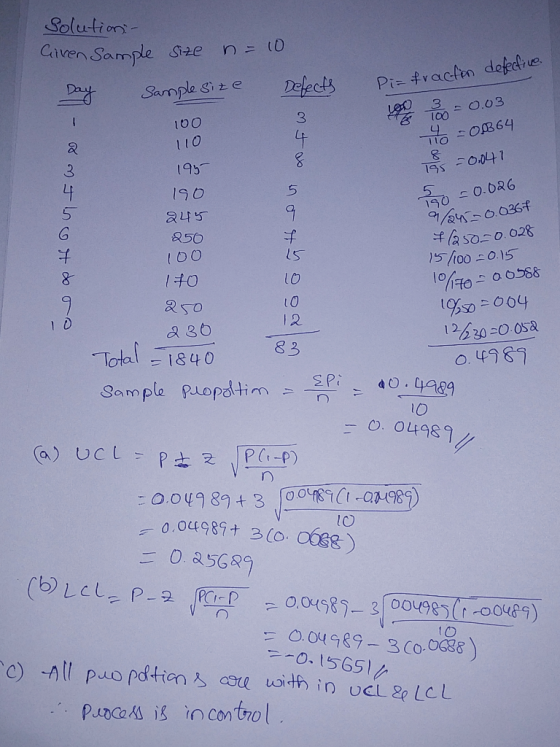

a. Find the UCL.
b. Find the LCL.
c. Is the process in control? Why/why not?
