A three-phase transmission line has a flat horizontal spacing with 1 m between adjacent conductors. Find...
-

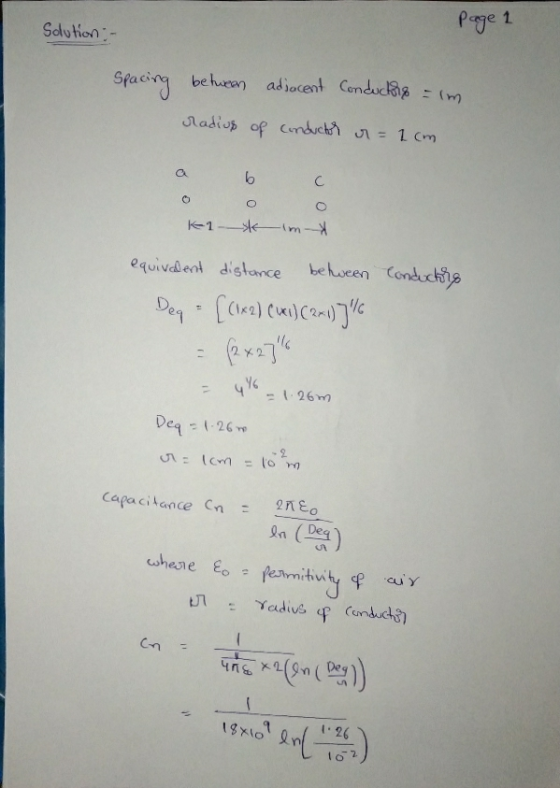

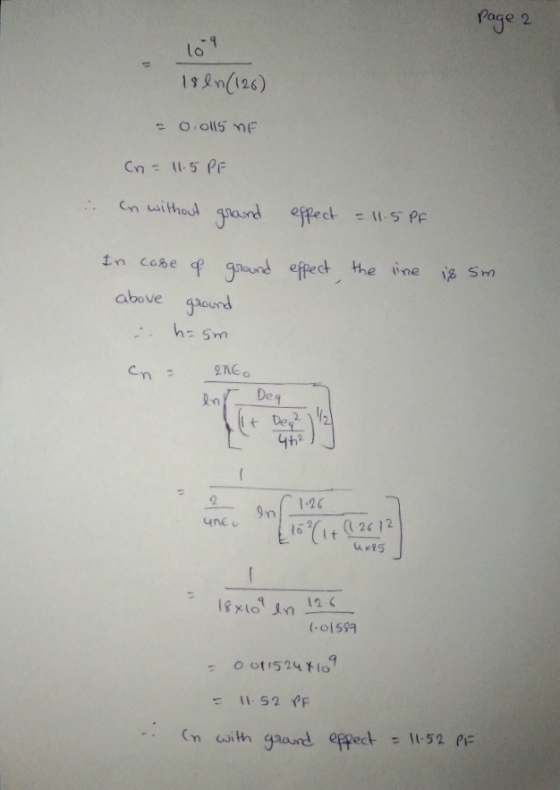

A three-phase transmission line has a flat horizontal spacing with 1 m between adjacent conductors. Find the capacitance of phase to neutral (F/m). The radius of each conductor is 1 cm. Consider the effect of the ground, when the line is 5m above ground.
Homework Answers
Add Answer to:
A three-phase transmission line has a flat horizontal spacing
with 1 m between adjacent conductors. Find...
Problem 4 (10 points) A three-phase, 60 Hz, completely transposed overhead transmission line has one Redwing...
Problem 4 (10 points) A three-phase, 60 Hz, completely transposed overhead transmission line has one Redwing ACSR conductor per phase. The conductors are oriented in a flat, horizontal configuration with 5 meter spacings between A and B, 5 meter spacing between B and C, and 10 meters between A and C. What is the inductive reactance for a 10 mile length of this transmission line? Problem 5 (10 points) a.) Calculate the capacitance-to-neutral (F/m) for the transmission line of problem...
Problem 2 (10 points) A bundled 60 Hz three-phase line has three conductors per bundle. The...
Problem 2 (10 points) A bundled 60 Hz three-phase line has three conductors per bundle. The conductors of the bundle have equal spacing of 45 cm. The spacing between bundle centers of the three phase line is 10,. 10 and 20 m. It is also known that the radius of each conductor is 0.015 m. The equation for calculating the per phase capacitance to neutral is given as: C.D In(?) DA sC Calculate: (1) the D, in the equation (5...
A 60-Hz three-phase, three-wire overhead line has solid cylindrical conductors arranged in the fo...
Please show all the steps
A 60-Hz three-phase, three-wire overhead line has solid cylindrical conductors arranged in the form of an equilateral triangle with 4 ft conductor spacing. Conductor diameter is 0.5 in a) Calculate the positive-sequence inductance in H/m and the positive-sequence inductive reactance in 2/km. b) Calculate the capacitance-to-neutral in F/m and the admittance-to-neutral in S/km for the three-phase line stated above. Neglect the effect of the earth plane. c) Rework b) if the phase spacing is i)...
a) A 3 phase transmission line is arranged in a horizontal plane with a spacing of...
a) A 3 phase transmission line is arranged in a horizontal plane with a spacing of 2.5m. Diameter of conductor is 2 cm. Find the Inductance/phase/m. b) If the same transmission line is rearranged at the edges of an equilateral triangle so that the inductance remains the same, find the sides of the equilateral triangle. c) If the length of transmission line for the above equilateral triangle arrangement is 120km, Voltage is 33kV at 50HZ. Find the charging current per...
O vertical bundle spacing conductor spacing O O O horizontal bundle spacing The figure above shows...
O vertical bundle spacing conductor spacing O O O horizontal bundle spacing The figure above shows the conductor configuration of three-phase overhead transmission line with each phase bundle consisting of three solid conductors. All conductors have identical radius of 5cm with 25cm spacing. The bundles are horizontally spaced at 13m and vertically spaced at 10m. Assume the GMR for one conductor is r'. Calculate the value of Deg in meters. Use 4 decimal places in your answer.
A three-phase, 50Hz, 50 km transmission line uses 3 conductor bundle conductors per phase. The diameter...
A three-phase, 50Hz, 50 km transmission line uses 3 conductor bundle conductors per phase. The diameter of each conductor in a bundle is 10 mm and the conductors are placed at the vertices of an equilateral triangle with a side length of 20 cm. The three phase bundles are horizontally placed with a distance between phase A and phase B as 1.2 m and phase B and phase C as 1m. The three phase lines are completely transposed. Calculate the...
A 3-phase, 60-Hz transmission line consisting of one ACSR Bluejay conductor per phase has a spacing...
A 3-phase, 60-Hz transmission line consisting of one ACSR Bluejay conductor per phase has a spacing of 9 m between conductors. The transmission line is 100 miles long and delivers 40 MW at 220 kV with a 0.9 pf lagging. Determine Voltage, current, and power factor at the sending end Voltage regulation and efficiency
4 A three-phase, 765-kV, 50-Hz transposed line is composed of four ACSR 1,510,500, 54/19 Parrot conductors per phas...
4 A three-phase, 765-kV, 50-Hz transposed line is composed of four ACSR 1,510,500, 54/19 Parrot conductors per phase with flat horizontal spacing of 16 m. The conductors have a diameter of 3.8252 cm and a GMR of 1.5453 cm. The bundle spacing is 40 cm. The line is Km long, and for the purpose of this problem, a lossless line is assumed (a) Determine the transmission line surge impedance Zc, phase constant p, wave surge impedance loading SIL, and the...
An open wire transmission line has a conductor diameter of 0.7 centimeter and a spacing between...
An open wire transmission line has a conductor diameter of 0.7 centimeter and a spacing between conductors of 10 centimeters. What is the characteristic impedance? Zo = 276 log (b / a) where "b" is the spacing and "a" is the radius of one conductor.
A 60-Hz three-phase, three-wire overhead line has solid cylindrical conductors arranged in the form of an...
A 60-Hz three-phase, three-wire overhead line has solid cylindrical conductors arranged in the form of an equilateral triangle with 1 m conductor spacing. Conductor diameter is 1.0 cm. Calculate the line inductance in H/m per conductor and the line inductive reactance in Ω/km per conductor.
Problem 4 (10 points) A three-phase, 60 Hz, completely transposed overhead transmission line has one Redwing ACSR conductor per phase. The conductors are oriented in a flat, horizontal configuration with 5 meter spacings between A and B, 5 meter spacing between B and C, and 10 meters between A and C. What is the inductive reactance for a 10 mile length of this transmission line? Problem 5 (10 points) a.) Calculate the capacitance-to-neutral (F/m) for the transmission line of problem...
Problem 2 (10 points) A bundled 60 Hz three-phase line has three conductors per bundle. The conductors of the bundle have equal spacing of 45 cm. The spacing between bundle centers of the three phase line is 10,. 10 and 20 m. It is also known that the radius of each conductor is 0.015 m. The equation for calculating the per phase capacitance to neutral is given as: C.D In(?) DA sC Calculate: (1) the D, in the equation (5...
Please show all the steps
A 60-Hz three-phase, three-wire overhead line has solid cylindrical conductors arranged in the form of an equilateral triangle with 4 ft conductor spacing. Conductor diameter is 0.5 in a) Calculate the positive-sequence inductance in H/m and the positive-sequence inductive reactance in 2/km. b) Calculate the capacitance-to-neutral in F/m and the admittance-to-neutral in S/km for the three-phase line stated above. Neglect the effect of the earth plane. c) Rework b) if the phase spacing is i)...
a) A 3 phase transmission line is arranged in a horizontal plane with a spacing of 2.5m. Diameter of conductor is 2 cm. Find the Inductance/phase/m. b) If the same transmission line is rearranged at the edges of an equilateral triangle so that the inductance remains the same, find the sides of the equilateral triangle. c) If the length of transmission line for the above equilateral triangle arrangement is 120km, Voltage is 33kV at 50HZ. Find the charging current per...
O vertical bundle spacing conductor spacing O O O horizontal bundle spacing The figure above shows the conductor configuration of three-phase overhead transmission line with each phase bundle consisting of three solid conductors. All conductors have identical radius of 5cm with 25cm spacing. The bundles are horizontally spaced at 13m and vertically spaced at 10m. Assume the GMR for one conductor is r'. Calculate the value of Deg in meters. Use 4 decimal places in your answer.
A 3-phase, 60-Hz transmission line consisting of one ACSR Bluejay conductor per phase has a spacing of 9 m between conductors. The transmission line is 100 miles long and delivers 40 MW at 220 kV with a 0.9 pf lagging. Determine Voltage, current, and power factor at the sending end Voltage regulation and efficiency
4 A three-phase, 765-kV, 50-Hz transposed line is composed of four ACSR 1,510,500, 54/19 Parrot conductors per phase with flat horizontal spacing of 16 m. The conductors have a diameter of 3.8252 cm and a GMR of 1.5453 cm. The bundle spacing is 40 cm. The line is Km long, and for the purpose of this problem, a lossless line is assumed (a) Determine the transmission line surge impedance Zc, phase constant p, wave surge impedance loading SIL, and the...
