Consider an optical fiber that has a 200-μm core diameter and a 240-μm cladding diameter. (a)...

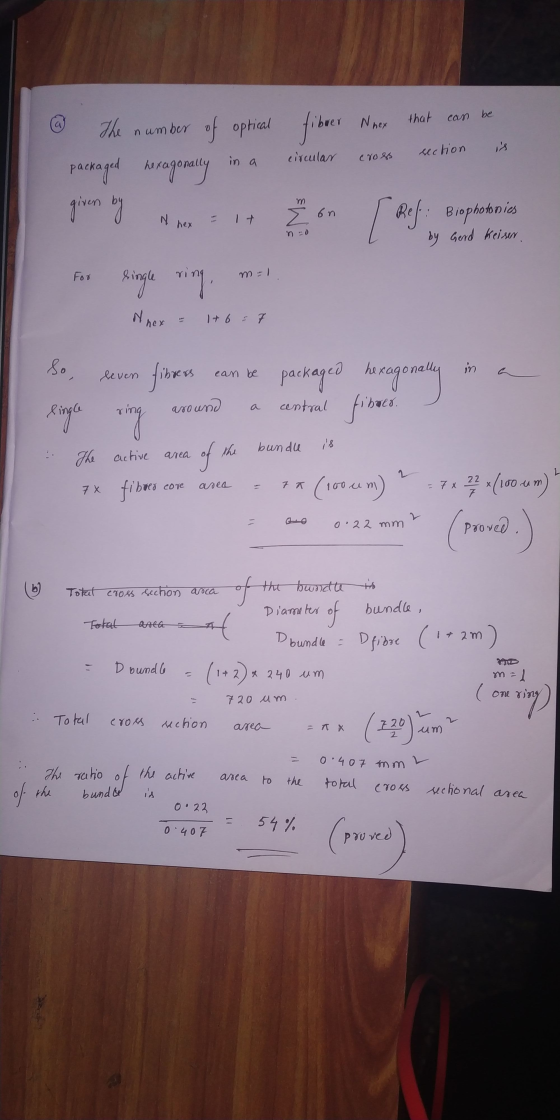

Consider an optical fiber that has a 200-μm core diameter and a 240-μm cladding diameter. (a) Show that the size of the active area in a bundle with one ring is 0.22 mm2. (b) Show that the ratio of the active area to the total cross sectional area of the bundle is 54 %.
Homework Answers
Add Answer to:
Consider an optical fiber that has a 200-μm core diameter and a
240-μm cladding diameter. (a)...
1. An optical fiber has a core diameter of 4 micro-meters and the cladding refractive index...
1. An optical fiber has a core diameter of 4 micro-meters and the cladding refractive index n-= 1.46. In order to have a single mode propagation wavelengths at 850nm and above what is the maximum core refractive index we should use?
An optical fiber has a core of dense flint, ni = 1.66, and a cladding of...
An optical fiber has a core of dense flint, ni = 1.66, and a cladding of crown glass, n2 = 1.52. What is the highest angular aperture (half angle of the cone of light entering the fiber, O max) for light that is transmitted through the fiber? Please also show the expression (in terms of ni and nz) of the “numerical aperture (NA)” of the fiber, which is defined as NA=sinmax: c Omar 90 - 0 Cladding:12 Core: ni
Optical fiber has a core with refractive index 1.5, a cladding with refractive index 1.46 and...
Optical fiber has a core with refractive index 1.5, a cladding with refractive index 1.46 and a buffer coating with refractive index 1.4. What is the angle of total internal reflection in this fiber, if light is propagating in the core?
For optical fiber, the refractive index of the cladding compared to that of the core
For optical fiber, the refractive index of the cladding compared to that of the core Select one a. is always smaller b. is always larger c. can be either bigger or smaller depending on specification
The core of an optical fiber has an index of refraction of 1.27 , while the...
The core of an optical fiber has an index of refraction of 1.27 , while the index of refraction of the cladding surrounding the core is 1.15. What is the critical angle for total internal reflection at the core‑cladding interface?
In the optical fiber below, the core has a refractive index equal to 1.5
In the optical fiber below, the core has a refractive index equal to 1.5 and a cladding of refractive index of 1.4. a) What is the speed of light inside the core? b) What is the critical angle at the core-cladding interface? c) What is the maximum angle "t" that the rays leaving the source of light should make with the axis of the fiber so that total internal reflections takes place at the core-cladding interface?
The core of an optical fiber has an index of refraction of 1.29, while the index...
The core of an optical fiber has an index of refraction of 1.29, while the index of refraction of the cladding surrounding the core is 1.17. What is the critical angle for total internal reflection at the core-cladding interface? critical angle:
6. An optical fiber has an acceptance angle of 10.95 degrees. What's the numerical aperture for...
6. An optical fiber has an acceptance angle of 10.95 degrees. What's the numerical aperture for this fiber? A. 0.16 B. 1.02 C. 0.27 D. 0.19 7. An optical fiber has a core refractive index of 1.495 and a cladding refractive index of 1.47. What's the acceptance angle for this fiber? A. 13.11° B. 0.272° C. 9.79° D. 15.80° 8. While traveling through a cable, a signal loses 18.7 percent of its original power. What's this loss expressed in dB?...
34C2 Optical fiber Eq. (34.9), (34.3) Cladding 112 Te 0; e Fiber core Telecom transmit signals...
34C2 Optical fiber Eq. (34.9), (34.3) Cladding 112 Te 0; e Fiber core Telecom transmit signals with optical fiber. When a laser beam is within the Acceptance Angle Oa, it can keep going inside the fiber by total internal reflection. The refractive indices are ni 1.41, n2 = 1.40. Find a) 0:0, b) 0 ().
Consider the interface between the core of a fiber and its cladding that have refractive indices...
Consider the interface between the core of a fiber and its cladding that have refractive indices of n1 and n2, respectively. (a) If n2 is smaller than n1 by 1 % and if n1 = 1.450, show that n2 = 1.435. (b) Show that the critical angle is φc = 81.9°.
1. An optical fiber has a core diameter of 4 micro-meters and the cladding refractive index n-= 1.46. In order to have a single mode propagation wavelengths at 850nm and above what is the maximum core refractive index we should use?
An optical fiber has a core of dense flint, ni = 1.66, and a cladding of crown glass, n2 = 1.52. What is the highest angular aperture (half angle of the cone of light entering the fiber, O max) for light that is transmitted through the fiber? Please also show the expression (in terms of ni and nz) of the “numerical aperture (NA)” of the fiber, which is defined as NA=sinmax: c Omar 90 - 0 Cladding:12 Core: ni
The core of an optical fiber has an index of refraction of 1.29, while the index of refraction of the cladding surrounding the core is 1.17. What is the critical angle for total internal reflection at the core-cladding interface? critical angle:
34C2 Optical fiber Eq. (34.9), (34.3) Cladding 112 Te 0; e Fiber core Telecom transmit signals with optical fiber. When a laser beam is within the Acceptance Angle Oa, it can keep going inside the fiber by total internal reflection. The refractive indices are ni 1.41, n2 = 1.40. Find a) 0:0, b) 0 ().
