Design the condenser of a steam power plant that has a thermal efficiency of 40 percent...

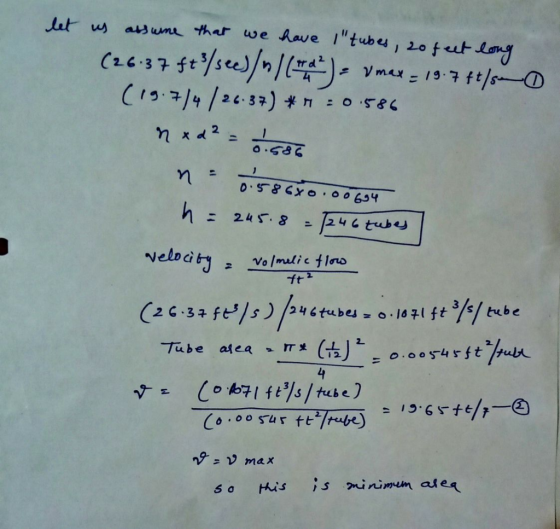

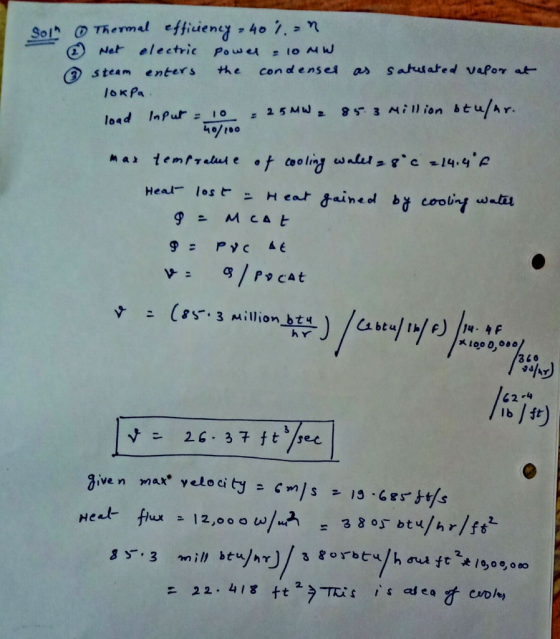

Design the condenser of a steam power plant that has a thermal efficiency of 40 percent and generates 10 MW of net electric power. Steam enters the condenser as saturated vapor at 10 kPa, and it is to be condensed outside horizontal tubes through which cooling water from a nearby river flows. The temperature rise of the cooling water is limited to 8°C, and the velocity of the cooling water in the pipes is limited to 6 m/s to keep the pressure drop at an acceptable level. From prior experience, the average heat flux based on the outer surface of the tubes can be taken to be 12,000 W/m2. Specify the pipe diameter, total pipe length, and the arrangement of the pipes to minimize the condenser volume.
Without using LMTD formula.
Homework Answers
Add Answer to:
Design the condenser of a steam power plant that has a thermal
efficiency of 40 percent...
Steam is to be condensed in the condenser of a steam power plant at a temperature...
Steam is to be condensed in the condenser of a steam power plant
at a temperature of 50C with cooling
water from a nearby lake, which enters the tubes of the condenser
at 18C at a rate of 101 kg/s and leaves
at 27C. Determine the rate of condensation of the steam in the
condenser.
Steam is to be condensed in the condenser of a steam power plant at a temperature of 50°C with cooling water from a nearby lake,...
3-40 In the condenser of a steam power plant the steam from the turbine enters the...
3-40 In the condenser of a steam power plant the steam from the turbine enters the condenser at 0.10 bar with a quality of 95 percent and leaves at the same pressure as a saturated liquid. The steam is condensed by transferring heat to a stream of cooling water which enters at 1.3 bars and 5°C and leaves the heat exchanger at 1.2 bars and 25°C·The environmental temperature is 5°C. Determine a. the change in stream availability (exergy) of the...
. A steam power plant that operates on Rankine cycle has a net power output of...
. A steam power plant that operates on Rankine cycle has a net power output of 45 MW. Steam enters the turbine at 7 MPa and 500o C and is cooled in the condenser at a pressure of 10 kPa by running cooling water from a sea through the tubes of the condenser at rate of 2000 kg/s. Show the cycle on T‐s diagram with respect to saturation line, and determine (a) the thermal efficiency of the cycle, (b) the...
PROBLEM 3 (45 points) The condenser of a large steam power plant is a heat exchanger...
PROBLEM 3 (45 points) The condenser of a large steam power plant is a heat exchanger in which steam is condensed to liquid water. Assume the condenser to be a parallel flow shell-and-tube heat exchanger consisting of a single shell and 1x10 tubes, each executing two passes. The inner diameter of tubes is D = 50 mm and its thickness is 5 mm (Do not ignore the thickness). The steam condenses on their outer surface. Thermal conductivity of the tube...
The condenser of a large steam power plant is a heat exchanger in which steam is...
The condenser of a large steam power plant is a heat exchanger in which steam is condensed to liquid water. Assume the condenser to be a shell-and-tube heat exchanger consisting of a single shell and 30,000 tubes, each executing two passes (see figure below). The tubes are of thin wall construction with D=25mm, and steam condenses on their outer surface with an associated convection coefficient ho=11,000W/ m K The heat transfer rate that must be effected by the heat exchanger...
Consider a steam power plant that operales on a simple ideal Rankine cycle and has a...
Consider a steam power plant that operales on a simple ideal Rankine cycle and has a net power output of 45 MW Steam enters the turbine at 7 MPa and 500 C and is cooled in the condenser at a pressure of 10 kPa by running cooling water from a lake through the tubes of the condenser at a rate of 2000 kg/s. Use T-s diagram with respect to saturation lines, and determine (a) the thermal eMooncy ofthe cycle (%)...
The condenser downstream of the turbine in a large Rankine cycle power plant is constructed of...
The condenser downstream of the turbine in a large Rankine cycle power plant is constructed of 30,000 25-mm tubes. The steam condenses at 50 ºC with a heat transfer coefficient of 9,000 W/m2 ·K on the outside the tubes. The cooling water enters the tube side of the condenser at 20 ºC at a flow rate of 17,000 kg/s. For a 1000 MW (net) power output and a cycle thermal efficiency of 42%, determine: a. the cooling rate required (in...
Problem 3 The condenser of a large power plant is to remove condensing at 30° C...
Problem 3 The condenser of a large power plant is to remove condensing at 30° C (hg-2430 kJ/ 500 MW of heat from steam kg). The cooling is to be accomplished by C and leaves w g eC) from a nearby river, which enters the tubes at diameter of 2 cm, and the overall heat transfer coefficient is 3500 W/m c. Determine the total length of the tubes required in the condenser heat exchanger is suitable for this task? es...
Tutorial Questions 1 1. Water is the working fluid in an ideal Rankine cycle. The condenser...
Tutorial Questions 1.1. Water is the working fluid in an ideal Rankine cycle. The condenser pressure is kPa, and saturated vapor enters the turbine at 10 MPa. Determine the heat transfer rates, in kJ per kg of steam flowing, for the working fluid passing through the boiler and condenser and calculate the thermal efficiency.2. Water is the working fluid in an ideal Rankine cycle. Saturated vapor enters the turbine at 16 MPa, and the condenser pressure is 8 kPa ....
A nuclear power plant generates 3000 MW of heat energy from nuclear reactions in the reactor's...
A nuclear power plant generates 3000 MW of heat energy from nuclear reactions in the reactor's core. This energy is used to boil water and produce high-pressure steam at 320 ∘C. The steam spins a turbine, which produces 1000 MW of electric power, then the steam is condensed and the water is cooled to 25∘C before starting the cycle again. Part A: What is the maximum possible thermal efficiency of the power plant? Part B: Cooling water from a river...
Steam is to be condensed in the condenser of a steam power plant
at a temperature of 50C with cooling
water from a nearby lake, which enters the tubes of the condenser
at 18C at a rate of 101 kg/s and leaves
at 27C. Determine the rate of condensation of the steam in the
condenser.
Steam is to be condensed in the condenser of a steam power plant at a temperature of 50°C with cooling water from a nearby lake,...
3-40 In the condenser of a steam power plant the steam from the turbine enters the condenser at 0.10 bar with a quality of 95 percent and leaves at the same pressure as a saturated liquid. The steam is condensed by transferring heat to a stream of cooling water which enters at 1.3 bars and 5°C and leaves the heat exchanger at 1.2 bars and 25°C·The environmental temperature is 5°C. Determine a. the change in stream availability (exergy) of the...
PROBLEM 3 (45 points) The condenser of a large steam power plant is a heat exchanger in which steam is condensed to liquid water. Assume the condenser to be a parallel flow shell-and-tube heat exchanger consisting of a single shell and 1x10 tubes, each executing two passes. The inner diameter of tubes is D = 50 mm and its thickness is 5 mm (Do not ignore the thickness). The steam condenses on their outer surface. Thermal conductivity of the tube...
The condenser of a large steam power plant is a heat exchanger in which steam is condensed to liquid water. Assume the condenser to be a shell-and-tube heat exchanger consisting of a single shell and 30,000 tubes, each executing two passes (see figure below). The tubes are of thin wall construction with D=25mm, and steam condenses on their outer surface with an associated convection coefficient ho=11,000W/ m K The heat transfer rate that must be effected by the heat exchanger...
Consider a steam power plant that operales on a simple ideal Rankine cycle and has a net power output of 45 MW Steam enters the turbine at 7 MPa and 500 C and is cooled in the condenser at a pressure of 10 kPa by running cooling water from a lake through the tubes of the condenser at a rate of 2000 kg/s. Use T-s diagram with respect to saturation lines, and determine (a) the thermal eMooncy ofthe cycle (%)...
Problem 3 The condenser of a large power plant is to remove condensing at 30° C (hg-2430 kJ/ 500 MW of heat from steam kg). The cooling is to be accomplished by C and leaves w g eC) from a nearby river, which enters the tubes at diameter of 2 cm, and the overall heat transfer coefficient is 3500 W/m c. Determine the total length of the tubes required in the condenser heat exchanger is suitable for this task? es...
