The capacitance in a series RCL circuit is C1 = 2.6 μF, and the corresponding resonance...

The capacitance in a series RCL circuit is C1 = 2.6 μF, and the corresponding resonance frequency is f01 = 7.3 kHz. The generator frequency is 5.60 kHz. What is the value of capacitance C2 that must be added to the circuit so that the circuit will have a resonant frequency that matches the generator frequency? Note that you must decide if C2 is added in series or in parallel with C1.

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

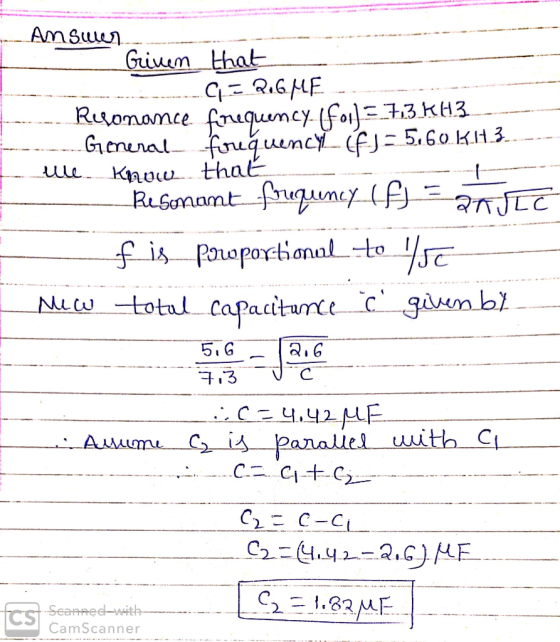

Answer #1

0 0
Add a comment
