Dr. Sheldon Cooper is the quality control engineer at a harmonic spring factory. He is tasked...

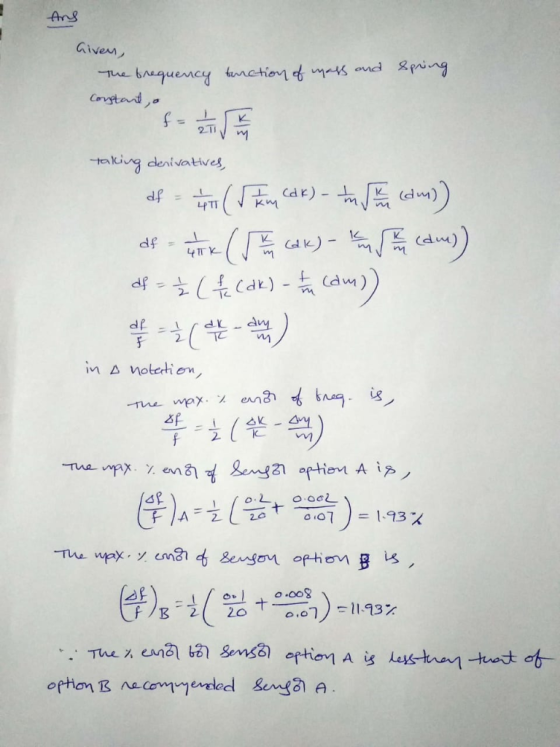

Dr. Sheldon Cooper is the quality control engineer at a harmonic spring factory. He is tasked with testing the natural frequency of a simple oscillating mass-spring system: f=1/2π √(k/m) where: f is the natural frequency in Hz k is the spring constant in N/m m is the mass in kg Dr. Cooper is trying to decide which set of sensors he should purchase. Sensor Option A Sensor Option B Mass Range: Accuracy: to 0.10 kg ± 2.0% Full Scale Range: Accuracy: 0.00 to 0.20 kg ± 4.0% of the reading Spring Constant Range: Accuracy: 0.0 to 25.0 N/m ± 0.2 N/m Range: Accuracy: to 40.0 N/m ± 0.1 N/m Assuming that the average device has a mass of 0.07 kg and a spring constant is 20 N/m. Which sensor option would you recommend to Sheldon? Justify your answer with appropriate calculations.
Homework Answers
Add Answer to:
