You have three 12 uF capacitors. A) Draw a diagram of an arrangement that would have...

Question

Question

You have three 12 uF capacitors.

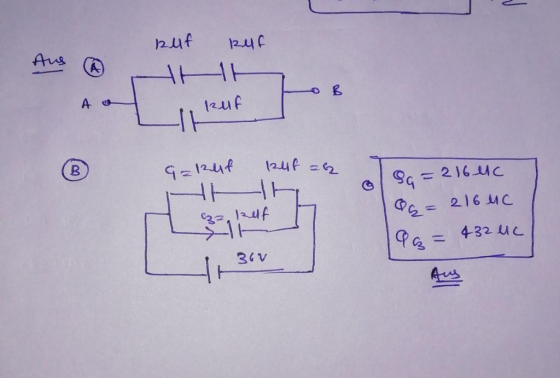

A) Draw a diagram of an arrangement that would have an equivalent capacitance of 18 uF.

B) If you attached that arrangement to a 36V battery, what would be the charge on each of the three capacitors?

science physics

Answer 1

Answer #1

Answer 2
