A standing wave is formed on a string that is 37 m long, has a mass...

Question

Question

A standing wave is formed on a string that is 37 m long, has a mass per unit length 0.00874 kg/m, and is stretched to a tension of 15 N.

1) Find the fundamental frequency. Answer in units of cycles/s.

2) Find the next frequency that could cause a standing wave pattern.

Answer in units of cycles/s.

science physics

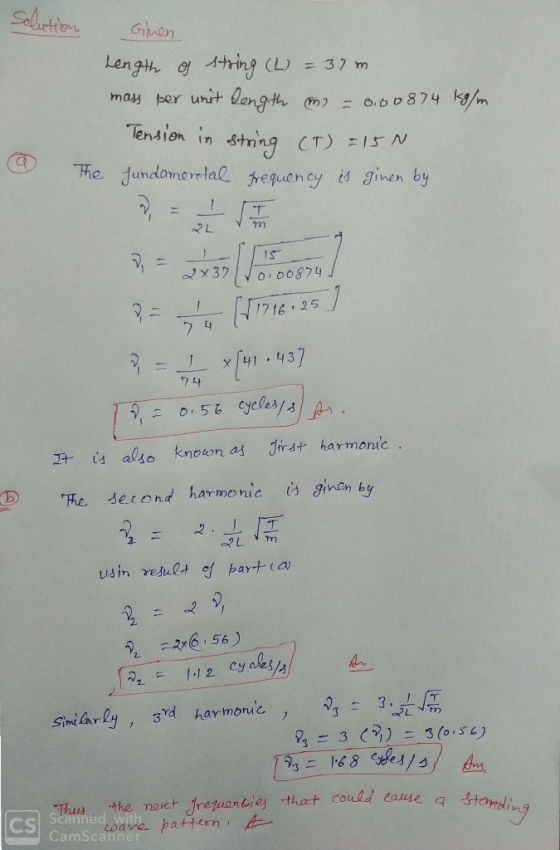

Answer 1

Answer #1

HI !any doubts leave a comment

.

THANKS

Answer 2
